HUMMER H2 (2007) – fuse box diagram

HUMMER H2 (2007) – fuse box diagram

Year of production: 2007

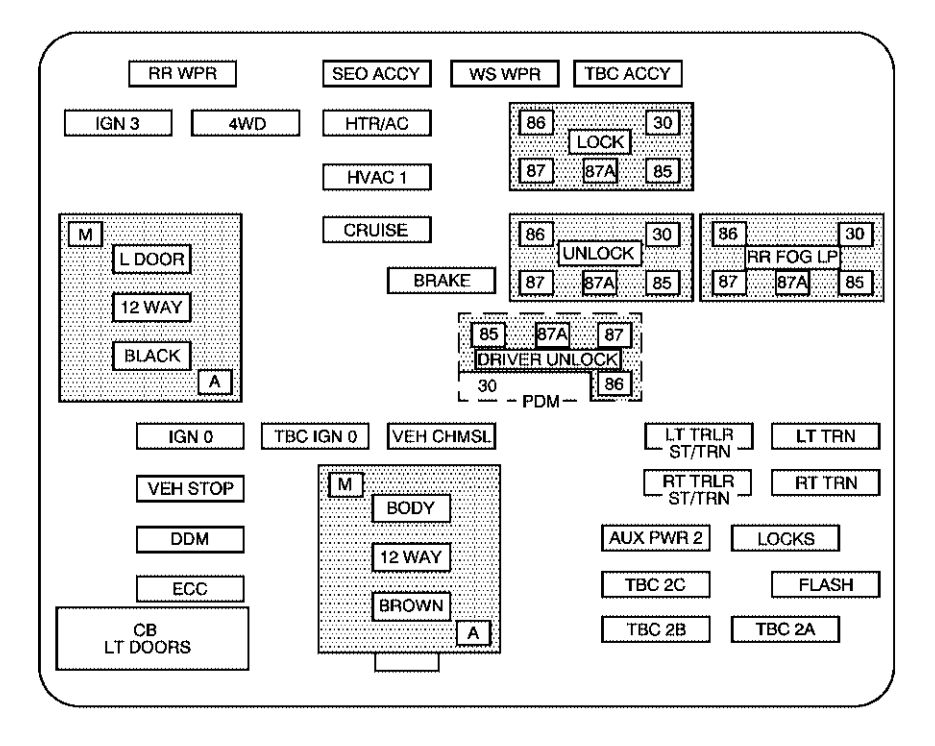

Instrument Panel Fuse Block

The fuse block access door is located on the driver’s side edge of the instrument panel.

Hummer H2 – fuse box – instrument panel
Hummer H2 – fuse box – instrument panel
Fuses Usage
RR Wiper Rear Window Wiper Switch
SEO ACCY Special Equipment Option Accessory
WS WPR Windshield Wipers
TBC ACCY Truck Body Controller Accessory
IGN 3 Rear Heated Seats Module
4WD Four-Wheel Drive Switch, Air Suspension Switch/Module
HTR A/C Not Used
LOCK Power Door Lock Relay (Lock Function)
HVAC 1 Inside Rearview Mirror, Climate Control System
L DOOR Driver’s Door Harness Connection
CRUISE Cruise Control
UNLOCK Power Door Lock Relay (Unlock Function)
RR FOG LP Not Used
BRAKE Brake Switch
DRIVER UNLOCK Power Door Lock Relay (Driver’s Door Unlock Function)
IGN 0 Brake Transmission Shift Interlock, Powertrain Control Module, Transmission
TBC IGN 0 Truck Body Controller
VEH CHMSL Vehicle and Trailer High Mounted Stoplamp
LT TRLR ST/TRN Left Turn Signal/Stop Trailer
LT TRN Left Turn Signals and Sidemarkers
VEH STOP Vehicle Stoplamps, Brake Module, Electronic Throttle Control Module
RT TRLR ST/TRN Right Turn Signal/Stop Trailer
RT TRN Right Turn Signals and Sidemarkers
BODY Harness Connector
DDM Driver Door Module
LOCKS Rear Doors and Liftgate Power Lock Relay Feed
ECC Liftgate
TBC 2C Truck Body Controller
FLASH Flasher Module
CB LT DOORS Left Rear Power Window Circuit Breaker and Driver Door Module
TBC 2B Truck Body Controller
TBC 2A Truck Body Controller



Circuit Breaker Usage
AUX PWR 2 DrivMidgate Controller (SUT Only)er Door Harness Connection

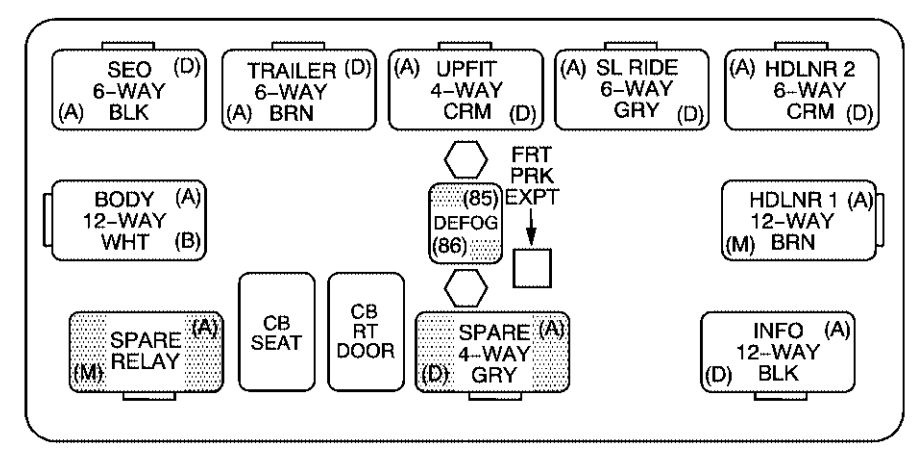

Center Instrument Panel Fuse Block

The center instrument panel utility block is located underneath the instrument panel, to the left of the steering column.

Hummer H2 – fuse box – center instrument panel
Device Usage
SEO Special Equipment Option
TRAILER Trailer Brake Wiring, Off-Road Lamps Harness Connector
UPFIT Upfitter (Not Used)
SL RIDE Ride Control (Not Used)
HDLR 2 Headliner Wiring Connector 2
BODY Body Wiring Connector
DEFOG Rear Defogger Relay
HDLNR 1 Headliner Wiring Connector 1
SPARE RELAY Not Used
CB SEAT Driver and Passenger Seat Module Circuit Breaker
CB RT DOOR Rear Right Power Window, Passenger Door Module
SPARE Not Used
INFO Not Used

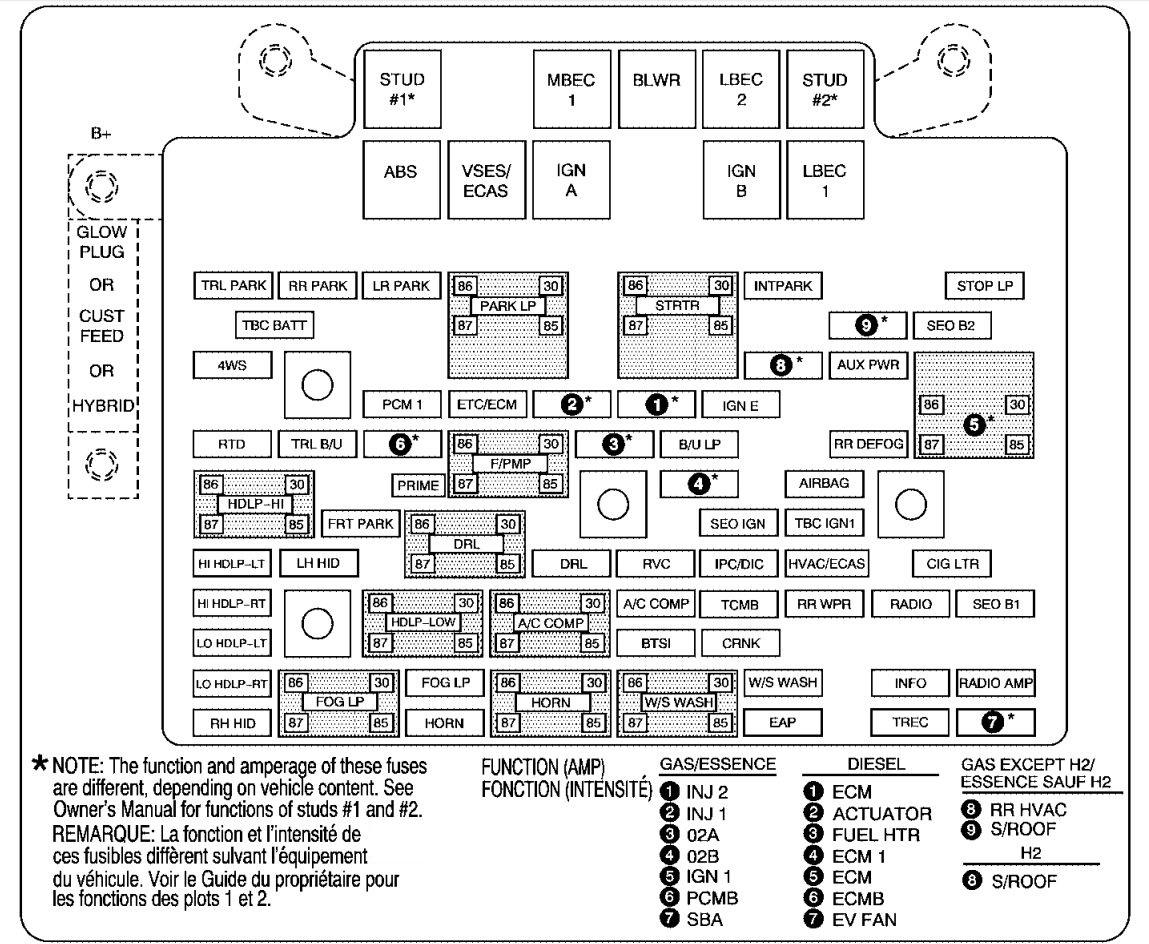

Underhood Fuse Block

The underhood fuse block in the engine compartment is located on the driver’s side of the vehicle near the battery.

Hummer H2 – fuse box – engine compartment

*1 — Gasoline Engine and Fuel Injection Rail #2.

*2 — Gasoline Engine and Fuel Injection Rail #1.

*3 — Gasoline Engine; Oxygen Sensors.

*4 — Gasoline Engine; Oxygen Sensors.

*5 — Ignition 1

*6 — Powertrain Control Module, Fuel Pump.

*7 — Supplemental Brake Assist.

*8 — Sunroof.

Fuses Usage
GLOW PLUG Not Used
CUST FEED Gasoline Accessory Power
HYBRID Not Used
WSW/HTR Heated Windshield Washer (Special Edition Only)
STUD #1 Accessory Power/Trailer Wiring
MBEC 1 Mid Bussed Electrical Center Power Feed, Front Seats, Right Doors
BLWR Front Climate Control Fan
LBEC 2 Left Bussed Electrical Center, Door Modules, Door Locks, Auxiliary Power Outlet—Rear Cargo Area and Instrument Panel
STUD #2* Accessory Power/Trailer Wiring Brake Feed
ABS Anti-lock Brakes
VSES/ECAS Electronically Controlled Air Suspension
IGN A Ignition Switch
IGN B Ignition Switch
LBEC 1 Left Bussed Electrical Center, Left Doors, Truck Body Controller, Flasher Module
TRL PARK Parking Lamps Trailer Wiring
RR PARK Passenger’s Side Rear Parking and Sidemarker Lamps
LR PARK Driver’s Side Rear Parking and Sidemarker Lamps
PARK LP Parking Lamps Relay
STRTR Starter Relay
INTPARK Roof Marker Lamps
STOP LP Stoplamps
TBC BATT Truck Body Controller Battery Feed
SEO B2 Off-Road Lamps
4WS Not Used
AUX PWR Instrument Panel Outlets, Rear Cargo Area Power Outlets, Console
PCM 1 Powertrain Control Module
ETC/ECM Electronic Throttle Control, Electronic Brake Controller
IGN E Instrument Panel Cluster, Air Conditioning Relay, Turn Signal/Hazard Switch, Starter Relay, Electronic Brake Controller TC2 Mode Switch
RTD Electronic Brake Controller Battery Feed
TRL B/U Backup Lamps Trailer Wiring
F/PMP Fuel Pump (Relay)
B/U LP Back-up Lamps, Automatic Transmission Shift Lock Control System
RR DEFOG Rear Window Defogger
HDLP-HI Headlamp High Beam Relay
PRIME Not Used
AIRBAG Supplemental Inflatable Restraint System
FRT PARK Front Parking Lamps, Sidemarker Lamps
DRL Daytime Running Lamps (Relay
SEO IGN Rear Defog Relay
TBC IGN1 Truck Body Controller Ignition
HI HDLP-LT Driver’s Side High Beam Headlamp
LH HID Not Used
DRL Daytime Running Lamps
RVC Regulated Voltage Control
IPC/DIC Instrument Panel Cluster/ Driver Information Center
HVAC/ECAS Climate Control Controller/Electronically Controlled Air Suspension
CIG LTR Cigarette Lighter
HI HDLP-RT Passenger’s Side High Beam Headlamp
HDLP-LOW Headlamp Low Beam Relay
A/C COMP Air Conditioning Compressor Relay
A/C COMP Air Conditioning Compresso
TCMB Transmission Control Module
RR WPR Rear Wiper/Washer
RADIO Audio System
SEO B1 Mid Bussed Electrical Center, Universal Home Remote System, Rear Heated Seats
LO HDLP-LT Driver’s Side Headlamp Low Beam
BTSI Brake Transmission Shift Interlock System
CRNK Starting System
LO HDLP-RT Passenger’s Side Headlamp Low Beam
FOG LP Not Used
FOG LP Not Used
HORN Horn Relay
W/S WASH Windshield and Rear Window Washer Pump Relay
W/S WASH Windshield and Rear Window Washer Pump Relay
INFO OnStar®
RADIO AMP Radio Amplifier
RH HID Not Used
HORN Horn
EAP Not Used
TREC Four-Wheel Drive Module
SBA Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
