Honda Odyssey (RA1 – RA5) (1994 – 1999) – fuse box diagram
Year of production: 1994, 1995, 1996, 1997, 1998, 1999
Engine Compartment Fuse Box
| No. |
A |
Circuit Protected |
| 1 | 20 | Cooling Fan |
| 2 | 15 | Right Headlight |
| 3 | 15 | Left Headlight |
| 4 | 30 | Rear Defroster |
| 5 | 50 | Ignition Switch |
| 6 | 20 | Rear Right Power Window |
| 7 | 20 | Front Right Power Window |
| 8 | 30 | Sunroof |
| 9 | 20 | Condenser Fan |
| 10 | 7.5 | Back Up (Radio) |
| 11 | 20 | Rear Left Power Window |
| 12 | 20 | Front Left Power Window |
| 13 | 10 | ECU (Injector) (ECM) |
| 14 | 20 | Door Lock |
| 15 | 10 | Daytime Running Light |
| 16 | 15 | Small Light |
| 17 | 7.5 | Interior Light |
| 18 | 20 | Power Seat Height |
| 19 | 15 | Radio, Cigarette Lighter |
| 20 | 15 | Stop Light. Horn |
| 21 | 10 | Hazard |
| 22 | 40 | Heater Blower |
| 23 | 40 | Wiper |
| 24 | 100 | Battery |

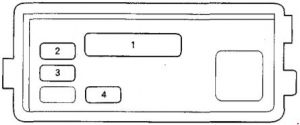

ABS Fuse Box
| No. |
A |
Circuit Protected |
| 1 | 40 | ABS Motor |
| 2 | 20 | ABS B1 |
| 3 | 15 | ABS B2 |
| 4 | 10 | ABS Unit |

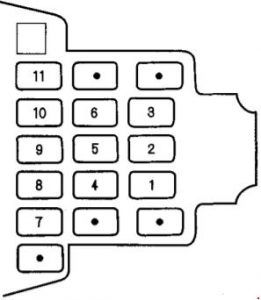

Passenger compartment fuse box
| No. |
A |
Circuit Protected |
| 1 | 10 | Back-up Lights, Meter Lights (Turn Signal) |
| 2 | 15 | Fuel Pump |
| 3 | 10 | SRS |
| 4 | 7.5 | ECU (Cruise Control), TCM |
| 5 | 10 | Window Relay, Sunroof, Rear Wiper |
| 6 | 10 | Front Wiper Relay, Front Washer |
| 7 | 7.5 | Power Mirror |
| 8 | 7.5 | Heater Control Relay, A/C Clutch Relay, Cooling Fan Relay |
| 9 | 7.5 | Starter Signal |
| 10 | 7.5 | Day Light |
| 11 | 7.5 | Radio |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
