Honda CR-V (2000 – 2001) – fuse box diagram
Year of production: 2000, 2001

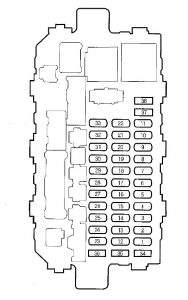

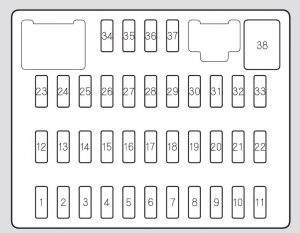

Interior fuse box
| Number | Ampere rating [A] | Circuits Protected |
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | 10 | Rear Wiper, Washer |
| 4 | 10 | Right Headlight High Beam |
| 5 | 10 | Left Headlight High Beam |
| 6 | 10 | Rear Accessory Power Socket |
| 7 | 20 | Power Window Rear Left |
| 8 | 20 | Power Window Rear Right |
| 9 | 15 | IGN Coil |
| 10 | 20 | Power Window Front Assistant |
| 11 | 20 | Power Window Front Driver |
| 12 | 7,5 | Turn Lights |
| 13 | 15 | Fuel Pump (SRS Unit) |
| 14 | 7,5 | Cruise Control |
| 15 | 7,5 | ACG (IG), SP Sensor |
| 16 | 7,5 | ABS |
| 17 | 7,5 | Heater A/C Relay |
| 18 | 7,5 | Running Light Relay• |
| 19 | 7,5 | Back-up Light |
| 20 | 7,5 | Running Light* |
| 21 | 10 | Right Headlight Low Beam |
| 22 | 10 | Left Headlight Low Beam |
| 23 | 10 | SRS |
| 24 | 7,5 | Power Window Relay |
| 25 | 7,5 | Meter |
| 26 | 20 | Front Wiper, Front Washer |
| 27 | 10 | Front Accessory Power Socket |
| 28 | 10 | Radio |
| 29 | — | Not used |
| 30 | 7,5 | Meter Light |
| 31 | 7,5 | Starter Signal |
| 32 | 7,5 | License Light, Taillight |
| 33 | 7,5 | Inter Lock Unit |
| 34 | 7,5 | Spare Fuse |
| 35 | 10 | Spare Fuse |
| 36 | 15 | Spare Fuse |
| 37 | 20 | Spare Fuse |
| 38 | — | Not Used |
| * : Canadian model | ||
Under – hood fuse box
| Number | Ampere rating [A] | Circuits Protected |
| 1 | 100 | Main fuse battery |
| 2 | 40 | Main fuse ignition starter |
| 3 | 20 | Rear defogger |
| 4 | 40 | Option |
| 5 | 30 | Heater motor |
| 6 | 30 | Headlight |
| 7 | 40 | Heater motor |
| 8 | 10 | Hazard |
| 9 | 15 | Horn, stop light |
| 10 | 20 | Door lock unit |
| 11 | 20 | Cooling fan |
| 12 | 20 | Condenser fan |
| 13 | 15 | FI E/M (ECM/PCM) |
| 14 | 7,5 | Back-up (radio) |
| 15 | 7,5 | Interior |

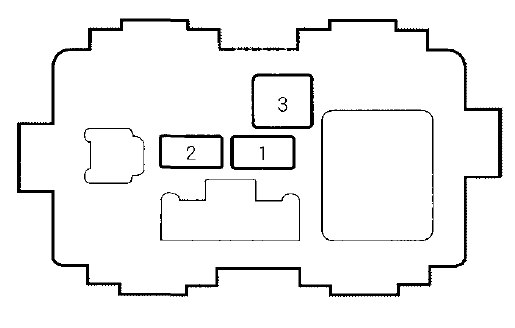

ABS fuse box (for some types)
| Number | Ampere rating [A] | Circuits Protected |
| 1 | 7,5 | Motor check |
| 2 | 20 | ABS +B |
| 3 | 40 | ABS pump motor |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
