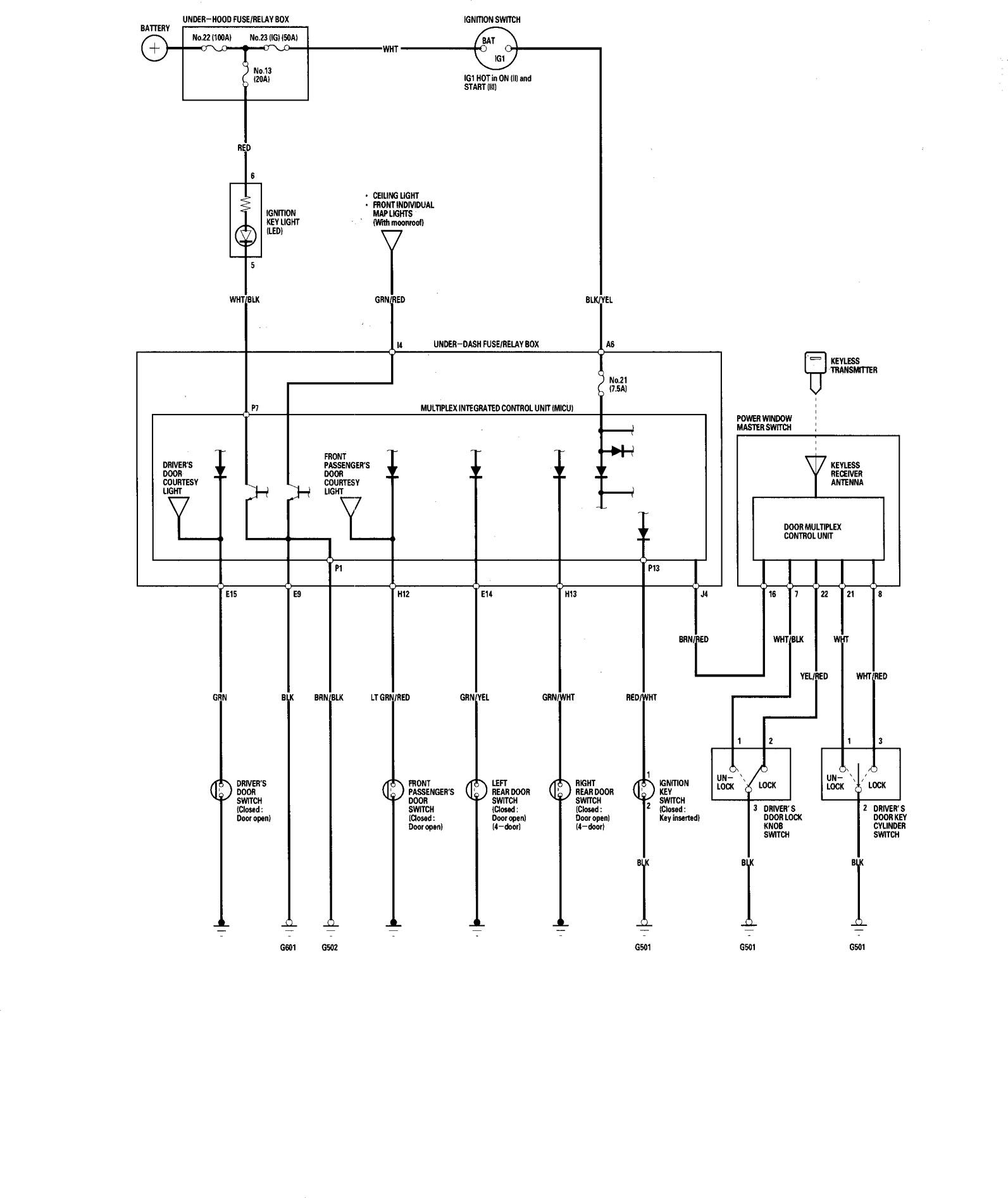

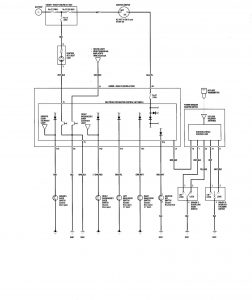

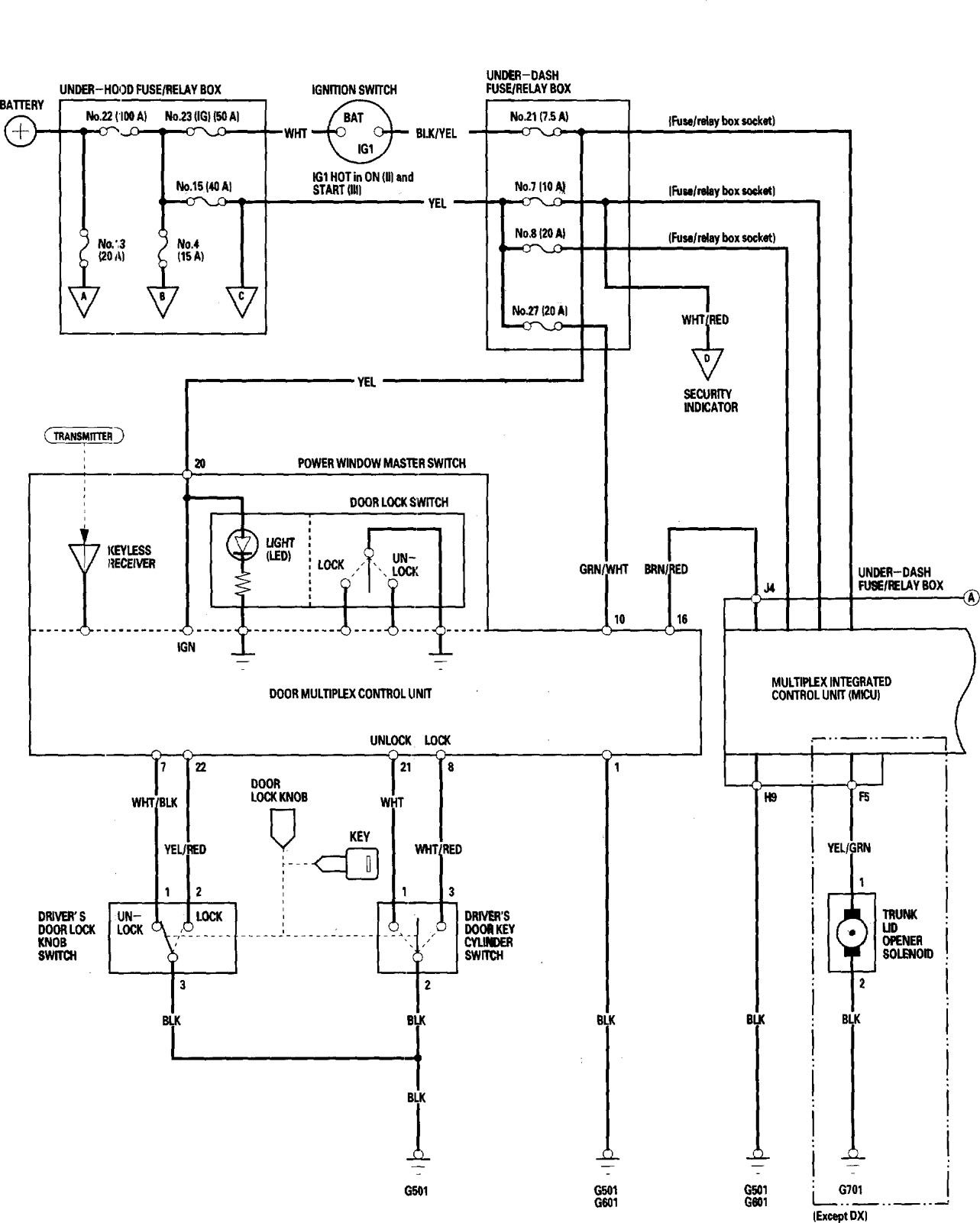

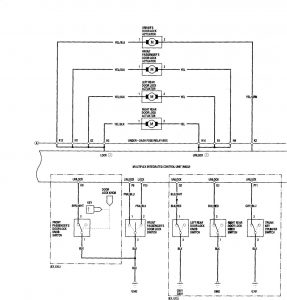

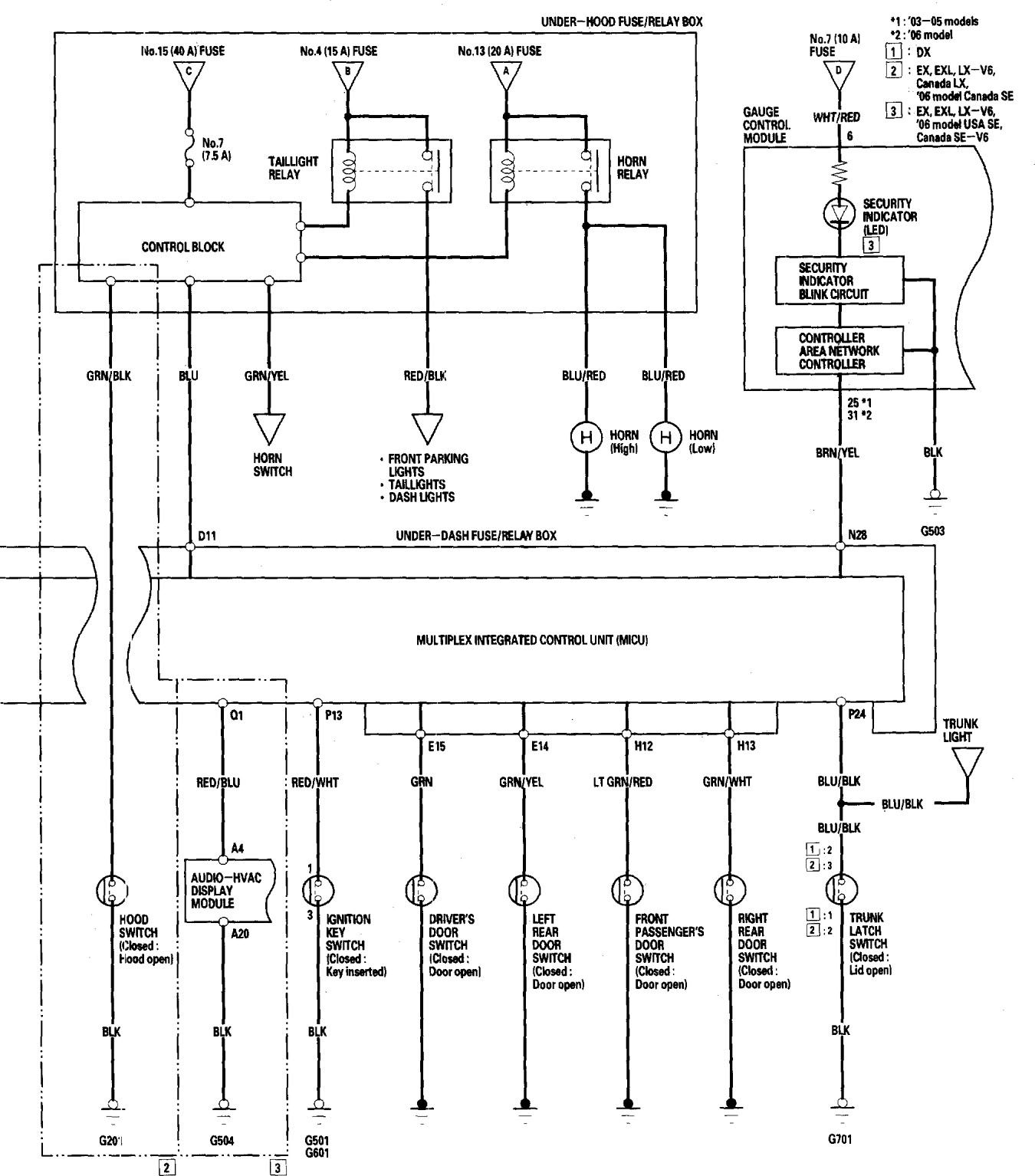

Honda Accord (2006) – wiring diagrams – keyless entry

Acura Integra (1991 – 1992) – wiring diagrams – charging system Year of productions: 1991, 1992 Charging system WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Integra (1998 – 2001) – wiring diagrams – shift interlock Year of productions: 1998, 1999, 2000, 2001 Shift interlock WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]

Mercedes-Benz 500SEC (1993) – wiring diagrams – brake controls Year of productions:  1993 Brake controls Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]
