Ford Transit Courier (from 2015) – fuse box (EU version)

Ford Transit Courier (from 2015) – fuse box (EU version)

Year of production: 2015, 2016, 2017, 2018

Engine Compartment Fuse Box

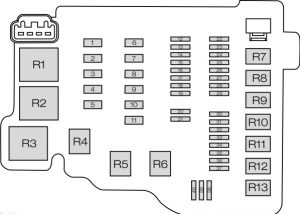

Ford Transit Courier (2015) – fuse box – engine compartment

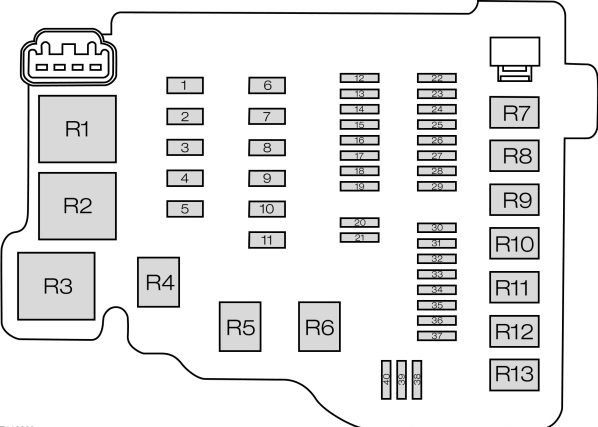

Ford Transit Courier (2015) – fuse box – engine compartment
Fuse Ampere rating [A] Circuits protected
F1 30 Anti-lock brake system
F2 60 Cooling fan
F3 30 Cooling fan
40
F4 30 Blower motor
F5 60 Passenger compartment fuse box supply
F6 30 Central locking system
F7 60 Ignition relay
F8 60 Glow plugs
F9 60 Heated windshield
F10 30 Fuel heater
F11 30 Starter motor
F12 10 Left-hand high beam
F13 10 Right-hand high beam
F14 15 Water pump – EcoBoost
F15 20 Ignition coil
F16 15 Powertrain control module
F17 15 Heated oxygen sensor
F18 20 Powertrain control module
F18 Not used
F19 7,5 Air conditioning compressor
F20 Not used
F21 Not used
F22 Not used
F23 15 Front fog lamps
F24 15 Direction indicators
F25 15 Left-hand exterior lamps
F26 15 Right-hand exterior lamps
F27 7,5 Powertrain control module
F28 20 Anti-lock brake system
F29 10 Air conditioning clutch
F30 Not used
F31 Not used
F32 20 Horn
F33 20 Heated rear window
F34 20 Fuel pump.  Fuel heater
F35 15 Anti-theft alarm
F36 Not used
F37 Not used
F38 Not used
F39 Not used
F40 Not used



Relay Circuits Switched
R1 Cooling fan
R2 Glow plugs
R3 Powertrain control module
R4 High beam
R5 Not used
R6 Fuel line heater
R7 Cooling fan
R8 Starter motor
R9 Air conditioning clutch
R10 Front fog lamps
R11 Fuel pump.  Fuel heater
R12 Not used
R13 Blower motor

Passenger compartment fuse box

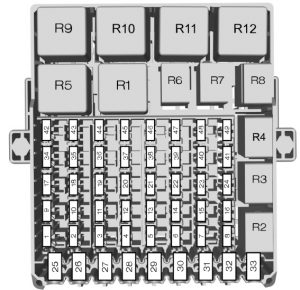

Ford Transit Courier (2015) – fuse box – passeneger compartment
Ford Transit Courier (2015) – fuse box – passeneger compartment
Fuse Ampere rating [A] Circuits protected
F1 7,5 Heated windshield.  Blower motor.  Rain sensor module.  Auto-dimming interior mirror
F2 10 Stop lamp switch
F3 5 Reversing lamps.  Rear parking aid camera
F4 10 Heated washer nozzle.  Headlamp leveling
F5 7,5 Power exterior mirrors
F6 15 Rear window wiper
F7 15 Windshield washer pump
F8 3 USB charger
F9 15 Passenger heated seat
F10 15 Driver heated sea
F11 Not used
F12 10 Airbag module
F13 10 Blower motor relay.  Immobilizer.  Power steering.  Instrument panel cluster
F14 7,5 Powertrain control module.  Fuel pump
F15 7,5 Audio unit.  Instrument panel cluster
F16 Not used
F17 Not used
F18 10 Passenger airbag deactivation indicator
F19 10 Data link connector
F20 20 Trailer tow module
F21 15 Audio unit.  Navigation unit
F22 7,5 Instrument cluster
F23 7,5 Front control/display interface module.  Air conditioning control module.  Hazard flasher switch
F24 10 SYNC module.  Global positioning system module
F25 30 Power windows
F26 30 Windshield wipers
F27 Not used
F28 30 Auto-start-stop power supply.
F29 20 Rear auxiliary power points
F30 20 Cigar lighter socket.  Front auxiliary power points
F31 Not used
F32 30 Left-hand heated windshield element
F33 30 Right-hand heated windshield element
F34 20 Central locking system
F35 Not used
F36 20 Heated rear window
F37 15 Ignition switch
F38 7,5 Anti-theft alarm
F39 Not used
F40 Not used
F41 Not used
F42 7,5 Rear parking aid camera
F43 Not used
F44 Not used
F45 10 Heated exterior mirrors
F46 Not used
F47 Not used
F48 Not used
F49 Not used



Relay Circuits switched
R1 Ignition
R2 Cigar lighter socket.  Front auxiliary power points
R3 Central locking system
R4 Heated rear window
R5 Not used
R6 Not used
R7 Not used
R8 Rear auxiliary power points
R9 Heated windshield
R10 Not used
R11 Windshield washer pump
R12 Windshield washer pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
