Ford Ka (2008 – 2016) – fuse box diagram

Ford Ka (2008 – 2016) – fuse box diagram

Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Passenger Compartment Fuse Box

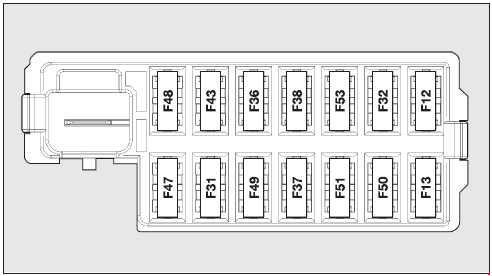

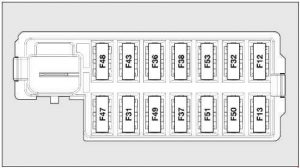

Ford Ka – fuse box diagram – passenger compartment
Ford Ka – fuse box diagram – passenger compartment
Number Ampers Protected circuit
F12 7,5 Right dipped beam power supply
F13 7,5 Left dipped headlight and headlight alignment control unit power supply
F31 5 Remote switch coils on fuse box in engine compartment (INT/A)
F32 7,5 Front and rear roof lights, boot and puddle lights
F36 10 Diagnosis socket, radio, climate control, EOBD
F37 5 Brake light switch, instrument panel node
F38 20 Door central locking
F43 15 Windscreen/rear window washer pump
F47 20 Driver’s side electric windows
F48 20 Passenger side electric window
F49 5 Parking sensor, backlighting switches, electric mirrors
F50 7,5 Airbag Control Unit
F51 7,5 Radio switch, convergence, climate control, brake lights, clutch
F53 5 Instrument panel node

Engine Compartment Fuse Box

Ford Ka mk2 (2008) – fuse box- engine compartment
Ford Ka mk2 (2008) – fuse box- engine compartment
Number Ampers Protected circuit
F01 60 Body computer control unit
F02 20 Subwoofer, hi-fi audio amplifier
F03 20 Ignition switch
F04 40 ABS control unit (pump power supply)
F05 70 EPS
F06 20 Single-speed engine cooling fan
30 Single-speed engine cooling fan, low speed engine cooling fan
F07 40 High-speed engine cooling fan
F08 30 Climate control system fan
F09 30 Trailer
F10 15 Horns
F11 10 Engine control system (secondary loads)
F14 15 Main headlights
F15 15 Heated seats
Sun roof motor
F16 7,5 +15 Engine control unit
F17 10 Engine control unit
F18 7,5 Engine control unit (1.2L Duratec)
Engine control unit, relay coil (1.3L Duratorq)
F19 7,5 Conditioner compressor
F20 30 Heated rear window, mirror demisters
F21 15 Fuel pump
F22 15 Ignition coil, injectors (1.2L Duratec)
20 Engine control unit (1.3L Duratorq)
F23 20 ABS control unit (Control unit power supply + Solenoids)
Ff24 7,5 +15 ABS control unit (pump power supply), EPS, yaw sensor
F30 15 Fog headlights
F81 50 Glow plug control unit (1.3L Duratorq)
F82
F83 50 Heated windscreen
F84
F85 15 Front socket (with or without cigar lighter plug)
F87 7,5 +15 for reversing lights, debimeter, presence of water in diesel sensor, relay coils T02, T05, T14 and T19

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
