Ford Focus – EU (C307) – (from 2007) – fuse box (EU version)

Ford Focus – EU (C307) – (from 2007) – fuse box (EU version)

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

Engine compartment fuse box

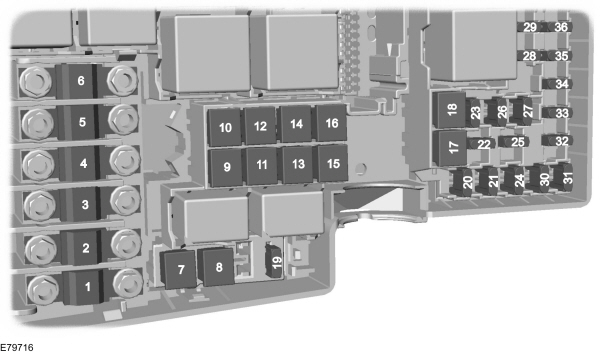

Ford Focus EU – C307 (2007) – fuse box – engine compartment
Ford Focus EU – C307 (2007) – fuse box – engine compartment
Fuse Ampere rating [A] Circuits protected
1 40 Cooling fan
2 80 Power steering
3 60 Passenger junction box supply 1
4 60 Passenger junction box supply 2
5 80 Auxiliary heater
6 60 Glow plug (diesel only)
7 30 ABS, stability control pump
8 20 ABS, stability control valves
9 20 Powertrain control module (PCM)
10 30 Climate control blower
11 20 Ignition switch
12 40 Ignition relay 15l
13 20 Starter solenoid
14 40 Heated windscreen, right-hand side
15 30 Cooling fan relay (Sigma – non A/C only)
16 40 Heated windscreen, left-hand side
17 30 Convertible roof
18 30 Power inverter
19 10 ABS module
20 15 Horn
21 20 Auxiliary heater
22 10 Power steering module
23 30 Headlamp washer
24 15 Auxiliary heater (diesel only)
25 10 Ignition, relays
26 15 Automatic transmission
10 PCM continuous supply (Focus ST and Focus RS only)
27 10 Air conditioning clutch
28 10 Glow plug monitoring (diesel only)
29 10 Dual zone climate control
30 3 PCM, automatic transmission
31 10 Battery sensor smart charging
32 10 Automatic transmission
10 Fuel injector power supply (Focus ST and Focus RS only)
33 10 Heated oxygen sensors (petrol only)
10 Intercooler bypass valve (diesel only)
20 Heated oxygen sensor (Focus ST and Focus RS only)
34 10 Injectors, ignition transformers
35 10 PCM, valves, solenoids
36 10 PCM

Passenger compartment fuse box

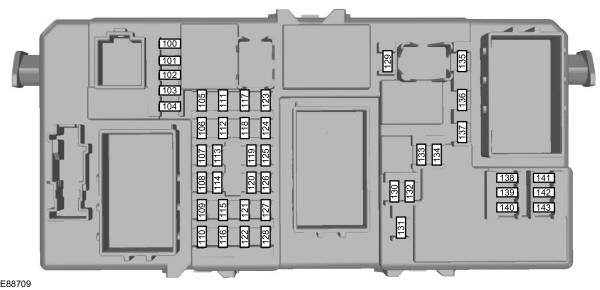

Ford Focus EU c307 (2007) – fuse box – passeneger compartment
Ford Focus EU c307 (2007) – fuse box – passeneger compartment
Fuse Ampere rating [A] Circuits protected
100 10 Electronic modules ignition supply
101 20 Electric sunroof control module, driver’s electric seat, roof control module (convertible only)
102 10 Heater control, steering column, diesel particulate filter, remote control receiver
103 10 Lighting control battery supply
104 10 Battery saver, interior lamps
105 25 Heated rear window
106 20 Keyless system
107 10 Instrument cluster battery supply, on-board diagnostics
108 7,5 Accessory to cluster (audio and navigation unit)
109 20 Cigar lighter, rear auxiliary power socket
110 10 Daytime running lamps ignition supply to lighting control switch
111 15 Fuel pump (petrol engine only)
112 15 Audio modules battery supply
113 10 Daytime running lamps (parking lamps)
114 10 Instrument cluster ignition supply, engine immobiliser
115 7,5 Lighting control ignition supply
116 20 Fog lamps
117 7,5 Number plate lamps
118 20 Door module, left-hand rear
1119 15 Luggage compartment auxiliary power socket
25 Luggage compartment auxiliary power socket (vehicles with trailer tow module)
120 20 Door module, right-hand rear
121 20 Heated front seats
122 10 Airbag module
123 7,5 Heated exterior mirrors
124 7,5 Parking lamps, side lamps, tail lamps (left-hand side)
125 7,5 Parking lamps, side lamps, tail lamps (right-hand side)
126 20 Keyless system
127 25 Electric windows
128 Not used
129 20 Windscreen wipers
130 Not used
131 15 Rear window wiper
132 15 Brake lamps
133 25 Central locking relays, passenger door module
134 20 Central locking, driver door module
135 20 Daytime running lamps
136 15 Washer pump, heated washer jets
137 10 Battery backup sounder
138 10 Powertrain control module, accelerator pedal, automatic transmission
139 10 Main beam right-hand side
140 10 Main beam left-hand side
141 10 Reversing lamp, electric mirrors
142 15 Dipped beam, right-hand side
143 15 Dipped beam, left-hand side

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
