Ford Focus (1999 – 2007) – fuse box diagram (EU version)

Ford Focus (1999 – 2007) – fuse box diagram (EU version)

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Passenger junction box

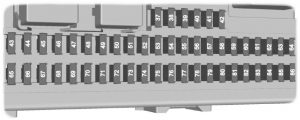

Ford Focus – fuse box diagram – passenger junction
Ford Focus – fuse box diagram – passenger junction
Fuse Ampere rating (A) Circuits protected
37 10 Main beam left-hand side
38 10 Main beam right-hand side
39 20 Cigar lighter, rear auxiliary power socket
40 20 Electric sunroof control module
41 20 Front passenger door module
42 7,5 Heated exterior mirrors
43 10 Heater control, steering column, DPF, remote control receiver, DVD player, alarm
44 10 Not used
45 10 Daytime running lamps (parking lamps)
46 10 Instrument cluster battery supply, on-board diagnostics
47 15 Washer pump, heated washer jets
48 20 Daytime running lamps
49 15 Lighting control battery supply
50 20 Windscreen wipers
51 15 Fuel pump
52 25 Heated rear window
53 7,5 Parking lamps, side lamps, tail lamps (left-hand side)
54 7,5 Parking lamps, side lamps, tail lamps (right-hand side)
55 20 Central locking, driver door module
56 20 Key free system
57 10 Battery backup sounder
58 15 Audio modules battery supply
59 20 Trailer tow module, luggage compartment auxiliary power socket
60 15 Dipped beam, right-hand side
61 15 Dipped beam, left-hand side
62 20 Driver’s electric seat
63 25 Electric windows
64 20 Not used
65 10 Airbag module
66 7,5 Lighting control ignition supply
67 10 Instrument cluster ignition supply, engine immobiliser
68 7,5 Accessory to cluster (audio and navigation unit)
69 20 Fog lamps
70 10 Electronic modules ignition supply
71 10 Daytime running lamps ignition supply to lighting control switch
72 25 Not used
73 7,5 Number plate lamps
74 15 Brake lamps
75 10 Powertrain control module, accelerator pedal, automatic transmission
76 7,5 Electric parking brake
77 25 Central locking relays
78 15 Rear window wiper
79 15 Electric folding mirror
80 10 Battery saver, interior lamps
81 20 Door module, right-hand rear
82 20 Door module, left-hand rear
83 10 Audio modules (high level)
84 10 Reversing lamp, electric mirrors
85 10 Cooling unit
86 20 Heated front seats

Engine junction box

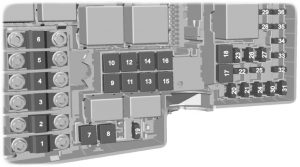

Ford Focus  fuse box diagram -engine junction
Ford Focus fuse box diagram -engine junction
Fuse Ampere rating (A) Circuits protected
1 50 Cooling fan
2 80 Power steering
3 60 Passenger junction box supply 1
4 60 Passenger junction box supply 2
5 80 Climate control
6 60 Auxiliary heater (diesel only)
7 30 Dodatkowa nagrzewnica (disel only)
8 20 ABS, stability control pump
9 20 Powertrain control module (all except FocusST)
9 30 Powertrain control module (FocusST only)
10 30 Climate control blower
11 20 Ignition switch
12 40 Ignition relay 15l
13 20 Starter solenoid
14 40 Heated windscreen, right-hand side
15 30 Cooling fan relay
16 40 Heated windscreen, left-hand side
17 30 Electric parking brake (all except convertible)
17 30 Roof control module (convertible only)
18 Not used
19 10 ABS module
20 15 Horn
21 20 Auxiliary heater
22 10 Power steering module
23 30 Headlamp washer
24 15 Auxiliary heater (diesel only)
25 10 Ignition, relays
26 10 Automatic transmission
27 10 Air conditioning clutch
28 10 Glow plug monitoring (diesel only)
29 10 Dual zone climate control
30 10 Powertrain control module, automatic transmission
31 10 Battery sensor smart charging
32 10 Automatic transmission
32 10 Fuel injector power supply (FocusST only)
33 10 Heated oxygen sensors (petrol only)
33 10 Intercooler bypass valve (diesel only)
33 20 Heated oxygen sensor (FocusST only)
34 10 injectors, ignition transformers
35 10 Powertrain control module, valves, solenoids (all except Focus ST)
35 15 Powertrain control module, valves, solenoids, crank heater element (FocusST only)
36 10 Powertrain control module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
