Ford F-Series XIII F-150 F150 (from 2014) – fuse box diagram

Ford F-Series XIII F-150 F150 (from 2014) – fuse box diagram

Year of production: 2014, 2015, 2016

Power distribution box

Ford F-series XIII F-150 (from 2014) fuse box – power distribution box
Ford F-series XIII F-150 (from 2014) fuse box – power distribution box
Fuse or relay Amepre rating [A] Protected components
1 Not used
2 Not used
3 Not used
4 Telescoping side-view mirror
5 40* Rear window defroster
6 Not used
7 Not used
8 Telescoping side-view mirror
9 Not used
10 Not used
11 60* Automatic brake system motor
12 50* Body control module 1
13 60* Body control module 2
14 20** Amplifier
15 25** 4×4
16 15** Spot light module
17 15** Heated seat
18 10** Steering-column lock
19 10**  Power seats
20 15**  Snow plow, rear heated seats
21A Not used
21B Not used
22 30* Windshield wiper motor
23 15* Rain sensor
24 25* Series fan feed
25 Not used
26 30* Driver seat motors
27 30* Passenger power seat
28 30* Climate controlled seat
29 Not used
30 Air conditioner clutch relay
31 Not used
32 Not used
33 50* Electric fan 3
34 25* Trailer tow park lamps
35 20* Trailer tow stop-turn relay fuse
36 25** Trailer tow lamps module
37 50** Electric fan 1
38 10** Alt A sensor
39 10** Integrated wheel end solenoid
40 15** E-locker
41 10** Telescoping mirror
42 30** Transmission fluid pump
43 25** Horn
44 10** Air conditioner clutch
45 10** Powertrain control module relay coil
46 10** Wiper relay coil
47 Not used
48 Not used
49 30* Trailer brake control module
50 30* Power running boards
51 Fuel pump relay
52 Not used
53 Not used
54 30 Voltage quality module, body-control-module voltage-qualitymodule feed
55 40* Body control module RP2 feed
56 20* Fuel pump
57 30* Right-hand EPB actuator
58 30* Left-hand EPB actuator
59 30* Starter
60 40* Blower motor
61 30* Brake control module, automatic brake system valves
62 Power seat relay
63 15** Heated mirrors
64 Not used
65 Starter relay
66 Powertrain control module relay
67 Windshield wiper relay
68 Blower motor relay
69 Power sliding back window relay
70 Electric fan 1 relay
71 Not used
72 25* 4×4
73 Not used
74 30* PDRG motor
75 Horn relay
76 Not used
77 Steering column lock relay
78 Not used
79 Trailer tow parking lamp relay
80 Rear window defroster relay
81 Not used
82 PDRG close relay
83 Not used
84 Not used
85 Not used
86 Not used
87 10* Trailer tow backup lamps
88 Not used
89 20* Cigar lighter power point 1
90 20* Power point 2
91 20* Power point 3
92 20* Power point 4
93 25** GTDI vehicle power 1
10** PFI vehicle power 1
94 Not used
95 25** Vehicle power 2
96 Not used
97 10** Vehicle power 2
98 Not used
99 20** Vehicle power 4 (PFI)
15** Vehicle power 4 (GTDI)
100 Not used
101 Not used
102 Snow plow relay
103 Not used
104 Electic fan 3 relay
105 10** Power steering
106 Not used
107 10** Anti-lock brakes
108 Not used
109 10** Powertrain control module
110 10** 4×4 run/start, adaptive cruise control
111 10** Transmission pump run-start
112 Not used
113 7,5** Left hand blind spot information system, rear view camera, front view camera, voltage quality module
114 Electric fan 2 relay
115 Not used
116 Not used
*Cartridge fuses**Mini fuses

Passenger compartment fuse panel

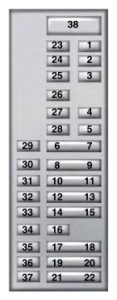

Ford F-series XIII F-150 (from 2014) – fuse box – passenger compartment

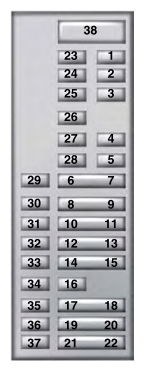

Ford F-series XIII F-150 (from 2014) – fuse box – passenger compartment
Fuse or relay Ampere rating [A] Protected components
1 10 Demand lamp relay, power seats relay, glove box, vanity lamps, overhead console, dome, courtesy, map lamps
2 7,5 Memory module logic, memory seat switches, lumbar motor
3 20 Driver door lock motor
4 5 Trailer brake control
5 20 Not used
6 10 Not used
7 10 Not used
8 10 Not used
9 10 Not used
10 5 Not used (spare)
11 5 Combined sensor module
12 7,5 Climate head module, smart datalink converter
13 7,5 Cluster, SCCM
14 10 Brake
15 10 Smart datalink converter
16 15 Tailgate release
17 5 HUD
18 5 Ignition switch and passive-entry passivestart start stop switch, key inhibit solenoid
19 7,5 Tow haul (O/D) cancel for floor or column shifter
20 7,5 Not used
21 5 HUD, in car temperature with humidity sensor
22 5 EPB, power seat
23 10 PDRG switch, inverter, driver side window, moonroof
24 20 Central lock/unlock
25 30 Driver door control module
26 30 Passenger door control module
27 30 Vista roof, moonroof
28 20 Not used
29 30 Not used
30 30 Not used
31 15 Not used
32 10 Multi-function display, global position system, sync 1, sync 2, radio frequency receiver
33 20 Radio
34 30 Run-start relay
35 5 Restraints module
36 15 360 camera module, heated steering wheel module, rear-view mirror, rear heated seats
37 15 Power distribution box run-start relay
38 30A Circuit breaker Rear window switches and motors

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
