Ford Expedition (U324; 2007 – 2008) – fuse box diagram
Year of production: 2007, 2008
Passenger compartment fuse panel
The fuse panel is located under the right-hand side of the instrument panel.
| № | A | Description |
| 1 | 30 | Smart window #1 |
| 2 | 15 | Driver side memory module |
| 3 | 15 | FES, Audio rear seat controls, SDARS |
| 4 | 30 | Smart window #2 |
| 5 | 10 | Keypad illumination, 3rd row seat enable, Brake Shift Interlock (BSI), SPDJB |
| 6 | 20 | Turn signals |
| 7 | 10 | Low beam headlamps (left) |
| 8 | 10 | Low beam headlamps (right) |
| 9 | 15 | Interior lights |
| 10 | 15 | Backlighting, Puddle lamps |
| 11 | – | Not used |
| 12 | 7.5 | Power mirror switch, Driver seat memory switch |
| 13 | – | Not used |
| 14 | 10 | Power liftgate module – keep-alive power |
| 15 | 10 | Climate control |
| 16 | – | Not used |
| 17 | 20 | All lock motor feeds, Liftgate release, Liftglass releas |
| 18 | 20 | Not used (Spare) |
| 19 | 25 | Rear wiper |
| 20 | 15 | Adjustable pedals, Datalink |
| 21 | 15 | Fog lamps, Cornering lamps |
| 22 | 15 | Park lamps relay |
| 23 | 15 | High beam headlamps |
| 24 | 20 | Horn relay |
| 25 | 10 | Demand lamps, Glovebox, Visor |
| 26 | 10 | Instrument panel cluster |
| 27 | 20 | Ignition switch |
| 28 | 5 | Radio |
| 29 | 5 | Instrument panel cluster |
| 30 | 5 | Not used (Spare) |
| 31 | 10 | Compass, Automatic dimming rear view mirror |
| 32 | 10 | Restraints control module |
| 33 | – | Not used |
| 34 | 5 | Not used (Spare) |
| 35 | 10 | Rear park assist, 4×4 |
| 36 | 5 | PATS transceiver |
| 37 | 10 | Climate control |
| 38 | 20 | Subwoofer/Amp (Audiophile radio) |
| 39 | 20 | Radio |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | 10 | Trailer tow battery charge coil |
| 43 | 10 | Rear wiper logic |
| 44 | – | Not used |
| 45 | 5 | Front wiper logic |
| 46 | 7.5 | Climate control, Auxiliary relay control |
| 47 | 30 | Power windows, Moon roof |
| 48 | – | Not used |

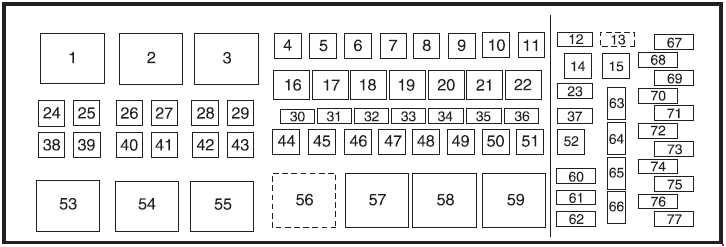

Power distribution box
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
| № | A | Description |
| 1 | – | Blower relay |
| 2 | – | Not used |
| 3 | – | Rear window defroster relay |
| 4 | 30 | Third row seats (driver side) |
| 5 | 40 | Trailer tow connector (electric brake) |
| 6 | 60 | ABS (valves) |
| 7 | – | Not used |
| 8 | 40 | Heated/cooled seats |
| 9 | 60 | ABS (pump) |
| 10 | 20 | Rear console power point |
| 11 | 30 | Auxiliary blower |
| 12 | 25 | Trailer tow connector (park lamps) |
| 13 | 30 | Trailer tow connector (battery charge) |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | A/С clutch relay |
| 17 | – | Not used |
| 18 | – | Fuel pump relay |
| 19 | – | Back-up relay |
| 20 | – | Trailer tow connector relay (left turn signal) |
| 21 | – | Trailer tow connector relay (right turn signal) |
| 22 | – | Not used |
| 23 | 15 | Heated mirrors |
| 24 | 40 | Blower motor |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 30 | Power liftgate |
| 28 | 40 | Rear window defroster, Heated mirror |
| 29 | 30 | Passenger seat |
| 30 | 10 | A/С clutch |
| 31 | 15 | Brake lamps |
| 32 | 20 | Fuel pump |
| 33 | 20 | Back-up lamps |
| 34 | 25 | Trailer tow connector (stop/turn lamps) |
| 35 | 20 | 4×4 module |
| 36 | 10 | Powertrain Control Module (PCM) – Keep alive power, Canister vent |
| 37 | 15 | Transmission B+ |
| 38 | 30 | Third row seats (passenger side) |
| 39 | 50 | Air suspension pump |
| 40 | 30 | Starter motor |
| 41 | 20 | IP/Console power point |
| 42 | – | Not used |
| 43 | 20 | 4×4 module motor |
| 44 | – | Not used |
| 45 | 30 | Driver seat |
| 46 | 40 | Run/Start bus bar |
| 47 | 30 | Air suspension – solenoids |
| 48 | – | Not used |
| 49 | 30 | Front wipers/washer |
| 50 | 30 | PCM – bus bar |
| 51 | 20 | Cargo power point |
| 52 | 20 | Cigarette lighter |
| 53 | – | Air suspension relay |
| 54 | – | Starter relay |
| 55 | – | Trailer tow connector relay (park lamp) |
| 56 | – | Trailer tow connector relay (battery charge) |
| 57 | – | Run/Start relay |
| 58 | – | Not used |
| 59 | – | PCM relay |
| 60 | – | One-touch Start diode |
| 61 | – | A/С clutch diode |
| 62 | – | Fuel pump diode |
| 63 | 15 | Trailer tow connector (back-up lamp) |
| 64 | – | Not used |
| 65 | 10 | Air suspension logic |
| 66 | – | Not used |
| 67 | 10 | Blower coil |
| 68 | – | Not used |
| 69 | 30 | Run/Start – passenger compartment fuse panel |
| 70 | 20 | PCM (sensors) – EFC, A/С clutch coil |
| 71 | 5 | Fuel coil, ISP-R |
| 72 | 20 | PCM (ignition coils) |
| 73 | 5 | Transmission ignition |
| 74 | 20 | PCM (sensors) – HE GO/CMS, MAFS, EVMV, CMCV, Speed deactivation switch, VCT |
| 75 | 5 | 4×4 Integrated Wheel Ends (IWE) solenoid |
| 76 | 20 | PCM – VPWR |
| 77 | 10 | ABS logic, Heated PCV |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
