Ford EcoSport (from 2013) – fuse box diagram (India version)
Year of production: 2013, 2014, 2015, 2016

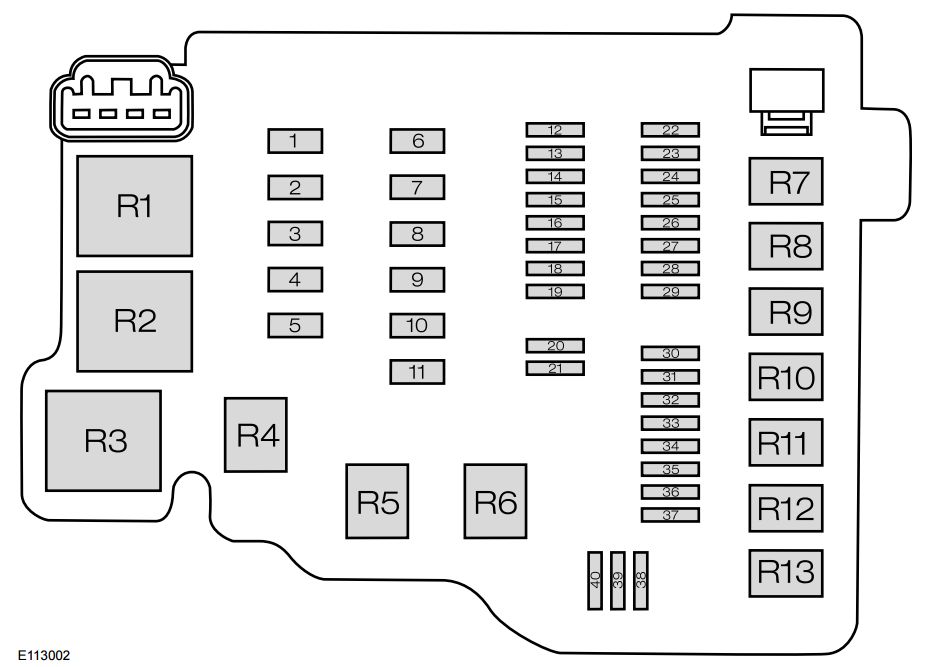

Engine Compartment Fuse Box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 40 | Anti-lock braking system, electronic stability program module |
| 2 | 60 | Cooling system fan high speed |
| 3 | 30 | Cooling system fan low speed |
| 4 | 40 | Heater blower relay |
| 5 | 60 | Passenger compartment fuse box supply (battery) |
| 6 | 30 | Power door locks (body control module) |
| 7 | 60 | Passenger compartment fuse box supply (ignition relay) |
| 8 | 60 | Glow plug relay (diesel) |
| 9 | 30 | Automatic transmission module |
| 10 | — | Not used |
| 11 | 30 | Starter relay |
| 12 | 15 | High beam relay |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | 15 | Cooling fan relay, powertrain control module, canister purge valve (petrol), wastegate valve (1.0L petrol), variable oil pump valve (1.0L petrol), variable camshaft timing valve (1.0L petrol) |
| 17 | 15 | Heated oxygen sensors (petrol), variable camshaft timing (1.5L petrol), catalyst monitoring sensor (1.5L petrol), mass air flow sensor (1.5L petrol and diesel), powertrain control module (diesel), metering fuel valve (diesel), temperature sensor (diesel), vehicle speed sensor (diesel), water in fuel sensor (diesel) |
| 18 (1.0L petrol) | 10 | Run on pump, vacuum valve |
| 19 (1.0L petrol) | 20 | Ignition coil |
| 19 (1.5L petrol) | 15 | Ignition coil |
| 20 | — | Not used |
| 21 | 15 | Horn |
| 22 | 15 | Exterior lighting left-hand side (low beam) |
| 23 | 15 | Fog lamp relay |
| 24 | 15 | Turn signals |
| 25 | — | Not used |
| 26 | — | Not used |
| 27 | 7,5 | Powertrain control module relay coil, automatic transmission module, powertrain control module (1.5L petrol) |
| 28 | 20 | Anti-lock Braking System (electronic stability program) |
| 29 | 7,5 | Air conditioning clutch relay |
| 30 | 15 | Exterior lighting right-hand side (low beam) |
| 31 | — | Not used |
| 32 | 20 | Body control module power supply |
| 33 | 20 | Rear window defroster |
| 34 | 20 | Fuel pump relay (petrol) |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| Relay | Circuits switched |
| R1 | Cooling fan motor – high speed |
| R2 | Not used |
| R3 | Powertrain control module |
| R4 | High beam |
| R5 | Horn |
| R6 | Not used |
| R7 | Cooling fan motor – low speed |
| R8 | Starter motor |
| R9 | Air conditioning |
| R10 | Front fog lamp |
| R11 | Fuel pump (1.5L petrol) |
| R12 | Backup lamp |
| R13 | Heater fan/blower |
Passenger Compartment Fuse Box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 7,5 | Passenger Compartment Fuse Box |
| 2 | 10 | Stop lamps |
| 3 | 7,5 | Reversing lamp |
| 4 | 7,5 | Headlamp leveling |
| 5 | 20 | Windshield wipers |
| 6 | 15 | Rear window wiper |
| 7 | 15 | Washer pump |
| 8 | — | Not used |
| 9 | — | Not used |
| 10 | 15 | Ignition switch or keyless ignition relay, keyless accessory relay |
| 11 | 3 | Instrument cluster |
| 12 | 15 | Data link connector |
| 13 | 7,5 | Heating control head (manual A/C), electronic automatic temperature control, receiver remote (vehicles with keyless system), integrated control panel, multifunction display |
| 14 | 15 | Audio, SYNC |
| 15 | 3 | Power exterior mirrors, power windows |
| 16 | 20 | Keyless vehicle module |
| 17 | 20 | Keyless vehicle module |
| 18 | — | Not used |
| 19 | 7,5 | Instrument cluster |
| 20 | — | Not used |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | — | Not used |
| 24 | — | Not used |
| 25 | 7,5 | Air conditioning control module, heater blower relay, front fog lamp relay |
| 26 | 3 | Airbag control module |
| 27 | 10 | Body control module (ignition), anti-lock brake system, ignition (for vehicles without keyless system), cluster (ignition), electrical power assist steering (ignition) |
| 28 | 7,5 | Accelerator pedal, fuel pump, powertrain control module (ignition), automatic transmission module |
| 29 | — | Not used |
| 30 | — | Not used |
| 31 | 20 | Front power point |
| 32 | 20 | Rear power point |
| 33 | — | Not used |
| 34 | 30 | Power driver and passenger window switches |
| 35 | 30 | Power rear window switches |
| 36 | — | Not used |
| Relay | Circuits switched |
| R1 | Iginition |
| R2 | Keyless system ignition |
| R3 | Keyless system accessoty |

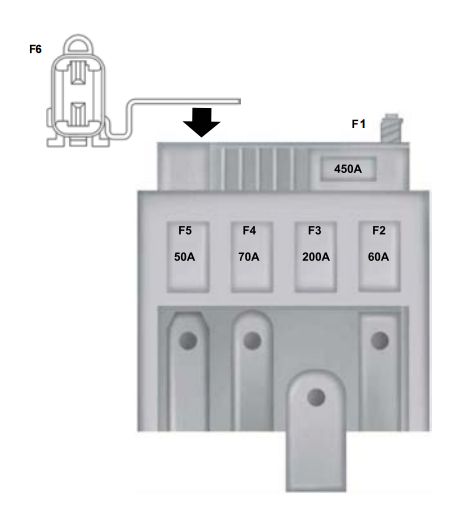

Battery Fuse Box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 450 | Starter |
| 2 | 60 | Electric power assist steering |
| 3 | 200 | Engine junction box |
| 4 | — | Not used |
| 5 | — | Not used |
| 6 | 3 | Battery monitor system |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
