Ford E-350 (2009 – 2015) – fuse box diagram

Ford E-350 (2009 – 2015) – fuse box diagram

Year of production: 2009, 2010, 2011, 2012, 2013, 2014, 2015

Power Distribution Box

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.

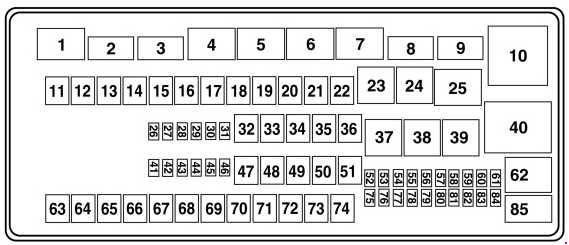

Ford E-350 - fuse box diagram - power distribution box
Ford E-350 – fuse box diagram – power distribution box

A
Protected Circuits
1 Powertrain control module
2 Starter solenoid
3 Wiper
4 Trailer tow battery charge
5 Fuel pump
6 Trailer tow park lamp
7 Auxiliary switch #4
8 Auxiliary switch #3
9 Modified vehicle and stripped chassis run/start
10 IDM relay (Diesel engine only)
11 Not used
12 40 Modified vehicle and stripped chassis run/start
13 30 Starter solenoid relay
14 40 Run start relay
15 40 Modified vehicle and stripped chassis battery
16 50 Auxiliary air conditioning blower
17 50 Trailer tow battery charge, Trailer tow park feed
18 30 Electric trailer brake, Trailer brake controller
19 30 Auxiliary switch #1
20 30 Auxiliary switch #2
21 50 IDM relay (diesel engine only)
22 Not used
23 Air conditioning clutch
24 Horn relay (stripped chassis)
25 Run/start
26 Not used
27 Not used
28 20 Back-up lamp
29 10 Air conditioning clutch
30 10 Brake on/off switch
31 10 Cluster battery (stripped chassis)
32 50 Blower motor
33 40 Anti-lock brake system pump
34 20 Stripped chassis horn
35 40 Powertrain control module relay
36 20 Ignition switch (stripped chassis)
37 Trailer tow stop — left turn signal
38 Trailer tow stop — right turn signal
39 Back up lamp
40 Blower motor
41 10 Charging (diesel engine only)
42 15 Diagnostic connector (stripped chassis)
43 20 Fuel pump
44 10 Auxiliary switch #3
45 15 Auxiliary switch #4
46 10 Powertrain control module keep alive power, Canister vent, Powertrain control module relay coil
47 40 Anti-lock brake system coil
48 20 Trailer tow stop lamp/turn signal
49 30 Wiper motor
50 Not used
51 20 Cutaway
52 10 Stripped chassis and modified vehicle run/start relay coil
53 10 Anti-lock brake system run/start feed
54 10 Fuel pump relay coil
55 10 ECM (diesel engine only)
56 20 DFCM (diesel engine only)
57 20 Trailer tow park lamp
58 15 Trailer tow backup lamp
59 Not used
60 One Touch Integrated Start (OTIS) (diode)
61 Auxiliary battery (diode)
62 Auxiliary switch #2
63 30 Trailer tow battery charge
64 Not used
65 20 Power point 2 (glove box)
66 20 Power point 3 (cutaway B+)
67 20 Power point 1 (instrument panel)
68 50 Modified vehicle
69 Not used
70 30 Stripped chassis
71 Not used
72 20 Cigar lighter / Power point
73 Not used
74 30 Power seat
75 20 Vehicle power 1, Powertrain control module power
76 20 Vehicle power 2, Powertrain control module – emission related powertrain components
77 10 Vehicle power 3, Powertrain control module – general powertrain components
78 15 Vehicle power 4, Fuel pump relay coil
79 10 Vehicle power 5, Transmission
80 10 Cluster run/start (stripped chassis)
81
82
83 Fuel pump (diode)
84
85 Auxiliary switch #1

Passenger compartment fuse box

The fuse panel is located to the left of the brake pedal and mounted onto the lower left cowl panel.

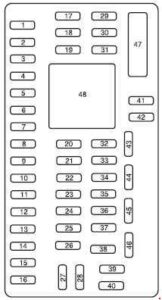

Ford E-350 - fuse box diagram - passenger compartment
Ford E-350 – fuse box diagram – passenger compartment

A
Protected components
1 30 Inverter B+
2 15 Not used (spare)
3 15 Not used (spare)
4 30 Not used (spare)
5 10 Passenger compartment fuse panel, Brake-shift interlock
6 20 Turn signal, Hazard, Stop lamps
7 10 Left low beam
8 10 Right low beam
9 15 Courtesy lamps
10 15 Switch illumination
11 10 Not used (spare)
12 7.5 Not used (spare)
13 5 Mirrors
14 10 SYNC, Global positioning system module
15 10 Not used (spare)
16 15 Not used (spare)
17 20 Door locks
18 20 Not used (spare)
19 25 Not used (spare)
20 15 Diagnostic connector (except stripped chassis)
21 15 Not used (spare)
22 15 Park lamps, License plate lamps
23 15 High beams
24 20 Horn (except stripped chassis)
25 10 Demand lighting
26 10 Cluster (except stripped chassis)
27 20 Ignition switch feed
28 5 Audio mute (start)
29 5 Cluster (except stripped chassis)
30 5 Not used (spare)
31 10 Not used (spare)
32 10 Restraints module
33 10 Trailer brake controller
34 5 Not used (spare)
35 10 Cutaway run/start
36 5 Passive anti-theft system radio frequency module
37 10 Climate control, Stripped chassis instrument panel #1 run/start
38 20 Not used (spare)
39 20 Radio
40 20 Not used (spare)
41 15 Radio, Switch illumination, Automatic dimming rear view mirror, Inverter
42 10 Auxiliary switch
43 10 Stripped chassis instrument panel connector #1
44 10 Trailer tow battery charge relay
45 5 Wipers, Stripped chassis Engine connector 3
46 7.5 Passenger airbag deactivation indicator
47 30 Windows accessory delay
48 Delayed accessory

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
