Ford B-MAX (2012 – 2016) – fuse box diagram
Year of production: 2012, 2013, 2014, 2015, 2016

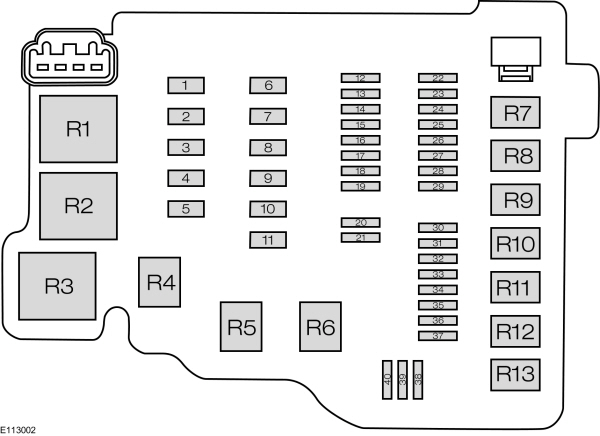

Engine compartment fuse box
Ford B-MAX – fuse box- engine compartment
| № |
A |
Circuits protected |
| 1 |
40 |
Anti-lock braking system module |
| 1 |
30 |
Anti-lock braking system, electronic stability program module |
| 2 |
60 |
Cooling system fan high speed |
| 3 |
40 |
Cooling system fan |
| 3 |
30 |
Cooling system fan low speed |
| 4 |
30 |
Heater blower |
| 5 |
60 |
Passenger’s compartment fuse box supply (battery) |
| 6 |
30 |
Body control module |
| 7 |
60 |
Passenger’s compartment fuse box supply (ignition) |
| 8 |
60 |
Glow plugs |
| 8 |
50 |
DPS6 module |
| 9 |
40 |
Heated windshield |
| 10 |
40 |
Heated windshield |
| 11 |
30 |
Starter relay |
| 12 |
10 |
High beam left-hand relay |
| 13 |
10 |
High beam right-hand relay |
| 14 |
15 |
Run on pump |
| 15 |
20 |
Ignition coil |
| 16 |
15 |
Powertrain control module, high and low cooling fan |
| 17 |
15 |
Heated oxygen sensors (gasoline engines) |
| 17 |
20 |
Power supply module (diesel engines) |
| 18 |
– |
Not used |
| 19 |
7.5 |
Air condition controller |
| 20 |
– |
Not used |
| 21 |
– |
Not used |
| 22 |
15 |
Lighting control battery supply |
| 23 |
15 |
Front fog lamps |
| 24 |
15 |
Direction indicators |
| 25 |
15 |
Exterior lighting left-hand side |
| 26 |
15 |
Exterior lighting right-hand side |
| 27 |
7.5 |
Powertrain control module |
| 28 |
20 |
Anti-lock braking system, electronic stability program |
| 29 |
10 |
Air conditioning clutch |
| 30 |
– |
Not used |
| 31 |
– |
Not used |
| 32 |
20 |
Horn, battery saver, keyless vehicle module |
| 33 |
20 |
Heated rear window |
| 34 |
20 |
Fuel pump relay, diesel fuel heater |
| 35 |
15 |
Cat1 alarm system |
| 36 |
7.5 |
Automatic transmission controller |
| 37 |
25 |
Front door module left-hand side |
| 38 |
25 |
Front door module right-hand side |
| 39 |
25 |
Rear door module left-hand side |
| 40 |
25 |
Rear door module right-hand side |
| Relay |
Circuits switched |
| R1 |
Cooling system fan |
| R2 |
Not used |
| R3 |
Powertrain control module |
| R4 |
High beam |
| R5 |
Not used |
| R6 |
Not used |
| R7 |
Engine cooling fan |
| R8 |
Starter |
| R9 |
Air conditioning clutch |
| R10 |
Front fog lamps |
| R11 |
Fuel pump, diesel fuel heater |
| R12 |
Reversing lamp |
| R13 |
Heater blower |

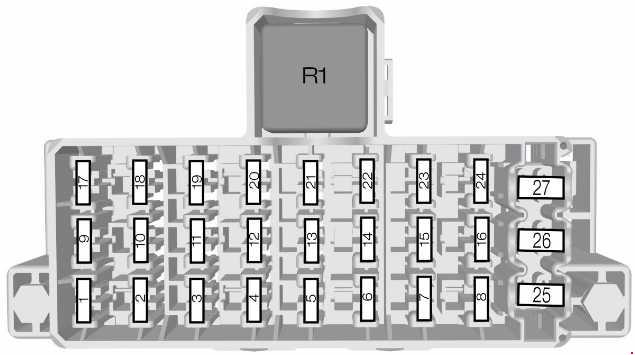

Passenger’s Compartment Fuse Box – Type 1
Ford B-MQX – fuse box diagram – Passenger’s Compartment Fuse Box – Type 1
| № |
A |
Circuits protected |
| 1 |
7.5 |
Ignition, rain sensor, heated windshield |
| 2 |
10 |
Stop lamps |
| 3 |
7.5 |
Reversing lamp, rear view camera |
| 4 |
7.5 |
Headlamp leveling |
| 5 |
– |
Not used |
| 6 |
15 |
Rear window wiper |
| 7 |
15 |
Washer pump |
| 8 |
– |
Not used |
| 9 |
15 |
Passenger’s heated seat |
| 10 |
15 |
Driver’s heated seat |
| 11 |
– |
Not used |
| 12 |
10 |
Airbag module |
| 13 |
10 |
Ignition, electric power assisted steering, instrument cluster, passive anti-theft system, anti-lock braking system |
| 14 |
7.5 |
Powertrain control module, transmission selector lever, fuel pump |
| 15 |
7.5 |
Audio system, instrument cluster |
| 16 |
7.5 |
Heated windshield |
| 17 |
– |
Not used |
| 18 |
– |
Not used |
| 19 |
15 |
Data link connector |
| 20 |
20 |
Multi function display, clock, internal scanner, heating vents, air conditioning panel |
| 21 |
15 |
Audio system, navigation, bluetooth |
| 22 |
7.5 |
Instrument cluster |
| 23 |
7.5 |
Trailer module |
| 24 |
7.5 |
Sync module antenna |
| 25 |
– |
Not used |
| 26 |
30 |
Front wiper, left-hand side |
| 27 |
30 |
Front wiper, right-hand side |
| Relay |
Circuits switched |
| R1 |
Ignition |

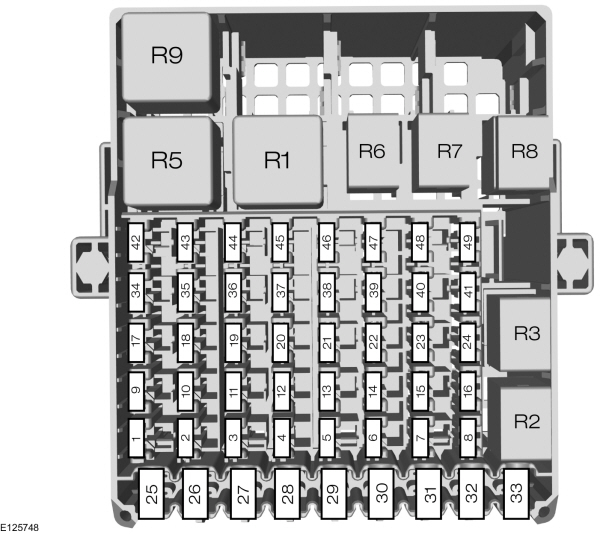

Passenger’s Compartment Fuse Box – Type 2
Ford B-MAX – fuse box- passenger compartment
| № |
A |
Circuits protected |
| 1 |
7.5 |
Ignition, rain sensor, heated windshield, dome lamp, interior mirror |
| 2 |
10 |
Stop lamps |
| 3 |
7.5 |
Reversing lamp |
| 4 |
7.5 |
Headlamp leveling |
| 5 |
– |
Not used |
| 6 |
15 |
Rear window wiper |
| 7 |
15 |
Washer pump |
| 8 |
– |
Not used |
| 9 |
15 |
Passenger’s heated seat |
| 10 |
15 |
Driver’s heated seat |
| 11 |
– |
Not used |
| 12 |
10 |
Airbag module |
| 13 |
10 |
Ignition, electric power assisted steering, instrument cluster, passive anti-theft system, anti-lock braking system |
| 14 |
7.5 |
Powertrain control module, gear selector lever, fuel pump |
| 15 |
7.5 |
Audio system, instrument cluster |
| 16 |
7.5 |
Heated windshield right-hand side |
| 17 |
– |
Not used |
| 18 |
– |
Not used |
| 19 |
10 |
Data link connector |
| 20 |
20 |
Trailer module |
| 21 |
15 |
Audio system, navigation |
| 22 |
7.5 |
Instrument cluster |
| 23 |
7.5 |
Multi functional display, clock, internal scanner, heating vents, air conditioning panel |
| 24 |
10 |
Sync module |
| 25 |
– |
Not used |
| 26 |
30 |
Front wiper, left-hand side |
| 27 |
30 |
Front wiper, right-hand side |
| 28 |
30 |
Voltage quality module |
| 29 |
20 |
Rear power point |
| 30 |
20 |
Cigar lighter, front power point |
| 31 |
– |
Not used |
| 32 |
– |
Not used |
| 33 |
– |
Not used |
| 34 |
20 |
Keyless entry |
| 35 |
20 |
Keyless entry |
| 36 |
10 |
Data link connector |
| 37 |
15 |
Ignition switch |
| 38 |
– |
Not used |
| 39 |
– |
Not used |
| 40 |
– |
Not used |
| 41 |
– |
Not used |
| 42 |
7.5 |
Rear view camera |
| 43 |
10 |
Active city stop module |
| 44 |
7.5 |
Passenger airbag deactivation indicator |
| 45 |
– |
Not used |
| 46 |
– |
Not used |
| 47 |
– |
Not used |
| 48 |
– |
Not used |
| 49 |
– |
Not used |
| Relay |
Circuits switched |
| R1 |
Ignition |
| R2 |
Cigar lighter |
| R3 |
Not used |
| R4 |
Active city stop relay |
| R5 |
Not used |
| R6 |
Keyless entry (accessory) |
| R7 |
Keyless entry (ignition) |
| R8 |
Battery saver relay |
| R9 |
Heated front screen left-hand side |
| R10 |
Heated front screen right-hand side |
| R11 |
Not used |
| R12 |
Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
