Fiat Seicento (Fiat 600) (from 2007) – fuse box diagram
Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Fuses in the engine compartment
A fusebox is located on the left side of the engine compartment behind the battery.
Fusebox A
| Fuse | Ampere rating [A] | Description |
| A | 30 | Injection control unit |
| B | 40 | Ignition switch |
| C | 30 | Engine cooling fan |
| D | 60 | Dashboard fusebox power |
| E | 30 | Climate control system |
| F | 30 | Optional power circuits |
| G | 40 | Electrical power steering system |
| H | 60 | ABS |
Fusebox B
| Fuse | Ampere rating [A] | Description |
| 1 | 7,5 | Fiat CODE and control unit (+30) |
| 2 | 15 | Injection system auxiliary units and climate control system auxiliary units |
| 3 | 7,5 | Fiat CODE and electronic injection control unit (15/54) |

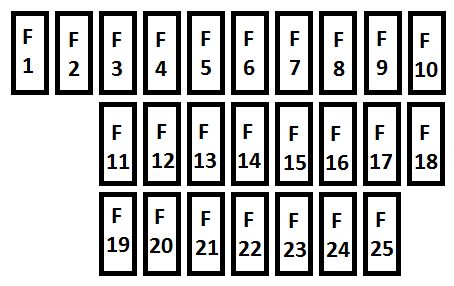

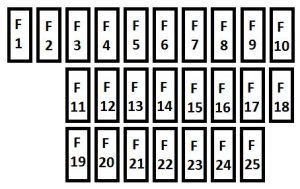

Fusebox in passenger compartment
The fusebox is located to the left of the steering wheel. To reach the fusebox, loosen the screw.
| System/Component | Fuse | Ampere rating [A] |
| Front left-hand sidelight | 5 | 10 |
| Front right-hand sidelight | 4 | 10 |
| Left-hand taillight | 4 | 10 |
| Right-hand taillight | 5 | 10 |
| Left-hand dipped beam headlight | 6 | 10 |
| Right-hand dipped beam headlight | 7 | 10 |
| Left-hand main beam headlight | 8 | 10 |
| Right-hand main beam headlight | 9 | 10 |
| Left-hand brake light | 21 | 10 |
| Right-hand brake light | 21 | 10 |
| Additional brake light (3rd brake light) | 21 | 10 |
| Left-hand number plate light | 4 | 10 |
| Right-hand number plate light | 5 | 10 |
| Reversing light | 21 | 10 |
| Rear foglight | 18 | 10 |
| Hazard lights | 16 | 10 |
| Direction indicators | 22 | 10 |
| Front foglights | 19 | 15 |
| Ceiling light | 15 | 15 |
| Windscreen wiper/washer | 25 | 20 |
| Horn | 17 | 15 |
| Electric windows | 2 | 25 |
| Door locking system | 1 | 15 |
| Heated rear window | 14 | 20 |
| Cigar lighter | 24 | 25 |
| Headlight beam adjuster | 6 | 10 |
| Instrument panel (+15) | 22 | 10 |
| Main beam headlight warning light | 9 | 10 |
| Stalks: light control | 13 | 20 |
| Stalks: general | 20 | 20 |
| Sound system + battery | 15 | 15 |
| Sunroof | 11 | 20 |
| Airbag system | 23 | 10 |
| ABS (+15) | 3 | 10 |
| Passenger compartment fan | 24 | 25 |
| Relay coil power | 12 | 7,5 |
| Instrument panel (+30) | 15 | 15 |
| Electrical power steering system (+15) | 10 | 10 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
