Fiat 500L Living (from 2012) – fuse box diagram
Year of production: 2012, 2013, 2014, 2015, 2016
Fuse box in engine compartment
The fuse box is located of the side of battery.
| Users | Fuse | Ampere rating [A] |
| Horn | F10 | 15 |
| Heated rear window | F20 | 30 |
| Cigar lighter/Front power socket | F85 | 15 |
| Luggage compartment power socket | F86 | 15 |
| External mirror defrosters | F88 | 7,5 |

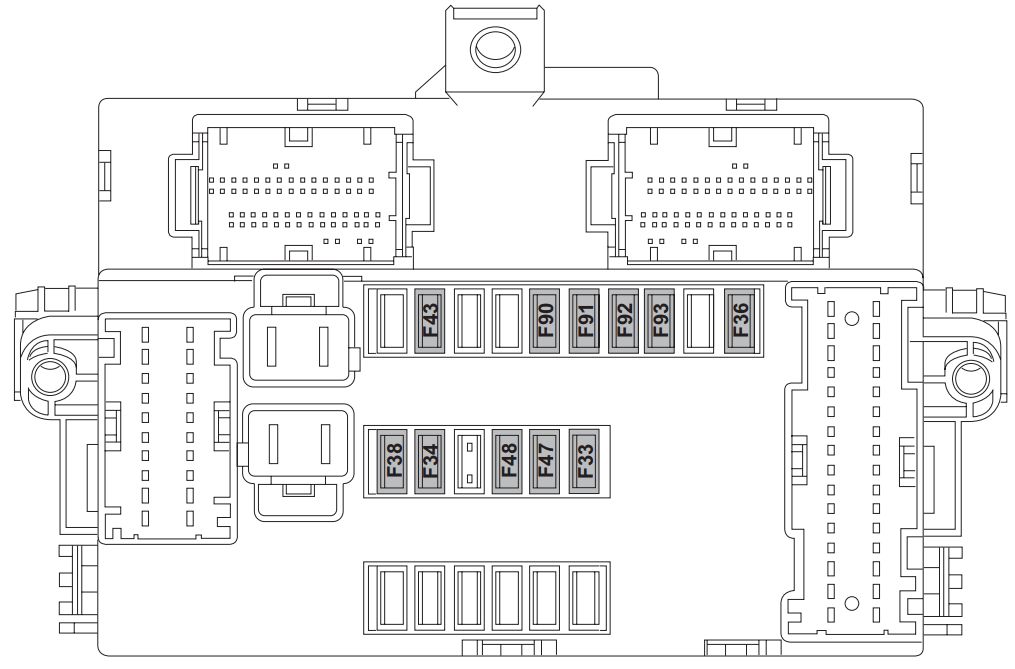

Fuse box under dashboard
| Users | Fuse | Ampere rating [A] |
| Rear electric window (left side) | F33 | 20 |
| Rear electric window (right side) | F34 | 20 |
| +30 Radio, UConnect®, rear courtesy lights (right and left) | F36 | 10 |
| Central locking | F38 | 20 |
| Two-way windscreen washer pump | F43 | 20 |
| Front electric window (driver side) | F47 | 20 |
| Front electric window (passenger side) | f48 | 20 |
| Main beam headlight (left side) | F90 | 7,5 |
| Main beam headlight (right side) | F91 | 7,5 |
| Fog light (left side) | F92 | 7,5 |
| Fog light (right side) | F93 | 7,5 |

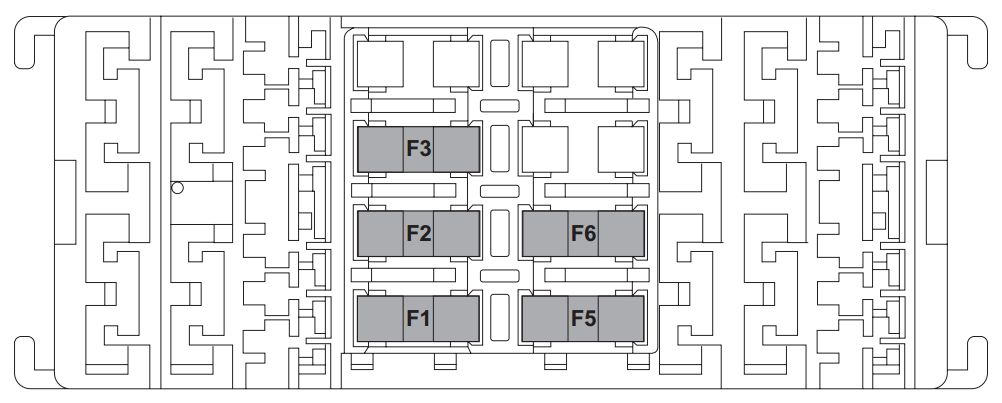

Luggage compartment fuse box
The control unit is located on the left side of the luggage compartment.
| Users | Fuse | Ampere rating [A] |
| Front seat electric lumbar regulator | F1 | 15 |
| Front seat electrical heater | F2 | 15 |
| HI-FI system | F3 | 20 |
| Electric sun roof blind | F5 | 20 |
| Electric sun roof | F6 | 20 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
