Eagle Vision (1997) – fuse box diagram

Eagle Vision (1997) – fuse box diagram

Year of production: 1997

Engine compartment

Power distribution center

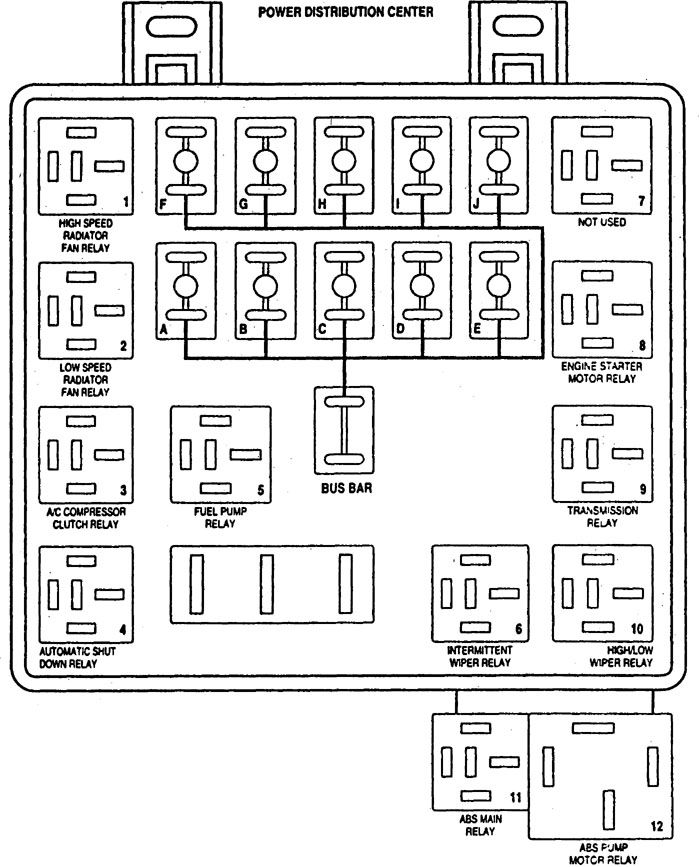

Eagle Vision – fuse box diagram – engine compartment – power distribution box
Eagle Vision – fuse box diagram – engine compartment – power distribution box
Fuse A Function
A 20 Splice 107
B 20 Splice 116
C 40 ABS
D 40 Splice 102
E 30 Wiper
F 20 Junction Block
G 20 Junction Block
H 30 DRL, Splice 111 & Junction Block
I 30 Splice 104
J 40 Ignition Switch

Junction block

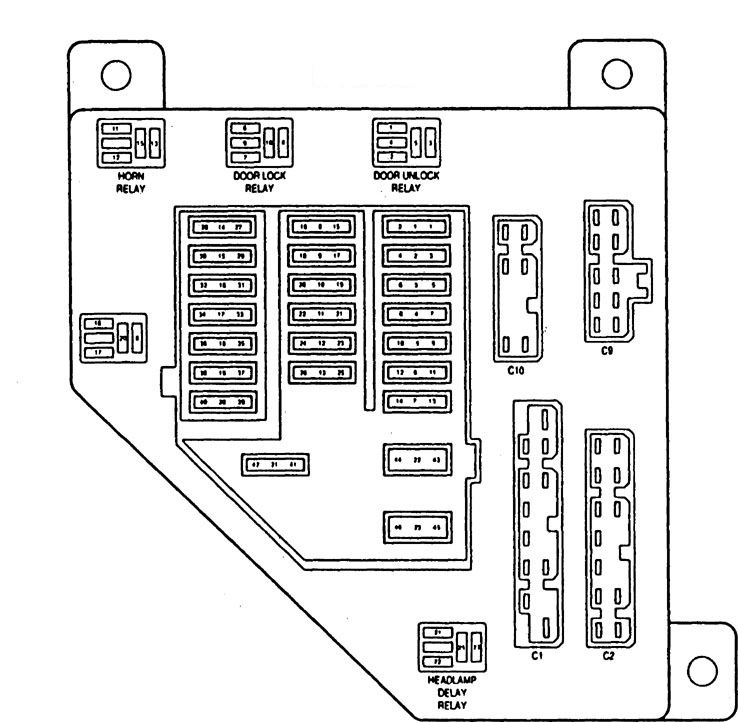

Eagle Vision – fuse diagram box – junction block
Eagle Vision – fuse diagram box – junction block
Fuse A Function
1 5 Power Mirrors
2 10 Radio
3 10 Flasher
4 20 Sloplamp Switch
5 5 BCM
6 10 A/C & Splice 111
7 10 Air Bag
8 20 Cigar Lighter & Radio
9 15 Splice 206
10 10 Wiper
11 15 LH Headlamp
12 15 Splice 115
13 10 Splices 207, 2223, 301, 317 & 322, Trunk Lamp, Underhood Lamp
14 5 Splices 220, 239, 314 & 319
15 15 LH Headlamp
16 15 Headlamp Switch & Splice 126
17 5 Splice 213 & TCM
18 10 Splice 120
19 10 Air Bag
20 10 Splice 124
21 25 ATC Power Module & Blower Motor Resistor
22 CB20 Power Windows
23 CB20 Power Antenna, Power Seats & Sunroof Control Module
24

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
