Eagle Talon (1992) – fuse box diagram
Year of production: 1992
Fuse box diagram
| Power supply circuit | No. | A | Load circuit | |
| Battery | 1 | 10 | Automatic seat belt control unit,buzzer assembly, fog light relay, key reminder switch *2 | |
| Ignition switch | IG2 | 2 | — | — |
| 3 | 10 | Air conditioner contlol unit, air conditioner switch blower, defogger timer, heater relay, power window relay, transistor relay*1, daytime running light relay 2*1, ABS relay | ||
| ACC | 4 | 10 | Radio | |
| 5 | 15 | Cigarette lighter, remote controlled mirror | ||
| Battery | 6 | 15 | Door lock relay, door lock control unit | |
| Ignition switch | IG2 | 7 | 10 | A/T fluid temperature warning light, 4-speed automatic transaxle control unit, auto-cruise control unit <A/T> |
| 8 | — | — | ||
| ACC | 9 | 15 | Intermittent wiper relay, wiper motor, washer motor | |
| 10 | 10 | Headlight relay, horn, daytime running high relay 1*1 | ||
| IG1 | 11 | 10 | Auto-cruise control unit, auto-cruise control actuator, automatic seat belt control unit, buzzer assembly, combination meter, seat belt warning light* | |
| 12 | 10 | Tum-signal and hazard flasher unit | ||
| Battery | 13 | — | — | |
| 14 | — | — | ||
| 15 | — | — | ||
| 16 | 30 | Blower motor | ||
| 17 | 15 | Stop light | ||
| Ignition switch | IG1 | 18 | 10 | Back-UP light, dome light relay |
| Battery | 19 | 10 | 4-speed automatic transaxle control unit, dome light, door-ajar warning light, foot light, ignition key illumination light, luggage compartment light, MPI control unit, radio, ABS relay, automatic seat belt control unit, ABS control unit door lock control unit | |
| (1) *1: vehicle for Canada (2) *2: vehicle for USA |
||||

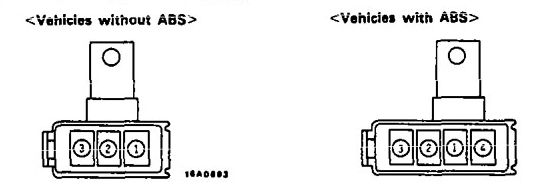

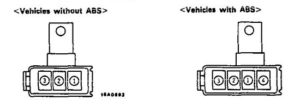

Centralized Junction Block
| No. | Circuit | Housing color | A | |
| 1 | MPI circuit | Blue | 20 | |
| 2 | Radiator fan motor circuit | Pink | 30 | |
| 3 | Ignition fan motor circuit | Pink | 30 | |
| 4 | ABS circuit | Yellow | 60 | |

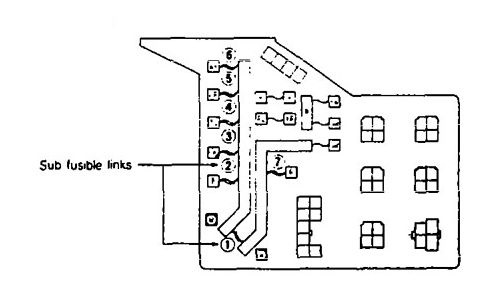

Sub Fusible link (relay box inside engine compartment)
| No. | Circuit | Housing color | A | |
| 1 | Alternator circuit, sub fusible link (2), (3), (4), (6), (8) | Black | 80 | |
| Blue* | 100 | |||
| 2 | Defogger circuit | Green | 40 | |
| 3 | Automatic seatbelt, circuit, dedicated fuse (5) circuit | Pink | 30 | |
| 4 | Alternator circuit | Pink | 30 | |
| 5 | Power window circuit | Pink | 30 | |
| 6 | Multi-purpose fuse (1), (6), (13), (14), (15), (16), (17), (18), dedicated fuse (4) circuit | Green | 40 | |
| 7 | Headlight circuit, dedicated fuse (1), (3), (6) circuit | Green | 40 | |
| *: vehicle for Canada | ||||
Engine compartment

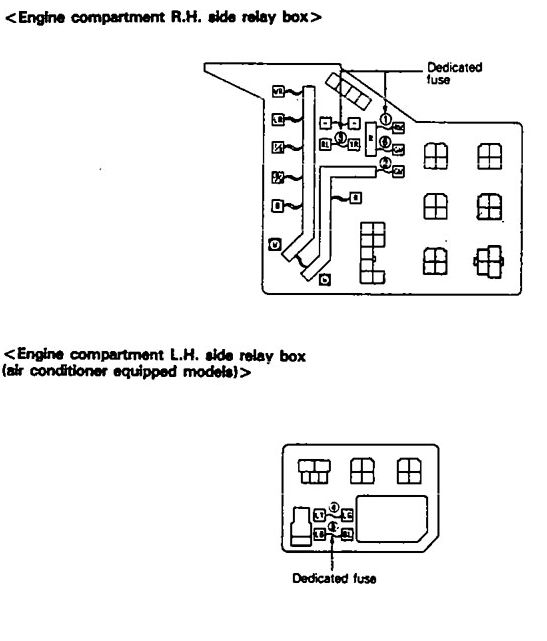

Eagle Talon – fuse box diagram – engine compartment
| Power supply circuit | No. | A | Housing color | Circuit | |
| Sub fusible link (7) | 1 | 10 | Red | Taillight circuit | |
| Battery | 2 | 10 | Red | Hazard warning light circuit | |
| Headlight relay | 3 | 10 | Red | Upper beam circuit | |
| Sub fusible link (5) | 4 | 10 | Red | Air conditioner magnetic clutch circuit | |
| Sub fusible link (3) | 5 | 20 | Yellow | Condernser fan motor circuit | |
| Sub fusible link (7) | 6 | 15 | Blue | Foglight circuit | |

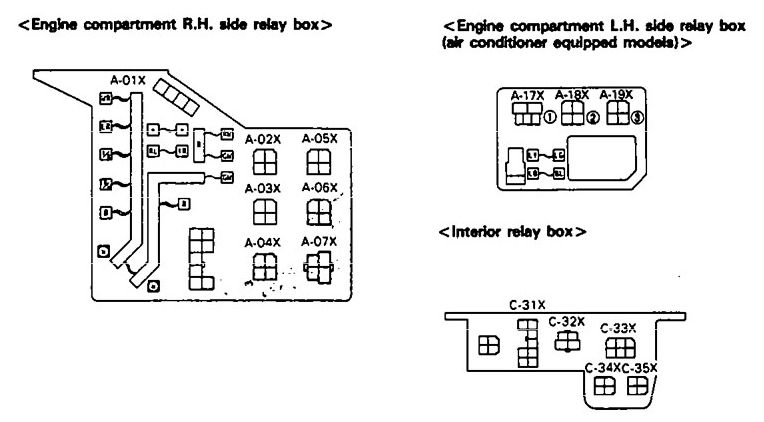

Centralized Relay Block
Engine compartment
| Classification | Name | |
| Engine compartment R.H side relay box | A-01X | IOD or strange connector |
| A-02X | Taillight relay | |
| A-03X | Headlight relay | |
| A-04X | Power window relay | |
| A-05X | Foglight relay | |
| A-06X | Radiator fan motor relay | |
| A-07X | Alternator relay | |
| Engine compartment L.H side relay box | A-17X | Condenser fan motor high-low changeover relay |
| A-18X | Condenser fan motor relay | |
| A-19X | Magnetic clutch relay | |
| Interior relay box | C-31X | Door lock relay |
| C-32X | Starter relay <M/T> | |
| C-33X | Defogger timer | |
| C-34X | Daytime running light relay 1* | |
| C-35X | Daytime running light relay 2* | |
| (1) *1: vehicle for Canada (2) IOD: Ignition Off Draw |
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
