Eagle Premier (1990 – 1991) – fuse box diagram
Year of production: 1990, 1991
Fuse box diagram
Eagle Premier – fuse box diagram
(Version 1)
| No |
Color |
A |
Description |
| 1 |
— |
— |
— |
| 2 |
Blue |
15 |
MIRRORS, CHIME, IODVMM, COURTESY LAMPS, TRIP COMPUTER, RADIO, DEKLID RELEASE, KEYLESS ENTRY, DOME LAMP, ILL. ENTRY MODULE, UNDERHOOD GLOVE BOX-TRUNK, LAMPS, VDS MODULE |
| 3 |
Orange |
5 |
BACK-UP LAMPS |
| 4 |
Orange |
5 |
VANITY LAMPS |
| 5 |
Yellow |
20 |
RADIO, CIGAR LIGHTER, RADIO LAMP |
| 6 |
ORANGE |
5 |
— |
| 7 |
VIOLET |
7,5 |
AUTOMATIC TRANSMISSION |
| 8 |
Blue |
15 |
TRIP COMPUTER, VMM, CHIME SYSTEM ILLUMINATION ENTRY. REAR DEFOGGER RELAY BACK-UP LAMPS, CLOCK, TRANSMISSION COMPUTER (IGNITON) |
| 9 |
Blue |
15 |
LAMP CONTROL SYSTEM (IGNITION) |
| 10 |
Red |
10 |
INSTRUMENT CLUSTER DISPLAYS, HEATER CONTROLS LAMP OUTAGE MODULE, HEATER A/C CONTROLS, PASSIVE RESTRAINT MODULE |
| 11 |
— |
— |
— |
| 12 |
Yellow |
20 |
STOP/TURN, HAZARD PARK, SIDe MARKER AND LICENSE LAMPS (LEFT SIDE) |
| 13 |
Violet |
3 |
INSTRUMENT PANEL ILLUMINATION LCD |
| 14 |
Violet |
3 |
INSTRUMENT PANEL ILLUMINATION, CLOCK, HEATER REAR WINDOW |
| 15 |
Red |
10 |
INSTRUMENT CLUSTER |
| 16 |
Green |
30 |
REAR DEFOGGER, POWER ANTENNA |
| 17 |
— |
— |
— |
| 18 |
Yellow |
20 |
STOP/TURN, PARK SIDE MARKER AND LICENSE LAMPS (RIGHT SIDE) |
| 19 |
Red |
10 |
(BATTERY) PASSIVE RESTRAINT SYSTEM |
| 20 |
White |
20 |
STOP/TURN, HAZARD, PARK, SIDE MARKER AND LICENSE LAMPS (RIGHT SIDE) |
| 21 |
Circuit Breaker |
— |
HEADLAMPS |
| 22 |
Circuit Breaker |
— |
POWER SEAT, POWER DOOR LOOCKS |
Version 2
| No |
Color |
A |
Description |
| 1 |
Violet |
3 |
LEFT AND RIGHT PODS, CLUSTER ILLUMINATION CONSOLE, RADIO, COMPACT DISC PLAYER |
| 2 |
Violet |
3 |
TRIP COMPUTER, VMM, CLIMATE CONTROL DISPLAY, RADIO, COMPACT PLAYER |
| 3 |
Yellow |
20 |
INTERMITTENT WIPER MODULE, WINDSHIELD WIPERS |
| 4 |
Red |
10 |
RADIO, COMPACT DISC |
| 5 |
Violet |
3 |
LIGHTING CONTROL MODULE |
| 6 |
Yellow |
20 |
CHIME, CLOCK KEYLESS ENTRY, VMM, TRIP COMPUTER, POWER MIRRORS, UNDERHOOD; COURTESY, REAR, GLOVE BOX, DOME/READING, TRUNK, VANITY LAMPS; POWER DOOR LOCKS, ATC CONTROL MODULE, RADIO, POWER MIRRORS, ILLUMINATED ENTRY, DECK LID RELEASE SOLENOID |
| 7 |
Yellow |
20 |
CHIME, CLOCK, INSTRUMENT CLUSTER, CRUSIE, INDICATOR, VMM, ILLUMINATED ENTRY RELAY MODULE, TRIP COMPUTER, CRUSIE CONTROL, SERVO |
| 8 |
Yellow |
20 |
POWER MIRRORS |
| 9 |
Yellow |
20 |
ANTI-LOCK, CONSOLE, HORNS, PASSIVE RESTRAINT MODULE, POWER ANTENNA, DIAGNOSTIC CONNECTOR |
| 10 |
Brown |
7,5 |
RIGHT SIDE FRONT AND REAR EXTERIOR LAMPS |
| 11 |
— |
— |
— |
| 12 |
Red |
10 |
CHMSL, BRAKE SWITCH |
| 13 |
— |
— |
— |
| 14 |
Blue |
15 |
CLIMATE CONTROL MODULE AND DISPLAY |
| 15 |
Red |
10 |
LAMP OUTAGE MODULE, LEFT SIDE FRONT AND REAR EXTERIOR LAMPS |
| 16 |
— |
— |
— |
| 17 |
— |
— |
— |
| 18 |
— |
— |
— |
| 19 |
Red |
10 |
RIGHT LOW BEAM HEADLAMP |
| 20 |
Red |
10 |
LEFT LOW BEAM HEADLAMP |
| 21 |
Circuit Breaker |
22 |
DAYTIME RUNNING LIGHTS (CANADA ONLY) |
| 22 |
Circuit Breaker |
30 |
POWER SEAT, POWER DOOR LOOCKS, PASSIVE RESTRAINT MOTORS |
| 23 |
— |
— |
— |
| 24 |
Circuit Breaker |
30 |
POWER WINDOWS |
| 25 |
— |
— |
— |

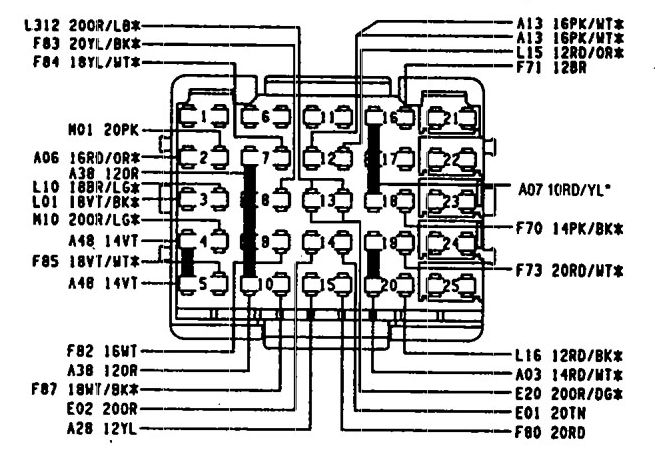

Front of fuse block
Eagle Premier – fuse box diagram (front)
| Fuse |
A |
Colotr |
| 1 |
— |
— |
| 2 |
15 |
RED |
| 3 |
5 |
TAN |
| 4 |
5 |
TAN |
| 5 |
20 |
YELLOW |
| 6 |
— |
— |
| 7 |
7,5 |
TAN |
| 8 |
15 |
NATURAL |
| 9 |
15 |
NATURAL |
| 10 |
10 |
RED |
| 11 |
— |
— |
| 12 |
20 |
YELLOW |
| 13 |
3 |
TAN |
| 14 |
3 |
TAN |
| 15 |
10 |
RED |
| 16 |
30 |
LIGHT GREEN |
| 17 |
15 |
NATURAL (NOT USED) |
| 18 |
20 |
YELLOW |
| 19 |
10 |
RED |
| 20 |
20 |
YELLOW |
| 21 |
22 |
CIRCUIT BREAKER |
| 22 |
30 |
CIRCUIT BREAKER (POWER SEATS/DOOR LOCKS) OPTION |
| 23 |
30 |
CIRCUIT BREAKER (PASSIVE RESTRAINT) OPTION |
| 24 |
30 |
CIRCUIT BREAKER |
| 25 |
30 |
CIERCUIT BREAKER (POWER WINDOW/SUNROOF) OPTION |
Relay
Eagle Premier – fuse box diagram – relay
| Relay location |
Function |
| A |
Power antenna |
| B |
Heated rear window |
| C |
Low beam headlamp |
| D |
High beam headlamp |
| E |
— |
| F |
Illuminated entry |
| G |
Horn |
| J |
Park lamps |
| K |
— |
Eagel Premier – fuse box diagram – relay
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
