Dodge Intrepid (1998 – 2004) – fuse box diagram

Dodge Intrepid (1998 – 2004) – fuse box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2003, 2004

Passenger Compartment Fuse Box

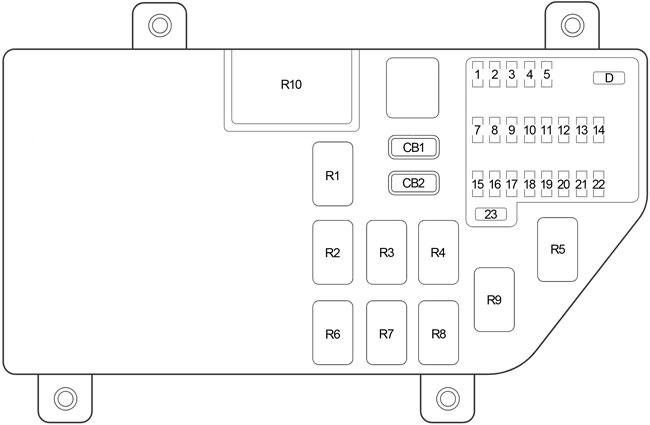

Dodge Interpid - fuse box diagram - passenger compartmernt
Dodge Interpid – fuse box diagram – passenger compartmernt
No.
A
Protected Component
1 10 Powertrain Control Module, Cluster, Data Link Connector, Autostick Switch (300M/Intrepid)
2 10 Right Headlamp (High Beam), Daytime Running Lamp Module (except Export), Headlamp Flasher (Police)
3 10 Left Headlamp (High Beam), Headlamp Flasher (Police)
4 10 Radio
5 10 Wiper Switch, Headlamp Flasher (Police), Body Control Module
6 15 Cigar Lighter, Decklid Release Switch (Police)
7 20 Cluster, Headlamp Dimmer Switch, Park Lamp Relay (Front Park/Turn Signal Lamp, Front Side Marker Lamp (Concorde/LHS), Body Control Module, License Lamp, Tail/Stop Lamp or Tail Lamp or Tail/Turn Signal Lamp)
8 10 Airbag Control Module
9 10 Combination Flasher (Turn Signal)
10 15 ?→’04: Right Headlamp (Low Beam)
10 ’99-’01: Right Headlamp (Low Beam)
11 20 Headlamp Dimmer Switch
12 15 ?→’04: Left Headlamp (Low Beam), Daytime Running Lamp Module (except Export)
10 ’99-’01: Left Headlamp (Low Beam), Daytime Running Lamp Module (except Export)
13 10 Fuel Pump Relay, Powertrain Control Module
14 10 Cluster, Brake Transmission Shift Interlock Solenoid, Sentry Key Immobilizer Module, Overhead Travel Information System, Automatic Day/Night Mirror, Sunroof Control Module, Body Control Module, Power Mirror Switch, Driver/Passenger Heated Seat Switch
15 10 Daytime Running Lamp Module (except Export)
16 20 Headlamp Switch, Front Fog Lamp Relay, Body Control Module
17 10 Transmission Range Sensor, ABS, Manual/Automatic Temperature Control Head, Daytime Running Lamp Module (except Export)
18 20 Horn Relay, Data Link Connector, Power Amplifier
19 15 ?→’04: Glove Box Lamp, Trunk Lamp, Body Control Module, Auxillary Lighting (Police), Driver Cylinder Lock Switch, Power Mirror Switch, Driver Power Door Lock Switch, Cluster, Analog Clock, Automatic Temperature Control Head, Sun Sensor/VTSS LED, Radio, Sentry Key Immobilizer Module, Decklid Release Switch (Police), Left/Right Visor Vanity Lamp, Overhead Map/Courtesy Lamp, Reading/Courtesy Lamp, Overhead Travel Information System, Passenger Power Window Switch, Door Courtesy Lamp
10 ’99-’01: Glove Box Lamp, Trunk Lamp, Body Control Module, Auxillary Lighting (Police), Driver Cylinder Lock Switch, Power Mirror Switch, Driver Power Door Lock Switch, Cluster, Analog Clock, Automatic Temperature Control Head, Sun Sensor/VTSS LED, Radio, Sentry Key Immobilizer Module, Decklid Release Switch (Police), Left/Right Visor Vanity Lamp, Overhead Map/Courtesy Lamp, Reading/Courtesy Lamp, Overhead Travel Information System, Passenger Power Window Switch, Door Courtesy Lamp
20 20 Stop Lamp Switch
21 10 Air Conditioner Compressor Clutch Relay, Radiator Fan Relay (High Speed), Radiator Fan Relay (Low Speed)
22 10 Airbag Control Module, Left/Right Side Impact Airbag Control Module
23 30 Blower Motor Power Module (ATC), Blower Motor Resistor Block (MTC)
Circuit Breaker
CB1 20 Driver Power Window Switch
CB2 20 Driver/Passenger Power Seat Switch, Memory Heated Seat/Mirror Module, Door Lock relay, Door Unlock Relay, Driver Door Unlock Relay
Relay
R1 Park Lamp
R2 Headlamp (High Beam)
R3 Headlamp (Low Beam)
R4 Front Fog Lamp
R5 Horn
R6 Door Unlock
R7 Door Lock
R8 Driver Door Unlock
R9 Spare
R10 Daytime Running Lamp Module

Engine Compartment Fuse Box

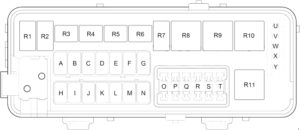

Dodge Interpid - fuse box diagram - engine compartment

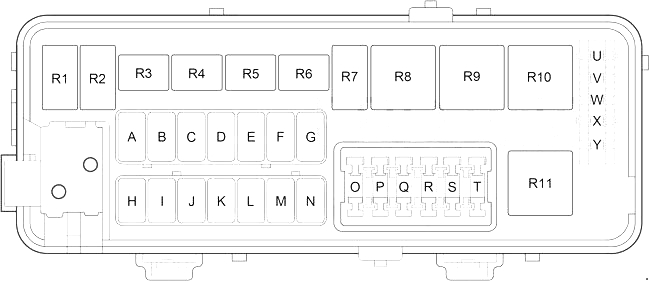

Dodge Interpid – fuse box diagram – engine compartment
No.
A
Protected Component
A 50 Rear Window Defogger Relay, Body Control Module, Manual Temperature Control Head
B 40 ?→’04: Air Conditioner Compressor Clutch Relay, Radiator Fan Relay (High Speed)
30 ’99-’01: Air Conditioner Compressor Clutch Relay, Radiator Fan Relay (High Speed)
C 30 High Beam Headlamp Relay (Fuse: “2”, “3”), Fuse: “15”, “16”
D 40 Low Beam Headlamp Relay (Fuse: “10”, “11”, “12”), “CB2”, Dorr Lock Relay, Door Unlock Relay, Driver Door Unlock Relay
E 40 Radiator Fan Relay (Low Speed)
F 30 LHS, 300M (→’04): Fuse “Y”, “X”
20 Intrepid, Concorde: Spare Relay (LHS, 300M (’98→’01→?))
50 Police: Fuse: “U”, “X”, “Y”
G 40 Starter Relay, Fuel Pump Relay, Ignition Switch (Fuse: “1”, “4”, “5”, “6”, “13”, “14”, “21”, “22”, “V”)
H 30 ABS
I 30 Fuse: “19”, “20”
J 40 Ignition Switch (Fuse: “8”, “9”, “17”, “23”, “CB1”)
K 40 ABS
L 40 Fuse: “7”, “18”
M 40 Front Wiper On/Off Relay, Front Wiper High/Low Relay, Body Control Module
N 30 Automatic Shut Down Relay, Powertrain Control Module
O 20 Combination Flasher (Hazard)
P 30 Export: Headlamp Washer Relay, Body Control Module
30 Police: Police Accessory
Q 20 Transmission Control Relay
R 20 Export: Rear Fog Lamp Relay
30 Police: Police Accessory
S 20 Fuel Injector, Ignition Coil, Capacitor, Short Runner Valve Solenoid (3.5 L), Manifold Tuning Valve
T 20 Powertrain Control Module
U 20 Police: Police Accessory
V 10 Starter Relay, Powertrain Control Module
W 10 Automatic Shut Down Relay
X 20 LHS, 300M: Spare Relay
20 Police: Spot Lamp No.1
Y 15 LHS, 300M: Power Outlet
20 Police: Spot Lamp No.2, Underhood Lamp
Relay
R1 Fuel Pump
R2 Front Wiper On/Off
R3 Transmission Control
R4 Starter
R5 Export: Rear Fog Lamp
R6 Air Conditioner Compressor Clutch
R7 Front Wiper High/Low
R8 Export: Headlamp Washer
R9 Radiator Fan (Low Speed)
R10 Automatic Shut Down
R11 Radiator Fan (High Speed)

Additional Fuse Box (Police)

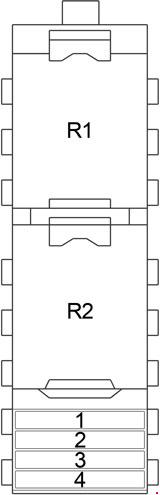

Dodge Interpid - fuse box diagram - additional fuse box (police)
Dodge Interpid – fuse box diagram – additional fuse box (police)
No.
A
Protected Component
1 20 Police Accessory
2 20 Police Accessory
3 20 Police Accessory
4  –
Relay
R1 ISO No.1
R2 ISO No.2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
