Dodge D/W 350 (1981 – 1993) – fuse box diagram

Dodge D/W 350 (1981 – 1993) – fuse box diagram

Year of production: 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Fuse box

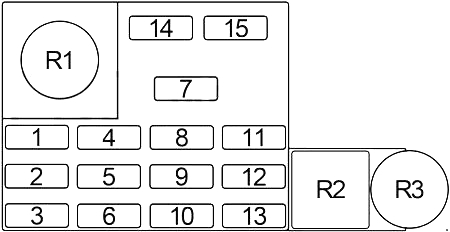

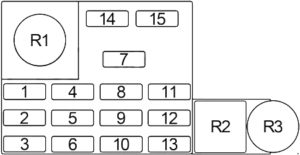

Dodge D/W 350 - fuse box diagram
Dodge D/W 350 – fuse box diagram
No. A
Protected Component
1 2 ’92-’93: Speed Control
30 ’83-’91: A/C-Heater Blower Motor
2 5 ’92: Instrument Panel Warning Lights, Gauges, Buzzer, Overdrive Module, Wait-To-Start, Water-In Fuel Indicator (Diesel), Fuel Lights
30 ’88-’91: Power Windows
5 ’83-’87: Cluster Illumination, Switch Lights, Snow Plow Light, 4WD Light, Radio, Clock & Ash Tray
3 20 ’92-’93: Back-Up Lights, Rear Window Defogger & Timer
20 ’87-’91: Hazard Flasher
15 ’83-’86: Hazard Flasher
4 20 ’91-’93: Exterior Lights, Radio Light, Horn Relay
10 ’85-’90: Radio, Clock (Power)
5 ’83-’84: Radio
5 20 ’91-’93: Stoplights, Buzzers Anti-Lock Brake Module
20 ’87-’90: Turn Signals, Snow Plow Control, Transmission Oil Temperature Light, Anti-Lock Brake Module (’89-’90)
15 ’83-’86: Back-Up Lights, Turn Signal Indicator
6 20 ’91-’93: Power Door Locks
20 ’87-’90: Windshield Wipers, A/C Clutch (Diesel)
20 ’83, ’85-’86: A/C Clutch, Maintenance Reminder Light, Speed Control, Transmission Oil Temperature Lamp, Snow Plow Control Solenoids
7 15 ’91-’93: Cigarette Lighter
15 ’90: Horn Relay
20 ’87-’89: Horn Relay, Cigarette Lighter, Radio (’87), Clock Memory (’87), Key-In Warning Buzzer (’87), Headlight Warning Buzzer (’87)
20 ’85-’86: Trailer Lights Circuit
20 ’83: Maintenance Reminder Electronics
8 10 ’91-’93: Radio, Clock
25 ’83-’90: Clearance & ID Lights, Taillights, Park, Side Marker & License Lights, 4WD Indicator Module (’83-’84)
9 20 ’91-’93: Snow Plow Acc. (’91-’92); Turn Signals, RWAL Module
20 ’88-’90: Stop, Key-In Buzzer, Headlight-On Buzzer, Anti-Lock Warning Light (’89-’90)
20 ’87: Dome, Map, Cargo & Courtesy Lights (1987).
20 ’83-’86: Stop Light, Dome Light, Map Light, Courtesy Light, Horn, Horn Relay, EMR Buzzer, Cargo Light, Glove Box Ligh, Clock Memory, Radio Memory
10 20 ’91-’93: Windshield Wipers, Diesel A/C Clutch (’91)
30 ’88-’90: Power Door Locks
30 ’83-’87: Power Windows, Door Locks
11 30 ’92-’93: A/C-Heater Blower Motor
2 ’91: Speed Control
10 ’88-’90: Windshield Wiper/Washer Relay (’88), Radio Memory, Clock Memory, Power Mirrors Glove Box, Dome Lights, Courtesy Lights, Map Lights, Cargo Lights
5 ’97: Power Window Relay, Speed Control Relay, 4WD indicator Light (1987).
3 ’85-’86: 4WD Indicator Light
3 ’83: Liftgate Ajar, Power Window Relay, Clock Display
12 30 ’92-’93: Power Windows
5 ’89-’91: Brake Warning, Seat Belt Light, Seat Belt Buzzer, Fuel Gauge, Oil Gauge, Temperature Gauge, Oil Warning Light, Temperature Warning Light, Speed Control, OD Module, Check Engine, 4WD, Anti-Lock, Low Fuel, Lift Gate, Diesel-Wait & Water-In-Fuel Lights
5 ’87-’88: Brake Warning, Seat Belt Light, Seat Belt Buzzer, Fuel Gauge, Oil Gauge, Temperature Gauge, Speed Control (’88)
3 ’83-’86: Brake Warning, Seat Belt Light, Seat Belt Buzzer, Fuel Gauge, Oil Gauge, Temperature Gauge
13 20 ’92-’93: Hazard Flasher
20 ’87-’91: A/C Clutch (’87-’88), Idle Stop Solenoid (’88), Back-Up Lights, Rear Window Defogger Timer, Rear Window Defogger Switch
14 3 ’93: Illumination Lights
3 ’90-’92: Instrument Panel Lights
3 ’88-’89: A/C, Heater, Headlight Switch, Ash Receiver, Snow Plow, Radio, Clock, OD Switch
15 10 ’91-’93: Radio Memory, Clock Memory, Power Mirror Interior Lights, Underhood Light
15 ’90: Cigarette Lighter
Relay
R1 Turn Signal Flasher
R2 Horn
R3 Hazard Flasher



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
