Dodge D/W 300 (1965 – 1971) – fuse box diagram

Dodge D/W 300 (1965 – 1971) – fuse box diagram

Year of production: 1965, 1966, 1967, 1968, 1969, 1970, 1971

Fuse box

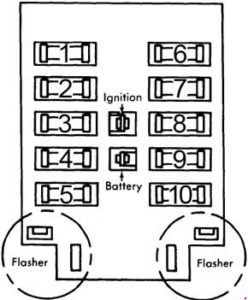

Dodge D/W 300 - fuse box diagram
Dodge D/W 300 – fuse box diagram

A
Protected Component
1 Accessories
2 6 Radio, Back-Up Light
3 20 Air Conditioner, Heater
4 20 Horn
5 20 Turn Signal
6 2 Instrument Light
7 20 Stop Light, Dome Light, Brake Sentinel
8 20 Tail Light, Park Light, Side Light
9 20 Cigar Lighter
10 20 Emergency Flasher
  • Circuit breaker is incorporated into headlight switch. Additional circuit breaker is integral with windshield wiper switch.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
