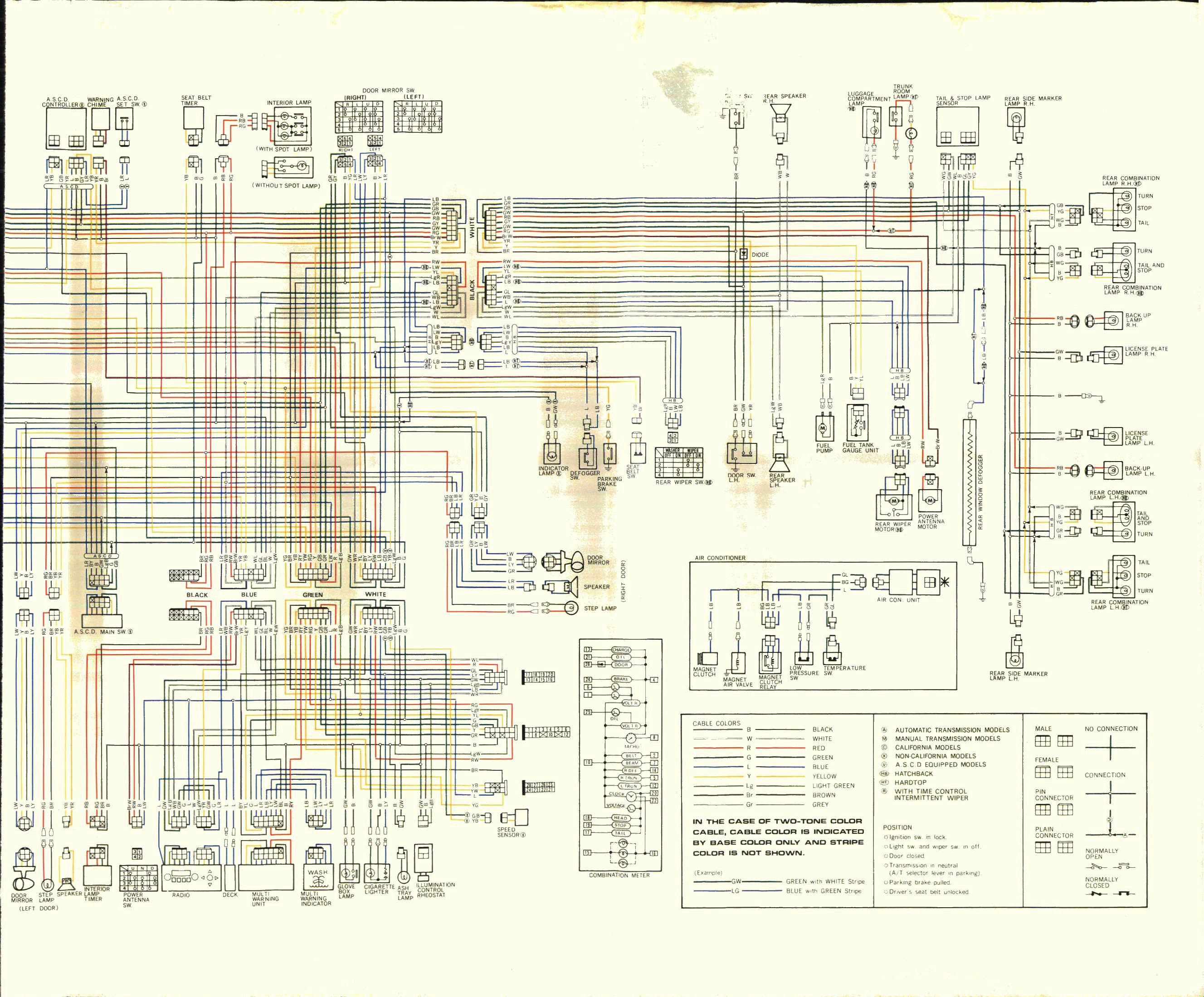

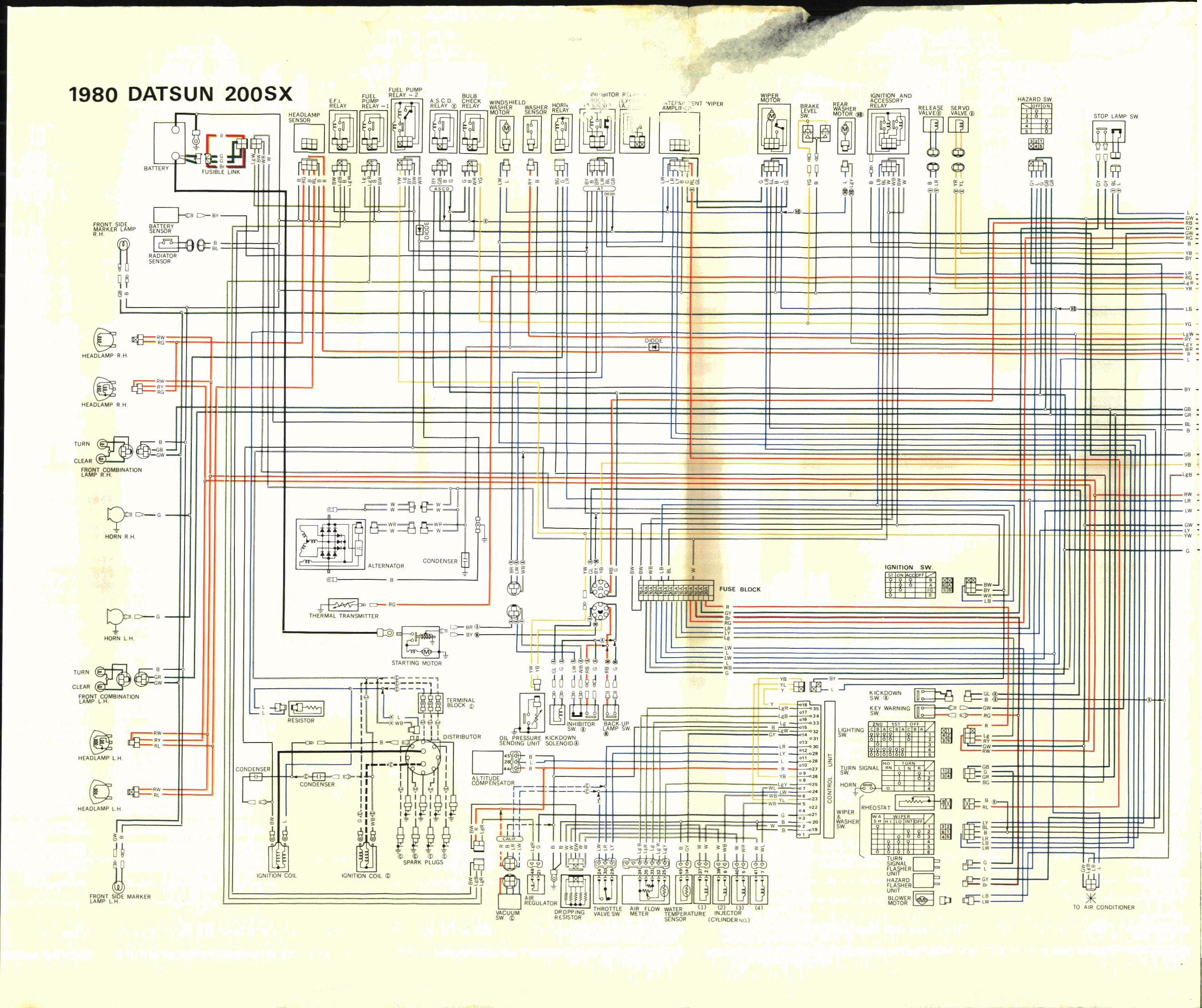

Datsun 200SX (1980) – wire diagram
Year of production: 1980
Wire diagram
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Datsun 200SX (1980) – wire diagram
