Daewoo Cielo – fuse box diagram

28 June 2019 admin Cielo, Daewoo 0

Daewoo Cielo – fuse box diagram

Year of production: 2004

Passenger compartment

The fuse box is located to the right of the steering column under a cover.

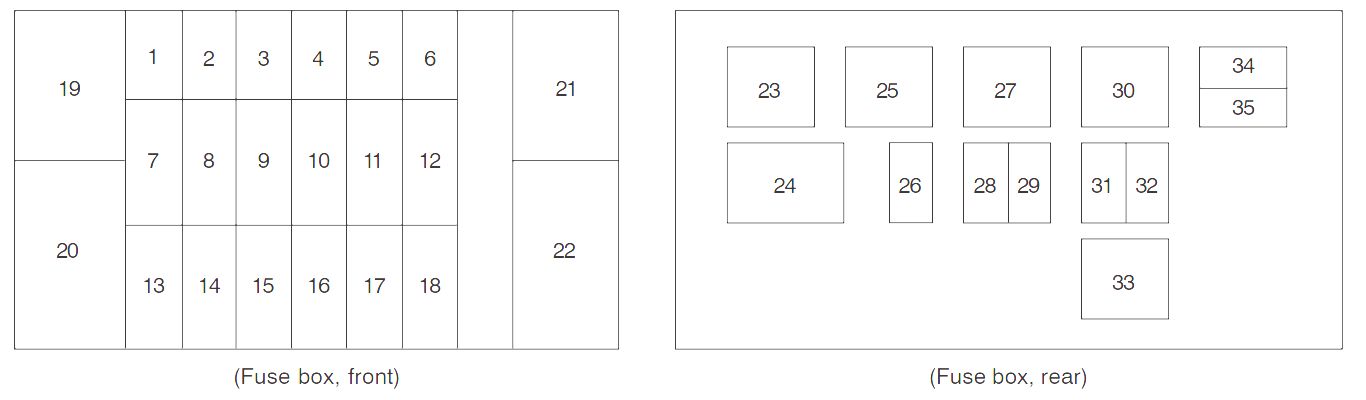

Daewoo Cielo - fuse box diagram - passenger compartment
Daewoo Cielo – fuse box diagram – passenger compartment
Fuse [A] Circuit protected
1 10 ECM(batt)
2 10 Parking and tail lamps, licence plate lamp
3 10 Air bag*
4 20 High beam
5 10 Low beam(left)
6 10 Low beam(right), head lamp leveling device*
7 30 Fuel pump
8 20 Turn signal lamps, hazard, ABS*(ign.)
9 30 Windshield wipers
10 10 ABS(batt.)*, fuel filler door release
11 10 Air conditioning compressor relay fuse*
12 30 Blower motor fan(low)
13 20 I/P cluster, cigarette lighter, warning chime
14 30 Blower motor fan(high), horn
15 20 Room lamp, antenna
16 30 Power window*
17 10 Radio and cassette*(ign.)
18 30 Auto trunk, central door locking* radio and cassette(batt)
19 — Turn signal relay
20 — Radiator blower motor fan relay-high speed
21 — Fuel pump relay
22 — Fog lamp relay
23 — Blower motor relay
24 — Warning chime relay
25 — Rear window wiper relay(HB)*
26 — Horn relay
27 — Wiper speed control relay*
28 — Air conditioning compressor relay*
29 — Radiator blower motor fan relay-low speed
30 — Rear window defroster time relay
31 — Head lamp relay
32 — Illumination relay*
33 — Window washer pump relay(HB)*
34 30 Blower moter relay fuse*
35 30 Front fog lamp*
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
