Dacia SuperNova (2001 – 2003) – fuse box diagram
Year of production: 2001, 2002, 2003

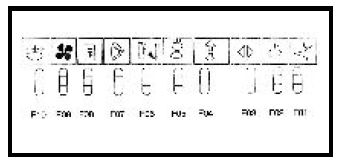

Fuses
| № | A | Component |
|---|---|---|
| F01 | 15 | Clock, radio, STOP contact, climate blower relay control |
| F02 | 5 | Reverse driving contact |
| F03 | 15 | UCE decoder, speed transducer, instrument panel supply, diagnostic socket, AC starting button, UCE anti intrusion |
| F04 | 7,5 | Turning and hazard lights |
| F05 | 5 | Front/rear parking lights, lighting: switches, instrument panel, climate control, documents compartment, cigarette lighter, ashtray, radio |
| F06 | 15 | Cigarette lighter, instrument panel (anti-starting indicator), front right ceiling lamp, UCE anti-intrusion, anti-intrusion indicator, diagnostic socket |
| F07 | 15 | UCE decoder, FLASH relay, anti starting bushing |
| F08 | 20 | Rear window defrosting |
| F09 | 15 | Climate blower |
| F10 | 5 | Left fog lamp |

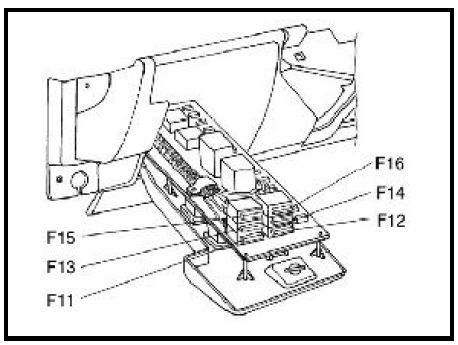

On the fuse box, 6 fuses modules are attached, protecting the following consumers:
| № | A | Component |
| F11 | 10 | Left high beam |
| F12 | 10 | Right high beam, high beam indicator |
| F13 | 10 | Left low beam |
| F14 | 10 | Right low beam, low beam indicator |
| F15 | 15 | Windscreen wiper-washing switch, windscreen wiper timer |
| F16 | 10 | Radio, windscreen wiper motor. |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
