Dacia 1304 – fuse box diagram

Dacia 1304 – fuse box diagram

Year of production:

Fuses

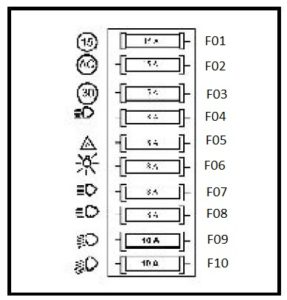

Dacia 1304 – fuse box diagram
Dacia 1304 – fuse box diagram
A Component
F01 15 Rear lights and board panel supply, STOP lights;
F02 15 4×4 electro-vacuum control*, climate control with CA*, speed over-limit 120 km/h indicator relay*, vehicle speed transducer*;
F03 15 GMV climate control, clock;
F04 15 Fog lights, ceiling light, ashtray, windscreen wiper – cleaner
F05 8 Direction and break-down signalization
F06 8 Position lights, lighting of the board panel,ashtray,
lighter, gloves box, clock, switches;
F07 8 Left driving lights;
F08 8 Right driving lights;
F09 10 Left high beam;
F10 10 Right high beam.
* for vehicle with 4×4, CA or speed over-limit indicator.

Electric circuits protected by fuses and relays

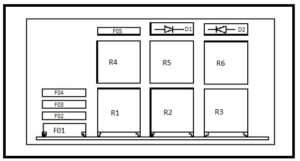

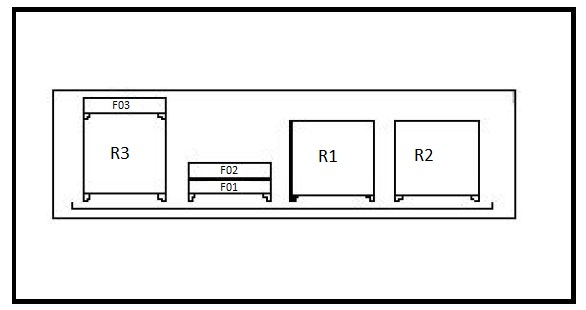

Dacia 1304 – fuse box diagram
Dacia 1304 – fuse box diagram
A Component
F01 10 Fuel electric pump
F02 10 Oxygen rod
F03 15 Fog lights



Relay Component
R1 Oxygen rod, fuel electric pump.
R2 Injection computer, injection witness.
R3* Fog lights
* -for vehicle with fog lights

The vehicles provided with AC system, the fuse box situated in the engine compartment is fixed on the left mudguard coating, having the following configuration.

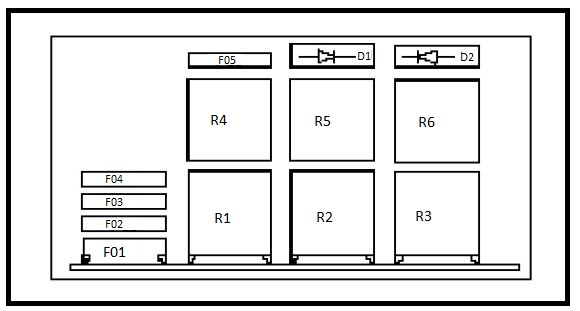

Dacia 1304 – fuse box diagram
Dacia 1304 – fuse box diagram
A Component
F01 10 A.C. compressor
F02 10 Oxygen rod
F03 10 Fuel electric pump
F04 30 G.M.V. cooling
F05* 15 Fog lights
* -for vehicle with fog lights



Diode Type Component
D1 6 A.C. compressor
D2 6 A.C.pressure gauge anti-return



Relay Component
R1 Oxygen rod, fuel electric pump
R2 A.C. compressor
R3 Injection computer, injection witness.
R4* Fog lights.
R5 G.M.V. cooling
R6 Injection computer ( thermo-protection A.C.)
* -for vehicle with fog lights

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
