Citroen C1 (2007) – fuse box diagram
Year of diagram: 2007

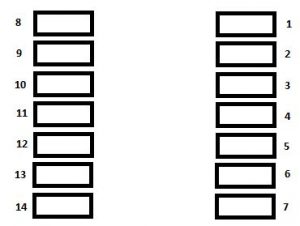

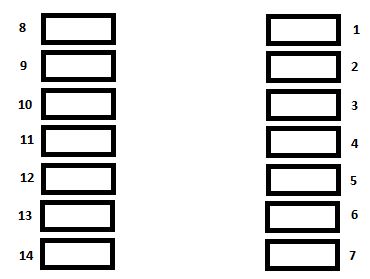

Fuse box under the dashboard
| Fuse | Ampere rating [A] | Functions |
| 1 | 10 | Stoplamps, ABS, SensoDrive gearbox |
| 2 | 25 | Central locking/unlocking |
| 3 | 20 | Heated rear screen |
| 4 | 7,5 | Rear lamps – Number plate lamps – Instrument panel – Display |
| 5 | 7,5 | Diagnostic socket |
| 6 | 7,5 | Rear foglamps – Instrument panel – SensoDrive gearbox |
| 7 | — | Not used |
| 8 | 7,5 | ABS – Power steering – Air conditioning – Cooling fan |
| 9 | 10 | Rear lamps – Central locking/unlocking – Electric windows – Heated rear screen – Speed indicator – Air conditioning – Heating – Rev counter (option) |
| 10 | 20 | Windscreen and rear screen wipe |
| 11 | 15 | Radio – Electronic immobiliser – 12V accessories socket (120 W max.) |
| 12 | 7,5 | Windscreen and rear screen wipe – ABS – Power steering – Central locking/unlocking – Air conditioning – Electric windows – Heated rear screen – Speed indicator – Cooling fan – Rev counter (option) |
| 13 | 15 | Instrument panel – Engine ECU – Airbags – SensoDrive gearbox – Electronic immobiliser |
| 14 | 7,5 | Air conditioning |

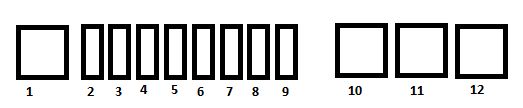

Fuse box under the bonnet
| Fuse | Ampere rating [A] | Functions |
| 1 | 50 | SensoDrive gearbox – Cooling fan (diesel engine) |
| 2 | 20 | Headlamps with daytime-running lamps |
| 3 | 25 | ABS control unit |
| 30 | ESP control unit | |
| 4 | 30 | Ignition switch supply |
| 5 | 10 | Hazard lamps – Instrument panel warning lamps – Direction indicators |
| 6 | 10 | Headlamps |
| 7 | 15 | Speed indicator – Interior lamp – Radio – Instrument panel – Rev counter (option) |
| 8 | 15 | Petrol/diesel engine ECU |
| 25 | ||
| 9 | 10 | Horn |
| 10 | 7,5 | Cooling fan (petrol) |
| 11 | 40 | ABS |
| 50 | ESP | |
| 12 | 15 | Power steering |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
