Chrysler Voyager (2001 – 2007) – fuse box diagram

Chrysler Voyager (2001 – 2007) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Fuse box diagram

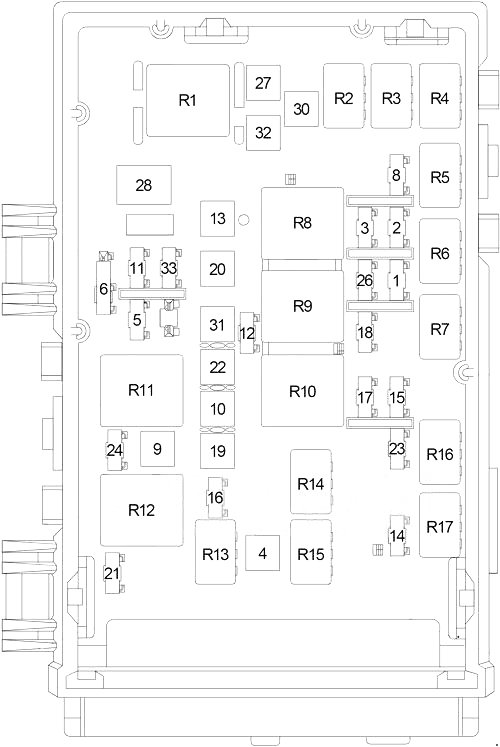

Chrysler Voyager - fuse box diagram
Chrysler Voyager – fuse box diagram
No.
A
Circuit Protected
1 20 Front Fog Lamp Relay, Front Control Module
2 15 except Export: Left Front Park/Turn Signal Lamp, License Lamp, Trailer Tow Connector, Left Rear Lamp Assembly, Front Control Module
15 Export: Left Park Lamp, Left Headlamp Leveling Motor, License Lamp, Left Rear Lamp Assembly, Front Control Module
3 15 except Export: Right Rear Lamp Assembly, Right Front Park/Turn Signal Lamp (except Export), Front Control Module
15 Export: Right Park Lamp, Right Headlamp Leveling Motor, Headlamp Switch, Right Rear Lamp Assembly, Front Control Module
4 30 Front Wiper On/Off Relay (Front Wiper High/Low Relay, Wiper Module), Front Control Module
5 20 Front Cigar Lighter, Radio
6 20 Rear Power Outlet, Flor Console Lamp, Flor Console Power Outlet
8 20 Horn Relay
9 40 Starter Relay, ABS, Front Control Module, Front Blower Motor Relay, Rear Blower Motor Relay, Defogger Relay, Fuse: “14”, “15”
30 ’01: Starter Relay, ABS
10 40 Front Blower Resistor (Manual A/C), Front Blower Module (Automatic A/C)
11 20 Sunroof Module, Rear Wiper Motor, Radio, Amplifier
12 25 Rear A/C Heater Unit (Manual A/C), Rear Blower Motor Power Module (Automatic A/C)
13 40 Rear Window Defogger Relay
14 20 Radio, Front Control Module, Speaker Relay, Body Control Module, Auto Temperature Control, Sentry Key Remote Entry Module, Overhead Console, Adjustable Pedals Switch (except Export), DVD/CD Changer, Thatcham Alarm Module (UK), Siren (UK)
15 ’01: Radio, Speaker Relay, Front Control Module, Body Control Module, Overhead Console, Sentry Key Immobilizer Module, Auto Temperature Control, Sentry Key Remote Entry Module
15 20 Gasoline: Transmission Control Relay (Transmission Solenoid/Pressure Switch Assembly, Powertrain Control Module)
20 Diesel: Lift Pump Relay, Cabin Heater Assist
16 25 Gasoline: Auto Shut Down Relay (Powertrain Control Module, Ignition Coil, Fuel Injector)
25 Diesel: ECM/PCM Relay (Engine Control Module, Generator, Mass Air Flow Sensor, Fuel Pressure Solenoid, Glow Plu Relay, Camshft Position Sensor, EGR Solenoid, Air Conditioner Compressor Clutch, Radiator Fan Relay: No.1, No.2, No.3)
17 20 Gasoline: Powertrain Control Module, Fuel Pump Relay
20 Diesel: Fuel Heater Relay (Crank Case Ventilation Heater, Fuel Heater)
18 15 Air Conditioner Compressor Clutch Relay, Power Mirror Switch, Adjustable Pedals Relay (except Export), Passenger Folding Mirror Relay (Export), Ignition Switch (Export), Thatcham Alarm Module (UK), Sentry Key Remote Entry Module (Export)
20 ’01: Air Conditioner Compressor Clutch Relay, Passenger Folding Mirror Relay (Export), Power Mirror Switch
19 40 Body Control Module
20 40 Body Control Module
30 Amplifier
21 25 ABS
22 40 Power Seat Circuit Breaker (Driver/Passenger Power Seat Switch, Driver/Passenger Heated Seat Module, Memory Seat/Mirror Module)
23 10 Ignition Switch (Sentry Key Remote Entry Module, Park Assist Module, Thatcham Alarm Module (UK))
24 20 Body Control Module, Instrument Cluster, Message Center (Highline), Left/Right Repeater Lamp (Export)
26 20 Stop Lamp Switch
27 40 Gasoline: Radiator Fan Relay
40 Diesel: Radiator Fan Relay No.2
28 40 Power Window Circuit Breaker
30 40 Headlamp Washer Relay (Export), Front Control Module
31 40 Dual Power Sliding Door, Right Power Sliding Door, Left Power Sliding Door
32 40 Sunroof Module (except Export), Power Liftgate Module
33 15 Front Washer Pump Motor, Rear Washer Pump Motor
PTC Fuse
4 8 Left/Right Power Mirror
7 13 Power Outlet, Flor Console Power Outlet, Data Link Connector
Relay
R1  –
R2 Headlamp Washer (Export)
R3 Park Lamp
R4 Horn
R5 Front Fog Lamp
R6 Air Conditioner Compressor Clutch
R7 Gasoline: Fuel Pump
Diesel: Fuel Heater
R8 Rear Window Defogger
R9 Rear Blower Motor
R10 Front Blower Motor
R11 Accessory
R12 Starter
R13 Gasoline: Auto Shut Down
Diesel: ECM/PCM
R14 Front Wiper High/Low
R15 Front Wiper On/Off
R16 Gasoline: Transmission Control
Diesel: Lift Pump
R17 Speaker

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
