Chrysler Sebring mk2 Coupe FL (2003 – 2005) – fuse box diagram

Chrysler Sebring mk2 Coupe FL (2003 – 2005) – fuse box diagram

Year of production: 2003, 2004, 2005

Fuse box in passenger compartment

The fuse block in the passenger compartment is located on the driver’s side at the position shown in the illustration.

Chrysler Sebring mk2 Coupe fuse box – passenger compartment
Chrysler Sebring mk2 Coupe fuse box – passenger compartment
Number Symbol Electrical system Ampere rating [A]
1  Audio Audio 20
2
3  Sunroof Sunroof 20
4  Socket Accessory socket 15
5  Rear-screen-de-icing Rear window defogger 30
6  Heater Heater 30
7
8
9  Socket Accessory socket 15
10  Locking-opening-elements Door lock 15
11  Rear-window-wiper Rear window wiper 15
12
13  Relay Relay 7,5
14  RC-mir Electric remote-controlled outside mirror 7,5
15
16  Cigarette-lighter Cigarette lighter 15
17  Modul-sterujacy-silnika Engine control 7,5
18  Windscreen-washer Windshield wiper 20
19  Heated-door-mirror1 Door mirror heater 7,5
20  Relay Relay 7,5
21  Cruise Cruise control 7,5
22  Reversing-light-and-rear Back up light 7,5
23 Gauge 7,5
24  Modul-sterujacy-silnika Engine control 10
25 Spare 30
20
15
10

Engine compartment Fuse location

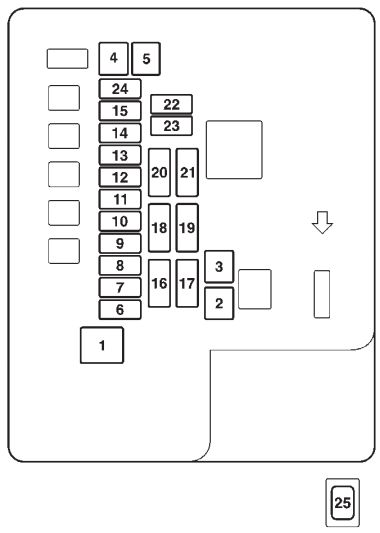

Chrysler Sebring mk2 Coupe – fuse box – engine compartment
Chrysler Sebring mk2 Coupe – fuse box – engine compartment
Number Symbol Electrical system Ampere rating [A]
1  Battery Fuse (+B) 60
2  radiator-fan-motor Radiator fan motor 50
3 ABS Anti-lock braking system 60
4  Ignition-switch Ignition switch 40
5  Electric-windows-control Electric window controls 30
6 Fog-lights Fog lights 15
7
8 Horn Horn 15
9 Modul-sterujacy-silnika Engine control 20
10 Klimatyzacja Air conditioning 10
11 Brake-lights Stop light 10
12  Headlights
13  Battery Alternator 7,5
14  Hazard-warning-flasher Hazard warning flasher 10
15  AT Automatic transaxle 20
16  Headlights Headlights high beam (right) 10
17  Headlights Headlights high beam (left) 10
18  Headlights-low Headlights low beam (right) 10
19  Headlights-low Headlights low beam (left) 10
20  Position-lights Position lights (right) 7,5
21  Position-lights Position lights (left) 7,5
22  Dome-lights Dome lights 10
23 Audio Audio 10
24 Modul-sterujacy-silnika Fuel pump 15
25  DEF Defroster 40

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
