Year of production: 2005, 2006, 2007, 2008, 2009, 2010
Underhood Fuses (Power Distribution Center)
Power Distribution Center is located in the engine compartment; next to the air cleaner filter. A label identifying the components and circuits is located on the underside of the cover.

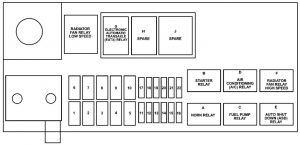

power distribution center
| Fuse | Amp/Color | Description |
| 1 | 30 Amp/Pink | Ignition Start |
| 2 | 40 Amp/ Green | Anti-Lock Brake (ABS) Pump |
| 3 | 40 Amp/ Green | Ignition Run |
| 4 | 30 Amp/Blue | Heated Seats |
| 5 | 40 Amp/ Green | Radiator Fan (Low Speed Turbo only) |
| 6 | 50 Amp/Red | High Speed Radiator Fan (Turbo Only) |
| 7 | 30 Amp/Blue | Anti-Lock Brake (ABS) Solenoid |
| 8 | 40 Amp/ Green | Electric Back Light (EBL) |
| 9 | 40 Amp/ Green | Power Top |
| 10 | 40 Amp/ Green | IP Fuse Block |
| 11 | 10 Amp/Red | Air Conditioning (A/C) |
| 12 | 15 Amp/Lt. Blue | Stop Lights |
| 13 | 20 Amp/ Yellow | Fuel Pump/Auto Shut Down (ASD) |
| 14 | 15 Amp/Lt. Blue | Horn |
| 15 | 20 Amp/ Yellow | Electronic Automatic Transaxle (ETAX) |
| 16 | — | — |
| 17 | 15 Amp/Lt. Blue | Hi Beam |
| 18 | 30 Amp/Blue | Ignition Off Draw (IOD) |
| 19 | 15 Amp/Lt. Blue | Hazard Flasher |
| 20 | 20 Amp/ Yellow | Power Outlets |
| 21 | Spare | |
| 22 | 20 Amp/ Yellow | Fog Lamps (Export Only) |
Interior Fuses
The fuse access panel is on the left side of the instrument panel next to the steering column. A label identifying the components and circuits is located on the inside of the cover.
| Fuse | Amp/Color | Description |
| 1 | 25 Amp/ Natural | Headlamp Switch |
| 2 | 15 Amp/Lt. Blue | Park Lamps |
| 3 | 20 Amp/ Yellow | RKE/Door Locks |
| 4 | 20 Amp/ Yellow | Power Height Adjust |
| 5 | 10 Amp/Red | Airbag Run Only |
| 6 | 10 Amp/Red | B/U Electric Back Light (EBL) NEU SAF |
| 7 | 25 Amp/ Natural | HVAC Blower |
| 8 | 15 Amp/Lt. Blue | Fog Lamp (Non BUX) |
| 9 | 10 Amp/Red | Airbag Run-ST |
| 10 | 10 Amp/Red | Cluster/RKE/SKIM |
| 11 | 10 Amp/Red | Engine Module/ABSTRAC |
| 12 | 10 Amp/Red | PDC Relays/LDP |
| 13 | 10 Amp/Red | Interior Lighting |
| 14 | 20 Amp/ Yellow | Overhead Console/Radio |
| 15 | 20 Amp/ Yellow | Wipers/Comb. FLS |
| 16 | 10 Amp/Red | Auto Stick/Ignition |
| 17 | 15 Amp/Lt. Blue | Heated Seats |
| 18 | 10 Amp/Red | Heated Mirrors |
| 19 | 10 Amp/Red | Rt Headlamp |
| 20 | 10 Amp/Red | Lt Headlamp |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
