Chevrolet Traverse (2012) – fuse box diagram

Year of production: 2012

Engine Compartment Fuse Block

The underhood fuse block is located in the engine compartment, on the passenger side of the vehicle.

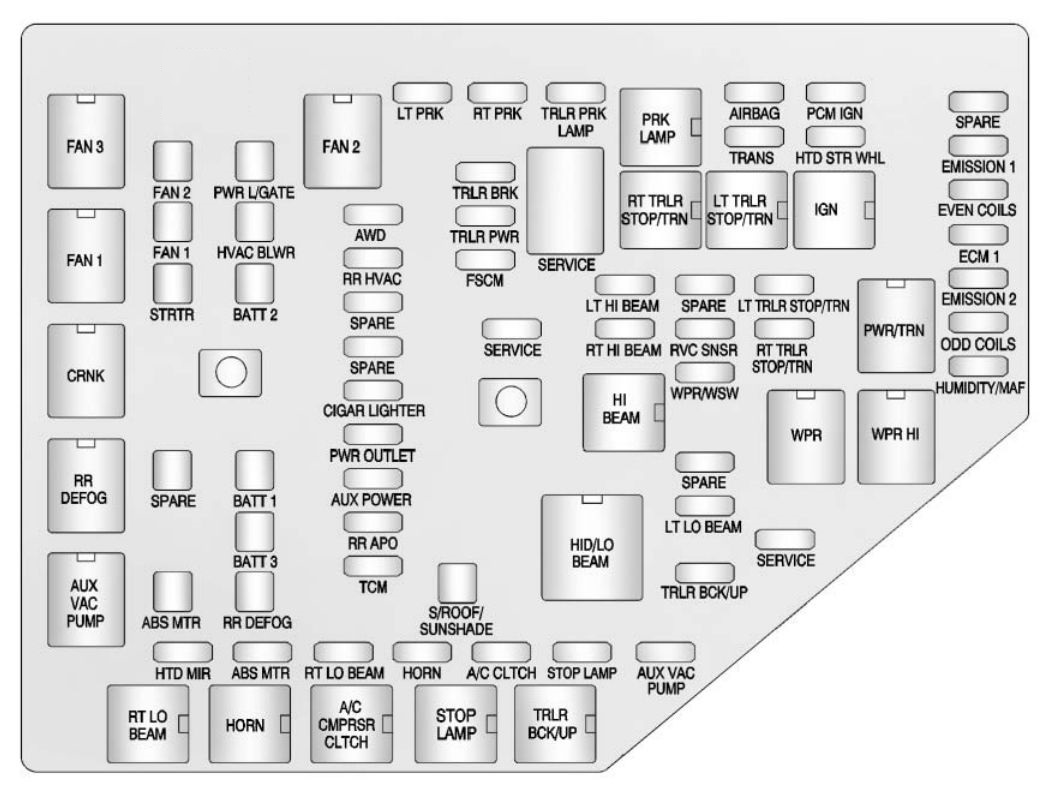

Chevrolet Traverse -  wiring diagram - fuse box diagram - engine compartment
Chevrolet Traverse – wiring diagram – fuse box diagram – engine compartment
Fuses Description
A/C CLUTCH Air Conditioning Clutch
ABS MTR Antilock Braking System (ABS) Motor
AFS Adaptive Forward Lighting System
AIRBAG Airbag System
AUX POWER Auxiliary Power
AUX VAC PUMP Auxiliary Vacuum Pump
AWD All-Wheel-Drive System
BATT 1 Battery 1
BATT 2 Battery 2
BATT 3 Battery 3
CIGAR LIGHTER Cigar Lighter
ECM Engine Control Module
ECM 1 Engine Control Module 1
EMISSION 1 Emission 1
EMISSION 2 Emission 2
EVEN COILS Even Injector Coils
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FOG LAMP Fog Lamps
FSCM Fuel System Control Module
HORN Horn
HTD MIR Heated Outside Rearview Mirror
HUMIDITY/MAF Humidity Sensor/MAF Sensor
HVAC BLWR Heating, Ventilation and Air Conditioning Blower
LT HI BEAM Left High-Beam Headlamp
LT LO BEAM Left Low-Beam Headlamp
LT PRK Left Parking Lamp
LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal
ODD COILS Odd Injector Coils
PCM IGN Powertrain Control Module Ignition
PWR L/GATE Power Liftgate
PWR OUTLET Power Outlet
REAR CAMERA Rear Camera
RR APO Rear Accessory Power Outlet
RR DEFOG Rear Defogger
RR HVAC Rear Climate Control System
RT HI BEAM Right High-Beam Headlamp
RT LO BEAM Right Low-Beam Headlamp
RT PRK Right Parking Lamp
RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal
RVC SNSR Regulated Voltage Control Sensor
S/ROOF/SUNSHADE Sunroof
SERVICE Service Repair
SPARE Spare
Stop Lamps (China Only) Stop Lamps (China Only)
STRTR Starter
TCM Transmission Control Module
TRANS Transmission
TRLR BCK/UP Trailer Back-up Lamps
TRLR BRK Trailer Brake
TRLR PRK LAMP Trailer Parking Lamps
TRLR PWR Trailer Power
WPR/WSW Windshield Wiper/Washer



Relays Usage
A/C CMPRSR CLTCH Air Conditioning Compressor Clutch
AUX VAC PUMP Auxiliary Vacuum Pump
CRNK Switched Power
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
FOG LAMP Fog Lamps
HI BEAM High-Beam Headlamps
HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps
HORN Horn
IGN Ignition Main
LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp
PRK LAMP Park Lamp
PWR/TRN Powertrain
RR DEFOG Rear Window Defogger
RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp
Stop Lamps (China Only) Stop Lamps (China Only)
TRLR BCK/UP Trailer Back-up Lamps
WPR Windshield Wiper
WPR HI Windshield Wiper High Speed



Instrument Panel Fuse Block

The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle.

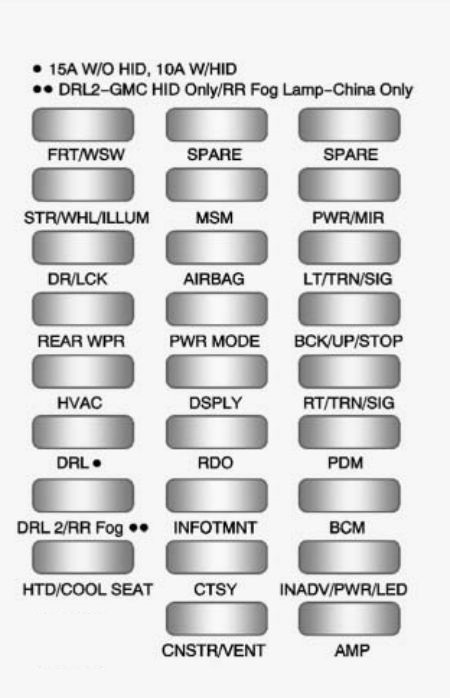

Chevrolet Traverse - wiring diagram - fuse box diagram - instrument panel (fuse side)
Chevrolet Traverse –
wiring diagram – fuse box diagram – instrument panel (fuse side)
Fuses Description
AIRBAG Airbag
AMP Amplifier
BCK/UP/STOP Back-up Lamp/Stoplamp
BCM Body Control Module
CNSTR/VENT Canister Vent
CTSY Courtesy Lamps
DR/LCK Door Locks
DRL Daytime Running Lamps
DRL 2 GMC HID Only (If Equipped)/Rear Fog Lamps-China Only
DSPLY Display
FRT/WSW Front Windshield Washer
HTD/COOL SEAT Heated/Cooling Seats
HVAC Heating, Ventilation and Air Conditioning
INADV/PWR/LED Inadvertent Power LED
INFOTMNT Infotainment
LT/TRN/SIG Driver Side Turn Signal
MSM Memory Seat Module
PDM Power Mirrors, Liftgate Release
PWR MODE Power Mode
PWR/MIR Power Mirrors
RDO Radio
REAR WPR Rear Wiper
RT/TRN/SIG Passenger Side Turn Signal
SPARE Spare
STR/WHL/ILLUM Steering Wheel Illumination

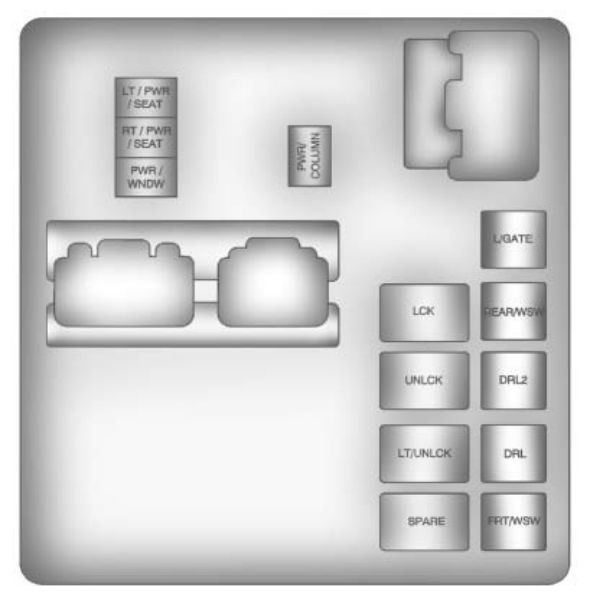

Chevrolet Traverse - wiring diagram - fuse box diagram - instrument panel (relay side)
Chevrolet Traverse – wiring diagram – fuse box diagram – instrument panel (relay side)
Relays Description
LT/PWR/SEAT Driver Side Power Seat Relay
RT/PWR/SEAT Passenger Side Power Seat Relay
PWR/WNDW Power Windows Relay
PWR/COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW Rear Window Washer Relay
UNLCK Power Unlock Relay
DRL2 Daytime Running Lamps 2 Relay (If Equipped)
LT/UNLCK Driver Side Unlock Relay
DRL Daytime Running Lamps Relay (If Equipped)
SPARE Spare
FRT/WSW Front Windshield Washer Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
