Chevrolet Monte Carlo (1997) – fuse box diagram
Year of production: 1997

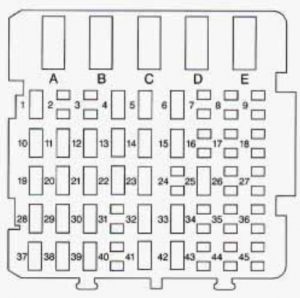

Instrument Panel Fuse Block
| Circuit Breaker | Usage |
| C | Power Windows |
| D | Power Seats |
| Fuse | Description |
| 1 | CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter |
| 4 | WAC– WAC Control Assembly Solenoid Box, Mix Motor, DRL Module, HVAC Control Head, Blower Control Switch |
| 5 | HAZARD FLASHER |
| 6 | R.H. SPOT LAMP (S.E.O.) |
| 10 | UP ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft-Deterrent Module, Radio, ALDL |
| 11 | STARTER RELAY |
| 12 | ANTI-THEFT — Theft Deterrent Module |
| 13 | ABS — Electronic Brake Control Module (EBCM), ABS Relay |
| 14 | HVAC BLOWER MOTOR — Blower Motor Relay |
| 15 | L.H. SPOT LAMP (S.E.O.) |
| 19 | POWER ACCESSORY (Power)#l — Door Lock Switches, Trunk Courtesy Lamp, O/S Mirror Switch |
| 20 | POWER ACCESSORY #2–(Sunroof) Control Unit |
| 21 | AIR BAG — Air Bag System |
| 22 | CRUISE CONTROL–Cruise Control Cut-Out Switch |
| 23 | STOPLAMPS — TCC/Brake Switch |
| 25 | ENGLISWMETRIC (S.E.O.) |
| 28 | CTSY LAMPS — Vanity Mirrors, IP Compartment Lamp, Header Courtesy and Reading Lamp, US Lighted Rearview Mirror, Dome Lamp |
| 29 | WIPER — Wiper Switch |
| 30 | TURN SIGNAL — Turn Signal Flasher |
| 32 | POWER LOCKS — Door Lock Relay, Keyless Entry Receiver |
| 33 | DRL MODULE |
| 37 | REAR DEFOG–HVAC Control Assembly Rear Window Defogger Switch |
| 38 | RADIO — Radio, Steering Wheel Radio Switches, Power Drop |
| 39 | I/P ELECTRONICS IGNITION FEED — Headlamp Switch, TCCBrake Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, BTSI SwitchUnderhood Electrical Center – Passenger Side |
| 41 | POWER DROP |
| 42 | ENHANCED EVAP. SOLENOID |

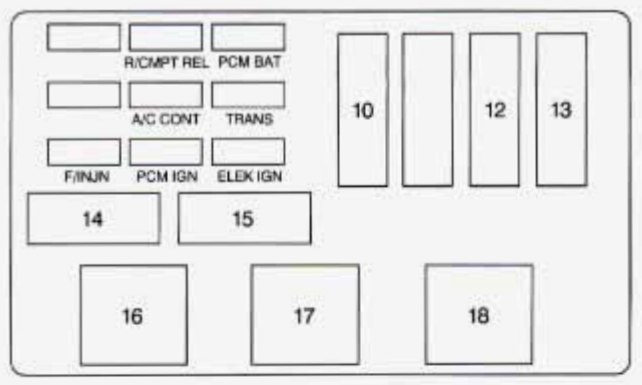

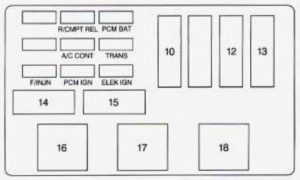

Underhood Electrical Center — Passenger’s Side
| Fuse | Description |
| R/CMPT REL | Remote Trunk Release, Back-Up Lamps |
| PCM BAT | Powertrain Control Module (PCM), Fuel Pump, Fuel Pump Relay, Fan Cont#l and #2 Relay |
| A/C CONT | A/C CMPR Relay (VIN M only) |
| TRANS | Automatic Transaxle, Transaxle Range Switch (VIN M only) |
| F/INJN | Fuel Injectors |
| PCM IGN | Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, Vacuum Canister Switch |
| ELEK IGN | Electronic Ignition (EI) Control Module |
| 10 | I/P Fuse Block |
| 12 | Passenger’s Side Underhood Electrical Center, FPMP Relay, Cooling Fans #I and #2, Ignition Relay, P/N Switch |
| 13 | FAN CONT #1 Relay |
| Relay | Description |
| 14 | FUEL PUMP |
| 15 | A/C CMPR |
| 16 | FAN CONT #2 — Secondary Cooling Fan (Passenger Side) |
| 17 | FAN CONT #1– Primary Cooling Fan (Driver Side) |
| 18 | Ignition Relay |

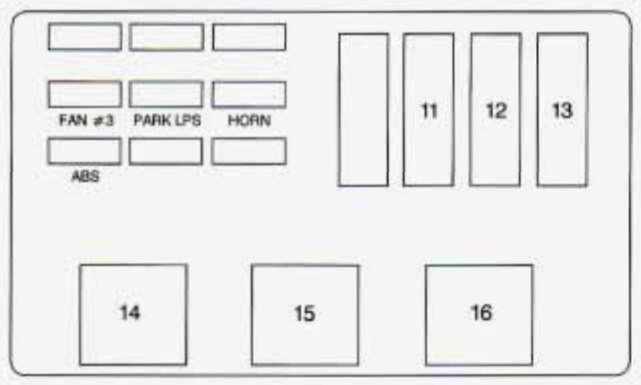

Underhood Electrical Center — Driver Side
| Fuse | Usage |
| FAN#3 | FAN CONT #3 Relay |
| PARK LPS | Headlamp Switch |
| HORN | Horn Relay, Underhood Lamp |
| ABS | Anti-Lock Brake System |
| 11 | IGN SW1 — I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses PWR WDO and Circuit Breaker D; Passenger’s Side Underhood Electrical Center: F/IJN, ECM IGN, TCC, ENG EMIS and ELEK IGN Fuses |
| 12 | HD LPS — Circuit Breaker to Headlamp Switch |
| 13 | ABS — ABS Relay |
| Relay | Description |
| 14 | ABS — Anti-Lock Brake System |
| 15 | FAN CONT #3 — Secondary Cooling Fan (Passenger’s Side) |
| 16 | HORN |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
