Chevrolet Monte Carlo (1978 – 1980) – fuse box diagram

Chevrolet Monte Carlo (1978 – 1980) – fuse box diagram

Year of production: 1978, 1979, 1980

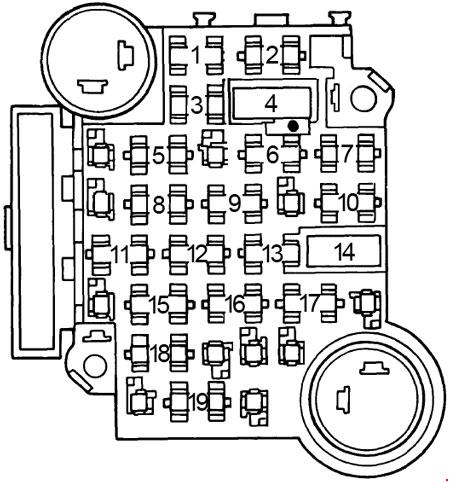

Fuse Box diagram

Chevrolet Monte Carlo - fuse box diagram
Chevrolet Monte Carlo – fuse box diagram
No.
A
Circuit Protected
1 5 Instrument panel lights, alarm buzzer, heater dial light
2 20 Choke heater
3 5 Instrument panel lights, heater dial light
4 30 Circuit breaker: Power windows, sunroof
5  –
6 25 Heater and air conditioning
7 10 Electronic Control Module
8  –
9 25 Windshield wipers
10 20 Stop light, hazard light, courtesy light, dome light, glove box light, engine compartment light
11 10 Cruise control, rear window defogger, gauges, closed loop, warning lamps, warning buzzers, tailgate unlock
12 20 Parking light, side marker light, license light, tail light
13 10 Radio, idle stop solenoid, delay wipers
14 30 Circuit breaker: Power door locks, power seats, rear window defogger, tailgate lock
15 20 Back-up light, turn signal light
16 20 Luggage compartment light, cigar lighter, clock, courtesy lights, key warning buzzer, closed loop, dome light, reading lights
17  –
18  –
19  –

Circuit Breaker:

   Headlights — Circuit breaker is integral with headlight switch to protect headlight circuit.
Windshield Wiper — Circuit breaker integral with windshield wiper switch to protect wiper circuit.
Power Seats, Power Windows & Power Door Locks — Circuit breaker is located on fuse panel to protect power accessories.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
