Chevrolet Corvette (2015) – fuse box diagram

15 January 2018 admin Chevrolet, Corvette 0

Year of production: 2015

Engine compartment fuse block

There is one fuse block in the engine compartment on the passenger side of the vehicle.

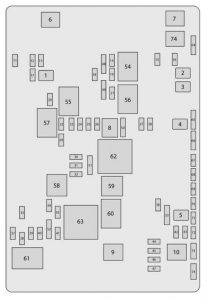

Chevrolet Corvette - wiring diagram - fuse box - engine compartment
Chevrolet Corvette – wiring diagram – fuse box – engine compartment
Micro J-Case Fuses Usage
1 Front Wiper
2 Starter
3 Antilock Brake System Valves
4 Engine Control Module
5 Electric Parking Brake
J-Case Fuses Usage
6 Front Heater, Ventilation, and Air Conditioning
7 Antilock Brake System Pump
8 Logistics
9 Vacuum Pump
10 Electronic Rear Differential Module
74 Transmission Cooling Fan 2
Micro Fuse 2-pin Usage
11 Heated Seat 1
12 Column Lock Module
13 Steering Column
14 Glove Box
15 Engine Inside Position
16 Body Control Module 6
17 Heater, Ventilation and Air Conditioning Controls
18 Body Control Module 5
19 Heated Seat 2
20 Body Control Module 7
21 Electric Steering Column Lock
22 Display
23 Auxiliary Outlet
24 Radio
25 Instrument Cluster HUD
26 Inside Rearview Mirror
27 Odd Ignition
28 Even Ignition
29 Data Link Connector
30 Seat Fan
31 Fuel Pump Power Module
32 Exhaust Valve 1
33 Horn
34 Headlamp Washer
35 Air Conditioning Compressor Clutch
36 Engine Outside Position
37 Real Time Damping
38 Intercooler
39 Left Headlamp
40 Right Headlpamp
41 Headlamp Washer Pump
42 Exhaust Valve 2
43 Reverse Lockout
44 Electric Rear Differential Module
45 Rear Transmission Cooler Fan
46 Transmission Control Module
47 Canister Vent
Micro Fuses 3-pin Usage
48 Integrated Chassis Control Module/Automatic Occupant Sensing
49 Theft/Vehicle Interface Module
50 Engine/Transmission
51 Instrument Cluster
52 Headlamp High Beam
53 Transmission Control Module/Engine Control Module



Micro Relay Usage
54 Starter
55 Front Wiper Low/High
56 Run/Crank
57 Front Wiper Motor
58 Headlamp Washer
59 Air Conditioning Control
60 Logistics 1
61 Headlamp Low
Mini Relays Usage
62 Engine Control Module
63 Vacuum Pump
Spare fuses Usage
64 Spare
65 Spare
66 Spare
67 Spare
68 Spare
69 Spare
70 Spare
71 Spare
72 Spare
73 Spare

Rear Compartment Fuse Block

The rear compartment fuse block is in the rear of the vehicle, under the load floor. Lift the carpet and access door in the center of the load floor to access the fuses.

Chevrolet Corvette - wiring diagram - fuse box - rear compartment
Chevrolet Corvette – wiring diagram – fuse box – rear compartment
Fuses Usage
1 Window
2 Driver Power Seat
3 PEPS 2
4 PEPS 1
5 Engine Control Module
6 Heated Mirrors
7 Body Control Module 4
8 Rear Window Defogger
9 GBS
10 Body Control Module 2
11 Steering Wheel
12 Passenger Power Seat
13 Not Used
14 Outside Rearview Mirror
15 Body Control Module 1
16 Body Control Module 3
17 Sensing Diagnostic Module/Automatic Occupant Sensing
18 Logistics 2
19 Body Control Module 8
20 Integrated Chassis Control Module
21 Amplifier
22 Rear Accessory Power Outlet
23 Rear Closure
24 Memory Seat Module/Convertible Top
25 Theft-Deterrent PSM
26 Pressure Vent (Coupe Only)
27 OnStar (If Equipped)
28 Not Used
29 Not Used
30 Fuel Pump Power Module
31 Not Used
32 Battery Regulated Voltage Control
33 Not Used
34 Convertible Top Solenoid
35 Not Used
36 Passenger Window Switch
37 Front Accessory Power Outlet
38 Not Used
39 Spare
40 Spare
41 Spare
42 Spare
43 Spare
44 Spare



Relays Usage
R1 Logistics 2
R2 Rear Window Defogger
R3 Not Used
R4 Front Accessory Power Outlet
R5 Theft (Door Lock Security)
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
