Chevrolet Chevette (1979 – 1981) – fuse box diagram

Year of production: 1979, 1980, 1981

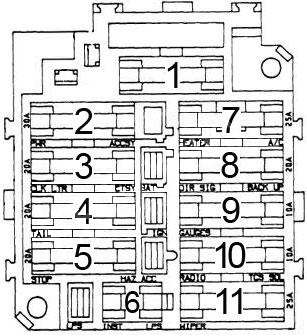

Fuse box diagram

Chevrolet Chevette (1979 - 1981) - fuse box diagram
Chevrolet Chevette (1979 – 1981) – fuse box diagram
Fuse [A] Protected Component
1 25 Choke heater
2 10 Electronic Control Module
3 20 Clock, cigar lighter, key warning buzzer, dome and glove box lights, courtesy, reading, lugagge and engine compartment lights
4 20 Tail light, parking light, side marker light, licenses light, underhood light
5 20 Stop and hazard lights
6 4 Instrument panel, radio, heater and windshield wiper switch lights
7 25 Heater and air conditioning
8 20 Turn signal and back-up lights
9 10 Gauges, warning indicators, headlight and seat belt warning buzzers, cruise control
10 10 Radio, idle stop solenoid and pulse wipers
11 25 Windshield wiper and washer
Circuit Breaker:
  • Headlights — Circuit breaker is integral with headlight switch to protect headlight circuit.
  • Windshield Wiper — Circuit breaker integral with windshield wiper switch to protect wiper circuit.
  • Power Seats, Power Windows & Power Door Locks — Circuit breaker is located on fuse panel to protect power accessories.
  • Rear Window Defogger – Circuit breaker is located on left side fender inner skirt.
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
