Chevrolet Cavalier (1995 – 2005) – fuse box diagram
Year of production: 195, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

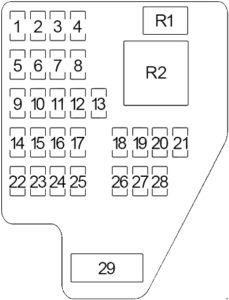

Passenger Compartment Fuse Box (’00-’05)
Chevrolet Cavalier – fuse box diagram – passenger compartment
| No. |
A |
Circuit Protected |
| 1 |
20 |
Ignition Module |
| 2 |
20 |
’02-’05: Accessory Power Outlet |
| 3 |
15 |
Right Headlamp |
| 4 |
15 |
Horn |
| 5 |
10 |
Powertrain Control Module (PCM) |
| 6 |
10 |
Anti-lock Brake Solenoids |
| 7 |
10 |
Radio, Interior Lamps, OnStar |
| 8 |
10 |
Daytime Running Lamps: Fog Lamps |
| 9 |
10 |
Body Control Module, Instrument Panel Cluster |
| 10 |
10 |
Cruise Control |
| 11 |
15 |
Left Headlamp |
| 12 |
20 |
Cigarette Lighter, Interior Lamps, Exterior Lamps |
| 13 |
20 |
Stop Lamps, Hazard Lamps, Anti-lock Brakes, Cruise Control |
| 14 |
10 |
Brake Transaxle Shift Interlock (BTSI), Cruise Control, HVAC Compressor Control, Multi-Port Injection |
| 15 |
15 |
Air Bag |
| 16 |
10 |
Power Mirror, Data Link Connector |
| 17 |
20 |
Park Lamps, Side Marker Lamps, Instrument Panel Lamps |
| 18 |
15 |
Power Door Locks, Convertible Top |
| 19 |
10 |
Anti-lock Brake, Coolant Fan, HVAC: Compressor Control |
| 20 |
10 |
Body Control Module |
| 21 |
10 |
Cavalier: Amplifier |
| 20 |
Sunfire: Amplifier |
| 22 |
10 |
Backup Lamps, Turn Signal Lamps |
| 23 |
15 |
Fuel Pump, Fuel Injectors |
| 24 |
15 |
’01-’05: Remote Keyless Entry System |
| 10 |
’00: Remote Keyless Entry System |
| 25 |
10 |
Instrument Panel Cluster, Electronic Brake Control Module |
| 26 |
30 |
Rear Window Defogger |
| 27 |
10 |
O2 Sensor Heater |
| 28 |
25 |
Wiper/Washer |
| Relay |
| 29 |
25 |
Power Windows, Power Sunroof |
| 30 |
Convertible: Power Windows, Convertible Top |
| Relay |
| R1 |
’05: Headlamps |
| R2 |
Daytime Running Lamps |

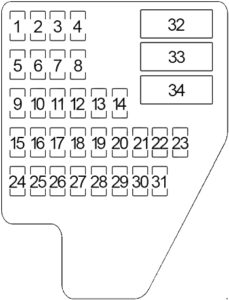

Passenger Compartment Fuse Box (’95-’99)
Chevrolet Cavalier – fuse box diagram – passenger compartment
| No. |
A |
Protected Component |
| 1 |
20 |
Engine Ignition, Multiport Fuel Injection |
| 2 |
– |
– |
| 3 |
10 |
Headlamp |
| 15 |
Right Headlamp |
| 4 |
– |
– |
| 5 |
10 |
Powertrain Control Module (PCM) |
| 6 |
– |
– |
| 7 |
10 |
Alarm Module, Warning Chimes, Illuminated Entry, Trunk Lamp, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Radio Power Mirrors |
| 8 |
10 |
Daytime Running Lights, Fog Lamps |
| 9 |
10 |
Alarm Module, Warning Chimes, Illuminated Entry |
| 10 |
10 |
Cruise Control |
| 11 |
20 |
Headlights (Flash to Pass) |
| 15 |
Left Headlamp |
| 12 |
15 |
Cigarette Lighter, Horn, Diagnostic Connector, Asynchronous Receiver/Transmitter (UART) Link |
| 13 |
10 |
Instrument Panel Lamps |
| 14 |
20 |
Stop Lamps, Hazard Lamps, ABS, Cruise Control, Exterior Lights |
| 15 |
10 |
Automatic Transaxle, Brake Transaxle Shift Interlock (BTSI), Cruise Control, HVAC: Compressor Control, EGR (2.2L), Canister Purge Valve, A/C High Pressure Switch (2.3L) |
| 16 |
15 |
Air Bag-DERM (Diagnostic Energy Reserve Module) Power |
| 17 |
– |
– |
| 18 |
20 |
Park Lamps, Side Marker Lamps, Instrument Panel Lamps |
| 19 |
– |
– |
| 20 |
20 |
Power Door Locks, Convertible Top |
| 21 |
10 |
Heater-A/C Control, Crankcase Vent Heater (2.3L), Rear Window Defogger, Antilock Brake System, Engine Cooling Fan (2.2L) |
| 22 |
10 |
Radio/Audio Systems |
| 23 |
– |
– |
| 24 |
20 |
Turn Signals, Back-Up Lights |
| 25 |
20 |
Fuel Pump, Fuel Injectors |
| 26 |
10 |
Air Bag-DERM (Diagnostic Energy Reserve Module) Crank Signal |
| 27 |
10 |
Instrument Panel, Antilock Brake Control Module |
| 28 |
10 |
Instrument Panel, Powertrain Control Module (PCM), Asynchronous Receiver/Transmitter (UART) Link |
| 29 |
30 |
Rear Window Defogger |
| 30 |
10 |
Rear Oxygen Sensor Heater (2.3L Cal. Auto) |
| 31 |
25 |
Wiper/Washer |
| Relay |
| 32 |
20 |
Headlight, Daytime Running Lights |
| 33 |
– |
– |
| 33 |
25 |
Power Windows, Sunroof |
| 30 |
Convertible: Power Windows, Convertible Top |

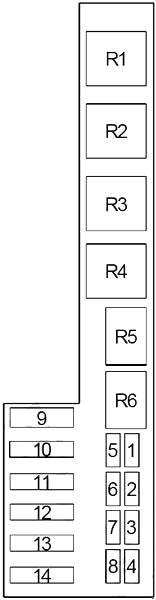

Engine Compartment Fuse Box
Chevrolet Cavalier – fuse box diagram – engine compartment
| No. |
A |
Protected Component |
| 1 |
10 |
’95-’99: Starter and Charging System: Generator Voltage Sense |
| 2 |
10 |
HVAC Compressor Control |
| 3 |
10 |
PCM, Multiport Fuel Injection |
| 4 |
30 |
HVAC Blower Control, HVAC Compressor Control |
| 5 |
15 |
’95-’99: ABS |
| 6 |
10 |
’02-’05: Starter Relay Control |
| 7 |
– |
– |
| 8 |
10 |
’95-’96: Tach |
| 9 |
50 |
’00-’05: Blower Relay Control, Multiport Fuel Injection |
| 10 |
30 |
Cooling Fan |
| 11 |
50 |
’00-’05: ABS, Power Distribution |
| 40 |
’95-’99: ABS |
| 12 |
40 |
Power Distribution (Lighting) |
| 13 |
40 |
Power Distribution (Power ACC/Stop Lamp) |
| 14 |
50 |
Power Distribution, Starter, Ignition, Charging System |
| Relay |
| R1 |
Blower Motor |
| R2 |
’95-’99: ABS and Electronic Variable Orifice Steering |
| R3 |
Cooling Fan |
| R4 |
’02-’05: Starter |
| R5 |
Fuel Pump |
| R6 |
Air Conditioner |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
