Chevrolet Caprice (1994 – 1996) – fuse box diagram

Chevrolet Caprice (1994 – 1996) – fuse box diagram

Year of production: 1994, 1995, 1996

Passenger Compartment Fuse Box

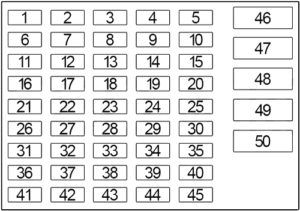

Chevrolet Caprice - fuse box diagram - passenger compartment
Chevrolet Caprice – fuse box diagram – passenger compartment
No. A Circuit Protected
1  –
2  –
3  –
4  –
5  –
6 15 ’94: Turn Signal Lamp Flasher, Park Neutral Position Switch
7 10 ’94: Anti-Lock Brake (ABS) Control Module
10 ’95 (Police): HUD Projector, Night Vision Control Unit, Auxiliary Display
8 15 Tailgate Switch Module
9 10 ’94: Radio
15 ’95: Radio
10 25 Windshield Wiper Motor Module
11 10 Rear Defog Relay, Air Bag, I/P Cluster, Headlamp Switch
12 10 ’94 (Wagon): Auto Level Control
15 ’95: Turn Signals, Back-up Lamp, PRNDL Position Sensor
13 10 Automatic Inside Rearview Mirror, Chime Module, TCC Cruise Brake Switch, Twilight Sentinel, Daytime Running Lights Canada), Keyless Entry System
14 10 Pass-Key II
15 15 Air Bag
16 10 Cruise Control
17 20 Heater & A/C Control
18 10 ’95: Seat Heater, Power Steering Control Module
19  –
20 10 Instrument Cluster, Daytime Running Lights (Canada)
21 15 ’95 (Police): RH Spot Lamp
22 15 ’95 (Police): LH Spot Lamp
23  –
24 10 Air Bag, Theft Deterrent Relay
25  –
26 20 ’94: Power Antenna
10 ’95 (Police): Night Vision Roof Unit
27 10 ’94: Heat Sensor, Trunk Lamp
10 ’95: Automatic Level Control, Trunk Lamp
28 20 Cigarette Lighter
29 20 Keyless Entry System, Trunk Release, Rear Glass Release Liftgate Wiper Latch Switch (Wagon)
30 15 Radio
31 20 Headlamp Switch, Twilight Sentinel, Daytime Running Lights (Canada)
32 25 Horn
33 10 Chime Module, Heater and A/C, Glove Box Light, Instrument Cluster
34 10 Pass-Key II
35 15 Dome Lamp, Front Reading Lights, Rear Reading Lights, Automatic Inside Rearview Mirror, Illuminated Visor Vanity Mirror, Power Door Locks, Front Door Courtesy Lights, Rear Door Courtesy Lights, Power Mirror Sw. Instrument Panel Courtesy Lights
36 15 Wagon: Rear Wiper
37 20 Hazard Warning Flasher, Stop Lights
38 30 ’95: Blower Motor Control
39 20 ’95: Power Door Lock Relay
40 20 ’95: Heated Seats
41 10 Cornering Lamps, Side Marker Lamp, Turn-Park Lamp
42 10 Instrument Cluster, Radio, Brightness Control, Headlamp and Instrument Panel Lamp Dimmer Switch, Panel Lamps Dimming Module
43 10 License Lights, Taillights, Tail/Stop/Turn Lights, Markerlamps
44 10 Heater Power Mirrors
45 10 ’95 (Police): HUD Projector
Circuit Breaker
46 20 ’95: Power Seat Recline, Lumbar Support, Power Antenna Relay
47 30 Power Window, Power Window Lockout Switch
48 30 ’94: Door Locks, Power Seat Switch, Passenger Seat Lumbar Controls
25 ’95: Door Locks, Power Seat Switch
49 30 Rear Window Defogger
50  –

Engine Compartment Fuse Box

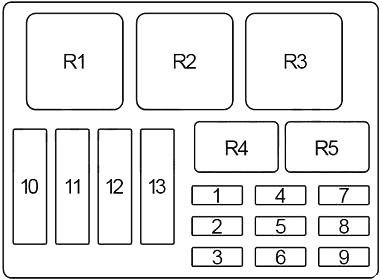

Chevrolet Caprice - fuse box diagram - engine compartment
Chevrolet Caprice – fuse box diagram – engine compartment
No. A Protected Component
1 10 Fuel Injector (2, 3, 5, 8)
2 10 Fuel Injector (1, 4, 6, 7)
3 20 ’94: Primary Air Pump Relay, Underhood Lamp
25 ’95: Primary Air Pump Relay, Underhood Lamp
4 10 ’94: Secondary Engine Coolant Fan, Generator
15 ’95: Automatic Transmission, Mass Air Flow Sensor (MAF), Secondary Air Pump Relay, EGR Control Valve Relay, Evaporative Emission Canister Purge Valve Solenoid, LH Heated Oxygen Sensor, RH Heated Oxygen Sensor
5 10 Control Module (PCM), Ignition Coil Electronic Brake Control Module
6 15 Fuel Pump Relay, Fuel Pump and Engine Oil Pressure Switch Powertrain Control Module (PCM)
7 10 Primary Engine Coolant Fan, A/C Compressor Relay
8 10 Automatic Transmission, Mass Air Flow Sensor (MAF), Secondary Air Pump Relay, EGR Control Valve Relay, Evaporative Emission Canister Purge Valve Solenoid, LH Heated Oxygen Sensor, RH Heated Oxygen Sensor
9 25 Automatic Level Control Air Compressor (ALC)
10 40 Secondary Engine Coolant Fan
11 40 Primary Engine Coolant Fan
12 60 Fuse Block
13 60 Main
80 Main
Relay
R1 Coolant Fan
R2 Coolant Fan
R3 Air Pump
R4 A/C Compressor
R5 Fuel Pump
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
