Chevrolet Camaro (2010) – fuse box diagram

Year of production: 2010

Engine Compartment Fuse Block

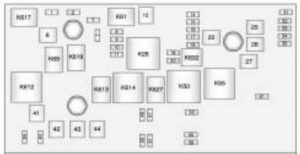

Chevrolet Camaro - wiring diagram - fuse box -  engine compartment
Chevrolet Camaro – wiring diagram – fuse box – engine compartment
J-Case Fuses Usage
6 Wiper
12 Starter
22 Brake Vacuum Pump
25 Power Windows Rear
26 Power Windows Front
27 Rear Defog
41 Cooling Fan High
42 Front Heater, Ventilation and Air Conditioning
43 Antilock Brake System Pump
44 Cooling Fan Low
Mini Fuses Usage
1 Air Conditioning Compressor Clutch
2 Transmission Control Module
5 Engine Control Module Main
7 Pre-Catalytic Converter Oxygen Sensor
8 Post-Catalytic Converter Oxygen Sensor
9 Fuel Injectors – Even
10 Fuel Injectors – Odd
11 Cooling Fan Relay
14 Manifold Air Flow/Chassis Control
15 Ignition
16 Run/Crank IP
17 Sensing Diagnostic Module/Ignition
18 Run/Crank Body
19 Transmission Control Module/Ignition
20 Engine Control Module/Ignition
31 Outside Rear View Mirror
32 Canister Vent Solenoid
33 Body Control Module #6
34 Sunroof
35 Front Heated Seats
38 Washer Pump Front
40 Antilock Brake System Valves
46 HID Headlamp – Left Front
47 HID Headlamp – Right Front
50 Fog Lamps
51 Horn
52 Spare
55 High Beam Headlamp – Right Front
56 High Beam Headlamp – Left Front
Mini Relays Usage
K26 Powertrain
K50 Run / Crank
K55 Rear Defog
K612 Cooling Fan High
K614 Cooling Fan Control
Micro Relays Usage
K61 Starter
K69 Wiper Control
K613 Cooling Fan Low
K617 Air Conditioning Compressor Clutch
K619 Wiper Speed
K627 High Intensity Discharge Headlamps
K632 Brake Vacuum Pump



Instrument Panel Fuse Block

The instrument panel fuse block is located on the end of the instrument panel, on the driver side of the vehicle.

Chevrolet Camaro - wiring diagram - fuse box -  instrument panel
Chevrolet Camaro – wiring diagram – fuse box –
instrument panel
Fuses Usage
F1 Discrete Logic Ignition Switch
F2 Diagnostic Link Connector
F3 Airbag
F4 Cluster
F5 Heating Ventilation Air Conditioning Controller
F6 Body Control Module
F7 Battery
F8 Spare
F9 Spare
F10 Spare
F11 Spare
F12 Spare
F13 Display
F14 OnStar® Universal Hands Free Phone
F15 Body Control Module 3
F16 Body Control Module 4
F17 Power Outlet 1
F18 Power Outlet 2
F19 Steering Wheel Controls Backlight
F20 Spare
F21 Spare
F22 Spare
F23 Trunk
F24 Automatic Occupant Sensing
F25 Body Control Module 1
F27 Body Control Module 8
F28 Spare
F29 Body Control Module 5
F30 Body Control Module 7
Circuit Breaker Usage
CB7 Passenger Seat
CB26 Driver Seat



Relays Usage
K10 Retained Accessory Power
K605
K609 Trunk



Rear Compartment Fuse Block

The rear compartment fuse block is located on the right side of the trunk behind a cover.

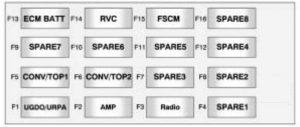

Chevrolet Camaro - wiring diagram - fuse box - rear compartment
Chevrolet Camaro – wiring diagram – fuse box – rear compartment
Fuses Usage
F1 Universal Garage Door Opener/Ultrasonic Reverse Parking Aid
F2 Amplifier
F3 Radio
F4 Spare
F5 Convertible Top 1
F6 Convertible Top 2
F7 Spare
F8 Spare
F9 Spare
F10 Spare
F11 Spare
F12 Spare
F13 Engine Control Module/Battery
F14 Regulated Voltage Control
F15 Fuel System Control Module
F16 Spare

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
