Cadillac SRX (2012 – 2016) – fuse box diagram

Cadillac SRX (2012 – 2016) – fuse box diagram

Year of production: 2012, 2013, 2014, 2015, 2016

Engine Compartment Fuse Block

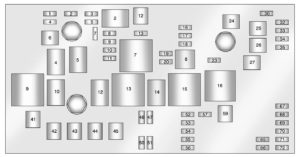

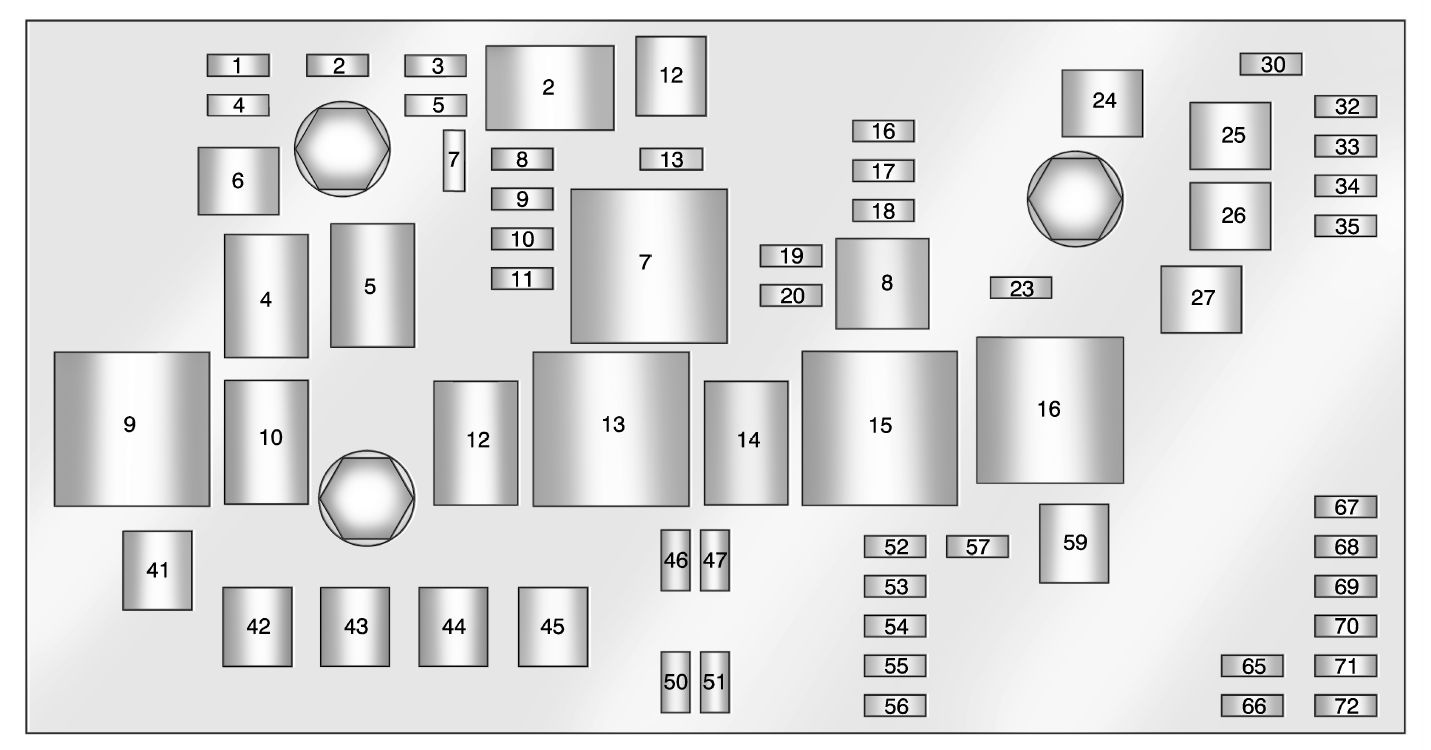

Cadillac SRX mk2 – fuse box – engine compartment
Cadillac SRX mk2 – fuse box – engine compartment

To remove the fuse block cover, press the clips on the cover and lift it straight up.

J-Case Fuses Usage
6 Wiper
12 Vacum Pump
24 Anitlock Brake System Pump
25 Rear Electrical Center 1
26 Rear Electrical Center 2
41 Cooling Fan 2
42 Starter
45 Cooling Fan 1



Mini Fuses Usage
1 Engine Control Module Battery
2 Transmission Control Module Battery
5 Engine Control Module Run Crank
7 Post–Catalytic Converter O2 Sensor
8 Pre–Catalytic Converter O2 Sensor
9 Engine Control Module Powertrain
10 Fuel Injectors–Even
11 Fuel Injectors–Odd
13 Washer
16 Instrument Panel Cluster/Malfunction Indicator Lamp/Ignition
17 Air Quality Sensor
18 Headlamp Washer
19 Transmission Control Module Run Crank
20 Rear Electrical Center Run Crank
30 Switch Back Light
32 Battery Sense (Regulated Voltage Control)
33 Adaptive Forward Lighting / Adaptive Headlamp Leveling Module
34 Body Control Module 7
35 Electronic Brake Control Module
46 Low Beam Headlamp‐Right
47 Low Beam Headlamp‐Left
50 Front Fog Lamps
51 Horn
52 Fuel System Control Module
53 Headlamp Level
54 Sensing Diagnostic Module Ignition
55 High Beam Headlamp–Right
56 High Beam Headlamp–Left
57 Ignition Steering Column Lock
65 Trailer Right Stop Lamp
66 Trailer Left Stop Lamp
67 Spare
68 Spare
69 Spare
70 Spare
71 Spare
72 Spare



Mini Relays Usage
7 Powertrain
9 Cooling Fan 2
13 Cooling Fan 1
15 Run/Crank



Micro Relays Usage
2 Vacuum Pump
4 Wiper Control
5 Wiper Speed
10 Starter
12 Cool Fan 3
14 Low Beam/HID



U Micro Relaya Usage
3 Air Conditioning Compressor Clutch
8 Headlamp Washer

Instrument Panel Fuse Block

The instrument panel fuse block is located in the center console between the driver and passenger seats.

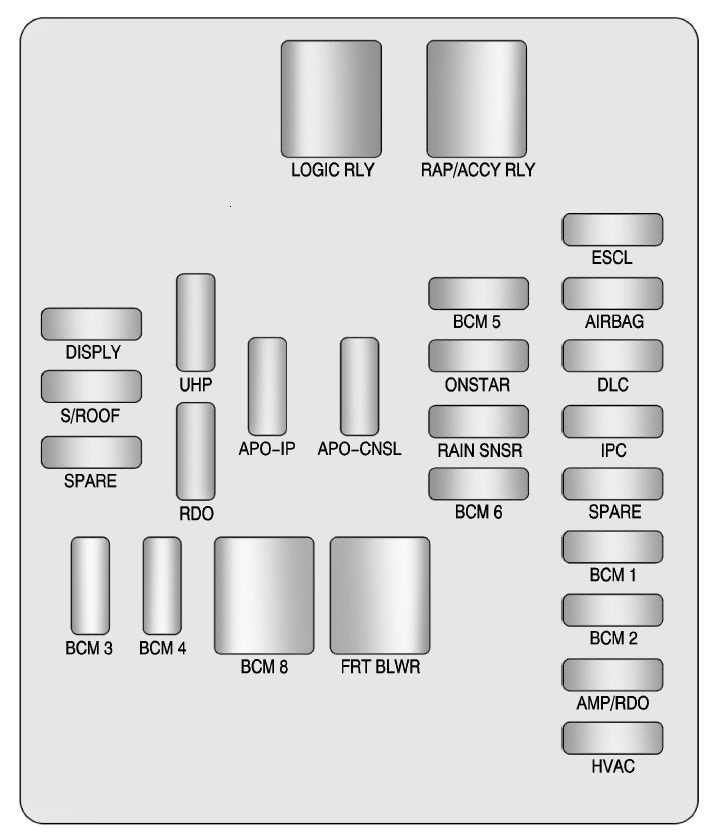

Cadillac SRX mk2 – fuse box – instrument panel
Cadillac SRX mk2 – fuse box – instrument panel

To access the fuses, open the fuse panel door from the passenger side by pulling it out.

Mini Fuses Usage
DISPLY Display
S/ROOF Sun Roof
RVC MIRR Rear Vision Camera Mirror
UHP Universal Handsfree Phone
RDO Radio
APO ‐ IP Auxiliary Power Outlet ‐ Instrument Panel
APO ‐ CNSL Auxiliary Power Outlet ‐ Floor Console
BCM 3 Body Control Module 3
BCM 4 Body Control Module 4
BCM 5 Body Control Module 5
ONSTAR OnStar® System (If Equipped)
RAIN SNSR Rain Sensor
BCM 6 Body Control Module 6
ESCL Electronic Steering Column Lock
AIRBAG Sensing and Diagnostic Module
DLC Data Link Connection
IPC Instrument Panel Cluster
SPARE Not Used
BCM 1 Body Control Module 1
BCM 2 Body Control Module 2
AMP/RDO Amplifier/Radio
HVAC Heating Ventilation & Air Conditioning



J Case Usage
BCM 8 Body Control Module 8
FRT BLWR Front Blower





Relays Usage
LOGIC RLY Logistics Relay
RAP/ACCY RLY Retained Accessory Power/Accessory Relay

Rear Compartment Fuse Block

The rear compartment fuse block is located in the cargo area, on the driver side of the vehicle behind the lower trim panel.

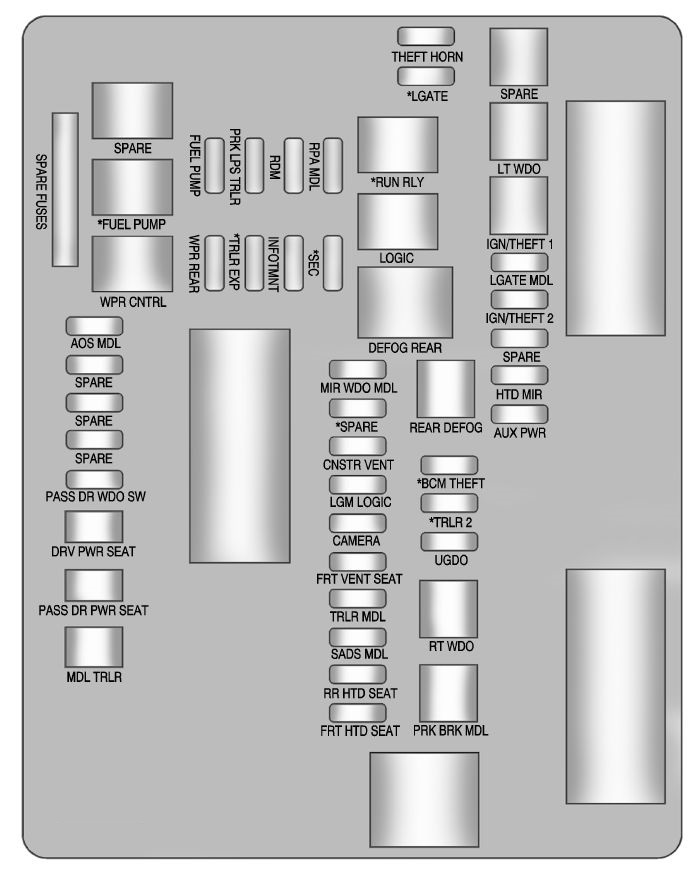

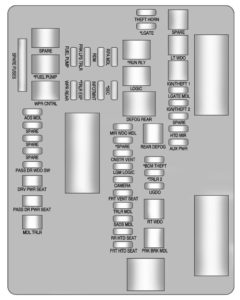

Cadillac SRX mk2 – fuse box – rear compartment
Cadillac SRX mk2 – fuse box – rear compartment

To open, turn the latch with a flat bladed tool and pull the trim panel from the edges to fold it down.

Fuses Usage
SPARE FUSES Spare Fuses
AOS MDL Automatic Occupant Sensing Module
SPARE Not Used
SPARE Not Used
SPARE Not Used
PASS DR WDO SW Passenger Door Window Switch
DRV PWR SEAT Driver Power Seat
PASS DR PWR SEAT Passenge/Driver Power Seats
MDL TRLR Trailer Module
RPA MDL Rear Parking Assist Module
RDM Rear Drive Module
PRK LPS TRLR Trailer Park Lamps
FUEL PUMP Fuel Pump
* SEC Security
INFOTMNT Infotainment
* TRLR EXP Trailer Export
WPR REAR Rear Wiper
MIR WDO MDL Mirror Window Module
VICS Vehicle Information Communications System (Export)
CNSTR VENT Canister Vent
LGM LOGIC Lift Gate Module Logic
CAMERA Rear Vision Camera
FRT VENT SEAT Front Ventilated Seats
TRLR MDL Trailer Module
SADS MDL Semi Active Damping System Module
RR HTD SEAT Rear Heated Seats
FRT HTD SEAT Front Heated Seats
THEFT
HORN
Theft Horn
* LGATE Liftgate
SHUNT Shunt
REAR DEFOG Rear Defog
* BCM THEFT Body Control Module Theft
* TRLR 2 Trailer 2
UGDO Universal Garage Door Opener
RT WDO Right Window
PRK BRK MDL Park Brake Module
SPARE Not Used
LT WDO Left Window
IGN/THEFT 1 Ignition/Theft 1
LGATE MDL Liftgate Module
IGN/THEFT 2 Ignition/Theft 2
SPARE Not Used
HTD MIR Heated Mirror
AUX PWR Auxiliary Power Outlet



Relays Usage
SPARE Not Used
* FUEL PUMP Fuel Pump
WPR CONTRL Wiper Control
* RUN RLY Run Relay
LOGIC Logistic Relay
DEFOG REAR Rear Window Defogger

*‐Denotes up‐level content.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
