Cadillac SRX (2007) – fuse box diagram

Cadillac SRX (2007) – fuse box diagram

Year of production: 2007

Underhood Fuse Block

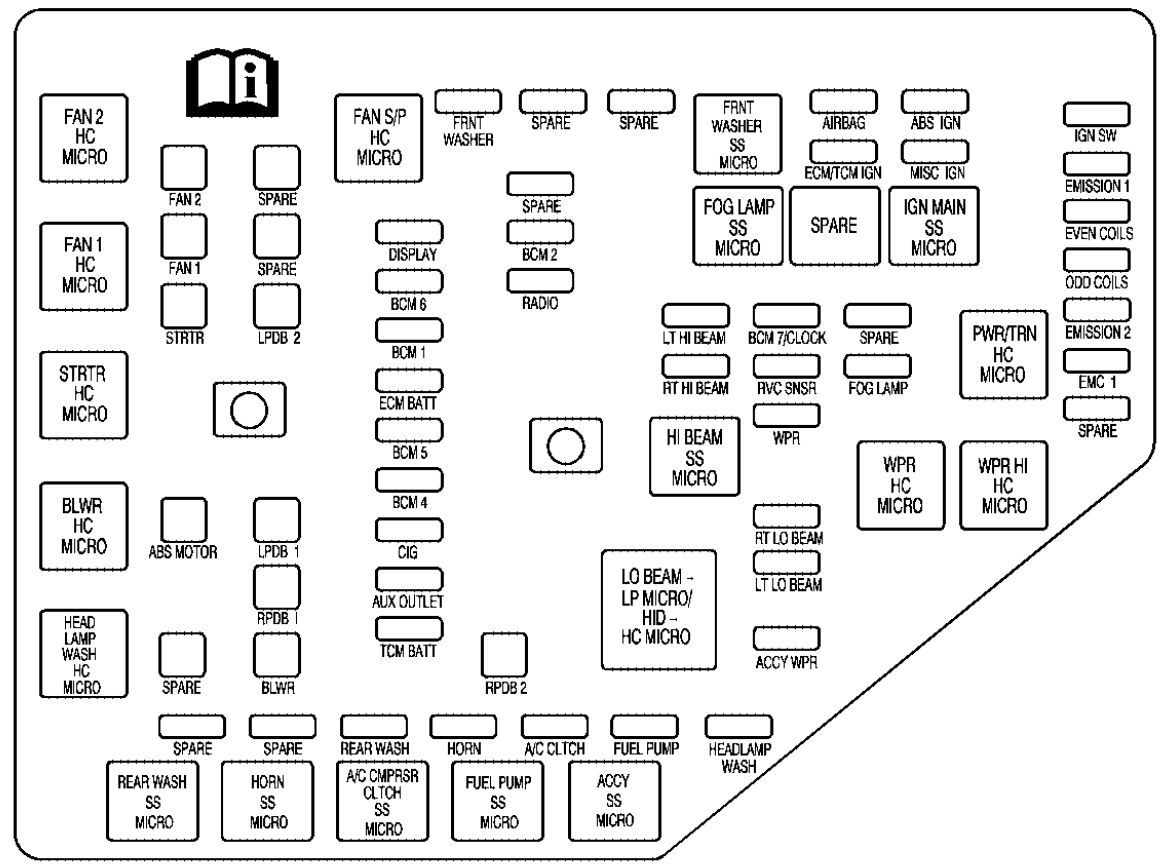

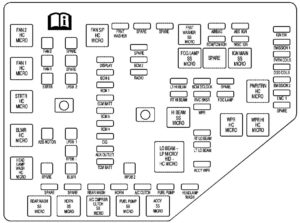

Cadillac SRX mk1 – fuse box – engine compartment
Cadillac SRX mk1 – fuse box – engine compartment

The underhood fuse block is located in the engine compartment on the passenger’s side of the vehicle.

Relays Usage
FAN 2 HC MICRO Right Side Engine Cooling Fan Motors
FAN S/P HC MICRO Series/Parallel Engine Cooling Fan
FRNT WASHER SS MICRO Left Side Engine Cooling Fan Motors
FOG LAMP SS MICRO Front Fog Lamps
SPARE Spare
IGN MAIN SS MICRO Ignition Switch (ON)
STRTR HC MICRO Starter Solenoid
PWR/TRN HC MICRO Powertrain/Engine Control Module
HI BEAM SS MICRO High-Beam Headlamps
BLWR HC MICRO High-Beam Headlamps
BLWR HC MICRO Front Blower Motor Assembly
WPR HC MICRO Windshield Wiper System – On/Off
WPR HI HC MICRO Windshield Wiper System – Low/High
HEAD LAMP WASH HC MICRO Headlamp Washer Pump (Option)
LO BEAM-LP MICRO/HID-HC MICRO Low-Beam Headlamps
REAR WASH SS MICRO Rear Washer Pump
HORN SS MICRO Horn
A/C CMPRSR CLTCH SS MICRO Air Conditioning Compressor Clutch
FUEL PUMP SS MICRO Fuel Pump
ACCY SS MICRO Accessory Power (Rear Wipers, Inside Rearview Mirror)



J Case Fuses Usage
FAN 2 Right Cooling Fan Motor
SPARE Spare
FAN 1 Left Cooling Fan Motor
SPARE Spare
STRTR Starter Solenoid
LPDB 2 LRPDB (Left Side Rear Power Distribution Box)
ABS MOTOR Anti-lock Brake System Module
LPDB 1 LRPDB (Left Side Rear Power Distribution Box)
RPDB 1 RRPDB (Right Side Rear Power Distribution Box)
SPARE Spare
BLWR Front Blower Motor Assembly
RPDB 2 RRPDB (Right Side Rear Power Distribution Box)





Mini Fuses Usage
FRNT WASHER Front Washer Pump
SPARE Spare
SPARE Spare
AIRBAG Sensing Diagnostic Module (SDM), Occupant Sensor Display, Instrument Cluster
ABS IGN Anti-lock Braking System Ignition, Variable Effort Steering
IGN SW Ignition Switch, Immobilizer Module
ECM/TCM IGN Engine Control Module/Transmission Control Module Ignition Power
MISC IGN Air Quality Sensor
EMISSION 1 Pre 02 Sensors, Cam Phasor (V6), Canister Purge (V6), Intake Manifold Tuning Valve (V6)
SPARE Spare
DISPLAY Instrument Panel Cluster, Climate Control Module, Front Blower Relay, Diagnostic Link Connector
BCM 2 LED Instrument Panel Dimming, Overhead Lamps, Vanity Lamps
EVEN COILS Even Ignition Coils, Even Fuel Injectors
BCM 6 Right Side Rear Stoplamp, Turn Lamps, Key Capture Solenoid
RADIO Radio
ODD COILS Odd Ignition Coils, Odd Fuel Injectors
BCM 1 Body Control Module (BCM) Power
LT HI BEAM Left Side High-Beam Headlamp
BCM 7/CLOCK Switch Dimming, Analog Clock
SPARE Spare
EMISSION 2 Cooling Fan Relays, Air Conditioning Clutch Relay, Post O2 Sensors, Mass Airflow Sensor, Canister Purge (V8)
ECM BATT Engine Control Module (ECM)
RT HI BEAM Right Side High-Beam Headlamp
RVC SNSR Battery Regulated Voltage Control Sense
FOG LAMP Front Fog Lamps
ECM 1 Engine Control Module (ECM)
BCM 5 Left Side Front Turn Lamps, Rear Stoplamps, Turn Lamps
WPR Windshield Wiper Motor
SPARE Spare
BCM 4 Center High-Mounted Stoplamp (CHMSL), Back-up Lamps
CIG Instrument Panel Accessory Power Outlet (Cigarette Lighter)
RT LO BEAM Right Side Low-Beam Headlamp
AUX OUTLET Center Console Accessory Power Outlet
LT LO BEAM Left Side Low-Beam Headlamp
TCM BATT Transmission Control Module (TCM)
ACCY WPR Rear Wiper Motor & Switch, Inside Rearview Mirror
SPARE Spare
SPARE Spare
REAR WASH Rear Washer Pump
HORN Horn Assembly
A/C CLTCH Air Conditioning Compressor Clutch
FUEL PUMP Fuel Pump





Circuit Breakers Usage
HEADLAMP WASH Headlamp Washer Motor (Optional)

Rear Underseat Fuse Block (Left Side)

The driver’s side rear fuse block is located under the rear seat on the driver’s side of the vehicle. The carpet must be lifted up to access the rear fuse block.

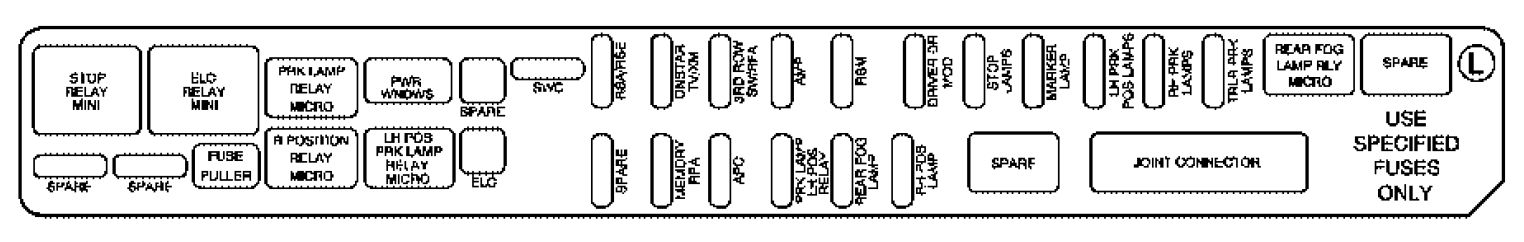

Cadillac SRX mk1 – fuse box rear compartment (left side)
Cadillac SRX mk1 – fuse box rear compartment (left side)

To access the fuse block, push in the two tabs located at each end of the fuse block cover. Then lift the cover off.

Relays Usage
STOP RELAY MINI Not Used
ELC RELAY MINI Electronic Level Control (ELC) Compressor Motor
PRK LAMP RELAY MICRO License Lamps
REAR FOG LAMP RLY MICRO Not Used
SPARE Spare
R POSITION RELAY MICRO Not Used
LH POS PRK LAMP RELAY MICRO Front & Rear Park Lamps
SPARE Not Used



Mini Fuses Usage
SWC Steering Wheel Controls
RSA/RSE Rear Seat Entertainment, Rear Seat Audio
ONSTAR TV/XM OnStar® Module, XM Radio
3RD ROW SW/RFA Flip Fold Seat Switches, Remote Keyless Entry System Module
AMP Audio Amplifier
RSM Rear Seat Module, Flip/Fold Motors
DRIVER DR MOD Driver Door Module (Locks, Outside Rearview Mirror, Window Switches)
STOP LAMPS Not Used
MARKER LAMP License Lamps
LH PRK POS LAMPS Left Side Taillamp, Left Side Front Park Lamps, Sidemarker Lamps
RH PRK LAMPS Right Side Taillamp, Right Side Front Park Lamps, Sidemarker Lamps
TRLR PRK LAMPS Trailer Park Lamps
SPARE Spare
SPARE Spare
SPARE Spare
MEMORY RPA Memory Seat Module, Ultrasonic Rear Parking Assist (URPA) Module
APO Rear Auxiliary Power Outlet
PRK LAMP LH POS Park Lamp Relay
REAR FOG LAMP Not Used
RH POS LAMP Right Side Taillamp



J Case Usage
SPARE Spare
ELC Electronic Level Control (ELC) Compressor



Circuit Breakers Usage
PWR WNDWS Power Window Motors

Misc. Usage
FUSE PULLER Fuse Puller
JOINT CONNECTOR Joint Connector

Rear Underseat Fuse Block (Right Side)

The passenger’s side rear fuse block is located under the rear seat on the passenger’s side of the vehicle. The carpet must be lifted up to access the rear fuse block.

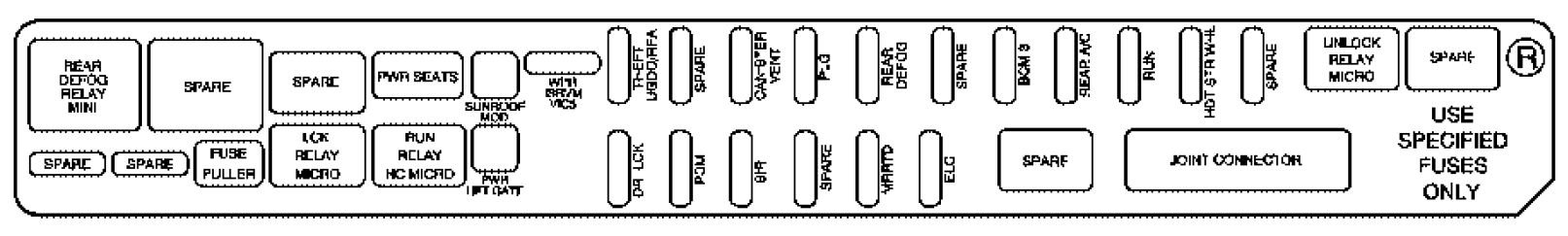

Cadillac SRX mk1 – fuse box – rear compartment (right side)
Cadillac SRX mk1 – fuse box – rear compartment (right side)

To access the fuse block, push in the two tabs located at each end of the fuse block cover. Then lift the cover off.

Relays Usage
REAR DEFOG RELAY MINI Rear Window Defogger
SPARE Spare
SPARE Spare
UNLOCK RELAY MICRO Rear Door Locks
SPARE Spare
LCK RELAY MICRO Rear Door Locks
RUN RELAY HC MICRO Rear Air Conditioning Blower Motor, Climate Control Ignition
SPARE Spare



Mini Fuses Usage
WPR ISRVM VICS Rear Wiper Switch, Inside Rearview Mirror
THEFT UGDO/RFA Garage Door Opener, Keyless Entry System
SPARE Spare
CANISTER VENT Canister Vent Solenoid
PLG Power Liftgate Module
REAR DEFOG Rear Window Defogger
SPARE Spare
BCM 3 Hush Panel Lamps, Overhead Courtesy Lamp Assembly, Right Side Front Turn Lamp
REAR A/C Rear Air Conditioning System
RUN Climate Control Module
HDT STR WHL Not Used
SPARE Spare
SPARE Spare
SPARE Spare
DR LCK Rear Door Locks
PDM Passenger Door Module (Locks, Outside Mirror, Window Switches)
SIR Sensing Diagnostic Module (SDM), Occupant Sensor, Roll-over Sensor
SPARE Spare
MRRTD Suspension Module
ELC Electronic Leveling Compressor (ELC) Exhaust Solenoid, ELC Relay



J Case Usage
SUNROOF MOD Power Sunroof Module
PWR LIFT GATE Power Liftgate Motors



Circuit Breakers Usage
PWR SEATS Power Seat Motors



Misc. Usage
SUNROOF MOD Power Sunroof Module
PWR LIFT GATE Power Liftgate Motors



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
