Year of production: 1996

Engine compartment fuse block

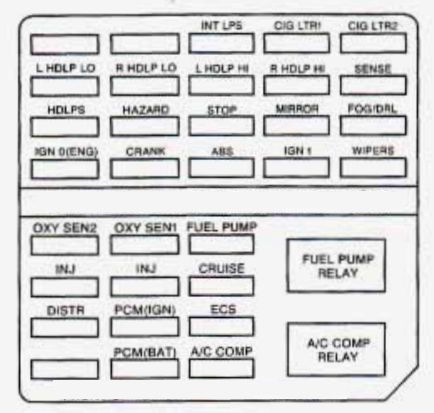

Cadillac Seville – fuse box diagram – engine compartment
Cadillac Seville – fuse box diagram – engine compartment
Fuse name Usage
INT LPS Trunk Lamp, Courtesy Lamps, Front Vanity Lamps, Glove Box Lamp, Garage Door Opener, Courtesy Lamp Relay
CIG LTR 1 Front Cigarette Lighter (Full Console Only), Rear Lighte
CIG LTR 2 Right and Left Rear Cigarette Lighte
L HDLP LO Left Low-Beam Weadlamp
R HDLP LO Right Low-Beam Headlamp, Light Emitting Diode (LED) on Headlamp Switch
L HDLP HI Left High-Beam Headlamp
R HDLP HI Right High-Beam Headlamp
SENSE Heated Windshield Control (Optional)
HDLPS Headlamp Switch and Relay, High/Low Beam Control Relay, Right and Left Low Beam (I-Beam), Right and Left High Beam
HAZARD Electronic Flasher Module, Turnmazard Module, Right and Left Turn Lamps, Back-up Lamps, Right and Left Front Turn Lamps, Right and
Left Repeater Lamps (Export)
STOP Stoplamp Switch, Centered High-Mounted Stoplamp (CHMSL), Turn Hazard Switch, ABS Controller, Stepper Motor Cruise Control, Right and Left Rear Stoplamps
MIRROR Inadvertent Power Relay, Outside Rearview Mirror, Data Line Connector (DLC), Flash-to-Pass Module
FOG/DRL Daytime Running Lamp (DRL) Relay (Domestic Only), Fog Lamp Relay (Optional), Headlamp Switch, Right and Left Front Fog Lamps (Optional)
IGN 0 (ENG)* Powertrain Control Module (PCM)
CRANK Sensing and Diagnostic Module (SDM)
ABS Anti-Lock Brake System/Anti-Slip Regulation-5 (ABS/ASR-5) Controller
IGN 1 Rear Ignition-1 Relay, Front Fog Lamp Relay, Rear Lamp Relay (Export), Controlled Power Back-up Relay, DRL Relay (Domestic Only)
WIPERS Accessory Accessory Relay, Wiper Switch, Cluster, Wiper Motor, Wiper Pump
OXY SEN2* 02 Sensor Rear, Catalytic Converter (CAT) Rear O2 Sensor
OXY SEN1 * 02 Sensor Front, CAT Front 02 Sensor
FUEL PUMP” Engine Oil Pressure Indicator, PCM, Fuel Pump Relax Fuel Pump
INJ* Injectors 2, 3, 5, 8
INJ* Injectors 1, 4, 6, 7
CRUISE Stepper Motor Cruise Control, Park Neutral Position Switch, Back-up Lamps, Electrochromatic Mirror, Brake Transaxle Shift Interlock (BTSI)
DISTR* Electronic Ignition Contro
PCM (IGN)* Powertrain Control Module (PCM)
ECS* Transaxle Shift Solenoids, Mass Airflow, Low Refrigerant Cutoff Switch, Canister Purge, PCM, Linear Exhaust Gas Recirculation (EGR),
Power Steering Press Switch, Front Ignition- 1 Relay
A/C COMP AC Compressor Relay, Cooling Fan Relays 1,2,3, Compressor
* Do not alter OBD II related fuses or circuit breakers

MaxiFuse/Relay Center

The MaxiFuses and relays are located next to the engine compartment fuse block on the driver’s side of the engine.

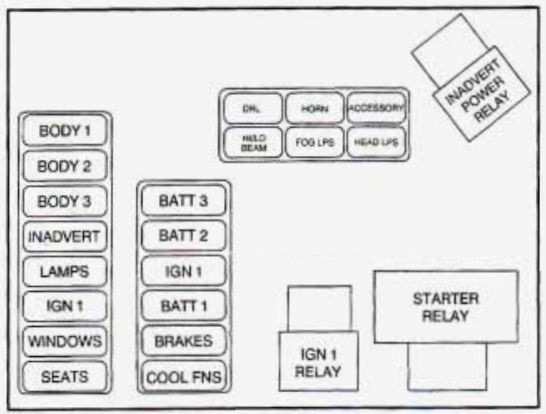

Cadillac Seville – fuse box diagram – maxi fuse relay center
Cadillac Seville – fuse box diagram – maxi fuse relay center
Fuse Usage
BODY 1 Real Time Dampening (RTD) Fuse, Convenience Fuse, BATT Fuse, Headlamp Wash Fuse (Export), Antenna Fuse, Park Lamp Relay, Right and Left Park Fuse
BODY 2 Defog Relay, Pull-Down Fuse, Right and Left Heated Seat Fuse, Electronic Level Control (ELC) Fuse, Rear Defog Fuse, Heated Mirror Fuse
BODY 3 Controlled Power Relay, Controlled Power Back-up Relay Mirror Fuse, Platform Zone Module (PZM) Fuse, Radiophone Fuse, Cluster Fuse, AMP Fuse Comfort Fuse
INADVERT Inadvertent Power Relay, Brushless Blower Motor, Interior Lamps Fuse, Cigarette Lighter- 1 Fuse, Cigarette Lighter-2 Fuse
LAMPS Highbow Beam Relay, Headlamp Relay, Fog Lamp/DRL Fuse, Hazard Fuse, Mirror Fuse, Headlamp Fuse, Right and Left High Beam Fuse, Right and Left Low Beam Fuse, Stop Fuse
IGN 1 Rear Ignition-1 Relay, Wiper Fuse, Relay Ignition- 1 Fuse, Supplemental Inflatable Restraint (SIR) Fuse
WINDOWS Delayed Accessory Bus (DAB) Relay
SEATS Horn Relay, Driver and Passenger Lumbar In/Out Relays, Driver and Passenger UpDown Relays, Memory Seat Module, Driver and Passenger Power Seat Switch
BATT 3 Ignition 0-Body Fuse, RTD Fuse, Ignition 0-Engine Fuse, Anti-Lock Brake System (ABS) Fuse, Turn Fuse, Console
BATT 2 Starter Enable Relay, Park-Neutral Usage Position Switch, Crank Fuse, Injector 1 and 2 Fuse, Engine, Control System (ECS) Fuse, PCM
Fuse, DIS Fuse, ‘Ignition-1 Fuse, ACC Fuse
IGN 1* Front Ignition- 1 Relay, Oxygen Sensor 1 and 2 Fuse, Fuel Fuse, Cruise Fuse
BATT 1 Starter Relay, PCM Fuse, AC Compressor Fuse
BRAKES ABS Brake Modulator
COOL FNS Cooling Fan Relays 1,2,3
* Do not alter OBD II related fuses or circuit breakers

Rear Compartment Fuse Block

The fuse block is located on the front wall of the trunk (behind the rear seat) on the driver’s side.

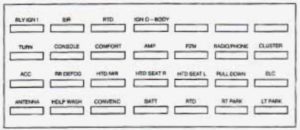

Cadillac Seville – fuse box diagram – rear compartment
Cadillac Seville – fuse box diagram – rear compartment
Fuse name Usage
RLY IGNl* SDM, Cluster, Cruise in Stalk, Brake Switch, PZM, Fuel Level Sensor, Catalytic Converter Overtemp Amplifier (Export)
IGN 0- BODY PRNDL, Heated Windshield (Optional), PZM, Cluster, Air Control Module (ACM), Upper and Lower Zone Motor, HVAC Solenoids, Climate Control Panel (Optional), Rear Defog Relay, ELC Relay
TURN Cornering Lamp Switch, Right and Left Cornering Lamps, Electronic Flasher Module, Turn/Hazard Switch, Right and Left Rear Turn Signal Lamps, Right and Left Front Turn Signal Lamps, Repeater Lamps (Export)
CONSOLE Cellular Phone Portable Docking Station, Washer Circuit Board,
Heated Seat Switch, Rear Zone Blower, Right and Left Heated
Seat Switches, Headlamp Wash Relay
COMFORT CD Player, Remote Function Actuator (RFA), Controlled Power Relay, Air Control Module (ACM), PZM
AMP (Optional) Right and Left Hand Bose Relay, Right Front and Rear Speaker (On Door), Left Front and Rear Speaker (On Door
RADIO/PHONE Radio Receiver, Radio Interface Module (RIM)(Bose Only),  Phone, DAB Relay, Trunk Release Relay, Fuel Door Release Relay, High Beam Relay
CLUSTER Steering Wheel Controls, Cluster
ACC PZM, Electrochromic Mirror, Rain Sensor (Optional), Accessory Relay
RR DEFOG Rear Defog
HTD MIR Right and Left Outside Heated Mirror
HTD SEAT R Passenger Heated Seat Relay
HTD SEAT L Driver Heated Seat Relay
PULL DOWN Trunk Pull-Down Motor
ELC ELC Relay and motor
ANTENNA Power Mast Antenna
HDLP WASH Headlamp Wash Relay (Export) Headlamp Wash Motor
CONVENC Trunk Release Relay, Trunk Release Solenoid, Fuel Door Release Relay, Fuel Filler Door Release Solenoid, Door Lock Relay, Right and Left Front Door Motors, Right and Left Rear Door Motors, Door Unlock Relay
BATT Driver and Passenger Seat Lumbar Switch, Lumbar Switch (Driver Seat Only), Memory Seat Module
RTD RTD Module
RT PARK Front and Rear Park Lamps, Right Front and Rear Sidemarker Lamps, Headlamp Switch (Export), Rear Fog Lamp Relay (Export), Headlamp Switch
LT PARK Left Front and Rear Sidemarker Lamps, Right and Left Parking Lamps, License Lamp, Underhood Lamp
*Do not alter OBD II related fuses or circuit breaker

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
