Cadillac Catera (1997) – fuse box diagram

Cadillac Catera (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block (Driver’s Side)

The fuse block is located below the steering wheel on the driver’s side.

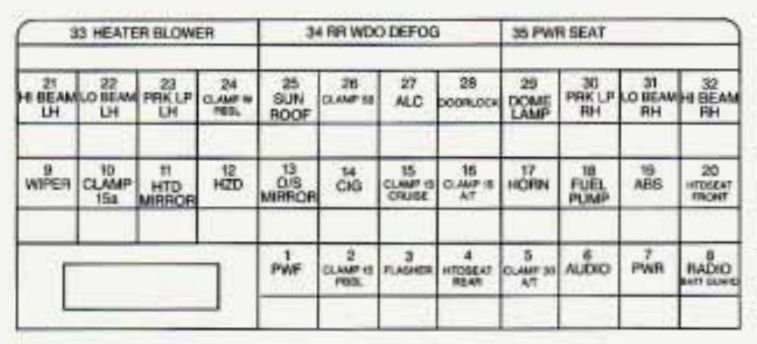

Cadillac Catera – fuse box diagram – instrument panel (driver’s side)
Cadillac Catera – fuse box diagram – instrument panel (driver’s side)
Fuse Usage
1 RH and LH Front Side Door Window Regulator Motor, LH Front Side Door Window Switch
2 Stoplamp Switch
3 Automatic Transmission Switch and Control Indicator, Power Steering Control Module, Hazard Warning Switch
4 RH and LH Rear Seat Cushion Heater Relay
5 Transmission Control Module
6 Sound Processor Amplifier
7 RH and LH Rear Side Door Window Regulator Motor
8 Headlamp Switch, Turn Signal Switch, Horn Relay, CD Changer, Multifunction Relay Module
9 Windshield Wiper Motor and Relay, Windshield Wiper and Windshield Washer Switch
10 Body Control Module (BCM), Auxiliary Water Pump, Heater and A/C Control, Fan Control Relays
11 Heater and A/C Control, RH and LH Outside Rearview Mirrors, Outside Remote Control Rearview Mirror Switch
12 Hazard Warning Switch, Instrument Cluster, Data Link Connector (DLC), Stoplamp Switch, Gage Cluster, Heater and A/C Control
13 Remote Control Outside Rearview Mirror Switch, A/C Compressor Relay, Test Connector, A/C Control Switch
14 Cellular Telephone, Cigarette Lighter, RH and LH Windshield Washer Nozzle, Driver and Passenger Heated Seat Switch, Heater and A/C Control, Heated Outside Rearview Mirror and Rear Window Defogger Relay
15 Rear Suspension Leveling Air Compressor Relay, Instrument Cluster, Gage Cluster, Cruise Control Switch and Module, Headlamp Switch, Multifunction Relay Module, Passenger and Driver Heated Seat Relay, BCM, Sunroof Actuator, Automatic Level Control Sensor, RH and LH Heated Rear Seat Switch and Cushion Relay, Driver Seat Adjuster Memory Module, LH Front Side Door Window Switch, Inside Rearview Mirror
16 Transmission Control Module
17 Horn #I and #2
18 Fuel Pump
19 Electronic Brake/Traction Control Module
20 Passenger and Driver Heated Seat Relay
21 Daytime Running Lamp (DRL) Relay, LH High-Beam Headlamp Relay
22 Headlamp Switch and LH Low-Beam Headlamp
23 Multifunction Relay Module, LH Park/Turn Signal Lamp, LH StopRaillamp, LH Rear Side Marker Lamp
24 Lifting Magnet, BCM, Gage Cluster
25 Sunroof Actuator
26 Headlamp Switch, RH and LH Front Side Marker Lamp, Middle Taillamp, RH and LH Rear License Plate Lamp, Radio, Automatic Transmission Control Indicator, Heater and A/C Control
27 Automatic Level Control Sensor, Rear Suspension Leveling Air Compressor and Relay
28 Remote Control Door Lock Receiver, Door Lock Relay, Rear Compartment Lid Release Connector (Not Used)
29 Multifunction Relay Module
30 Turn Signal Switch and RH Low-Beam Headlamp
31 RH Low-Beam Headlamp Turn Signal Switch
32 RH High-Beam Headlamp Relay
33 Blower, A/C Compressor Relay
34 Heated Outside Rearview Mirror and Rear Window Defogger Relay
35 Passenger and Driver Seat Adjuster Switches, Driver Seat Adjuster Memory Module



Instrument Panel Fuse Block (Passenger’s Side)

The relay box is located on the lower part of the instrument panel, to the right of the steering column.

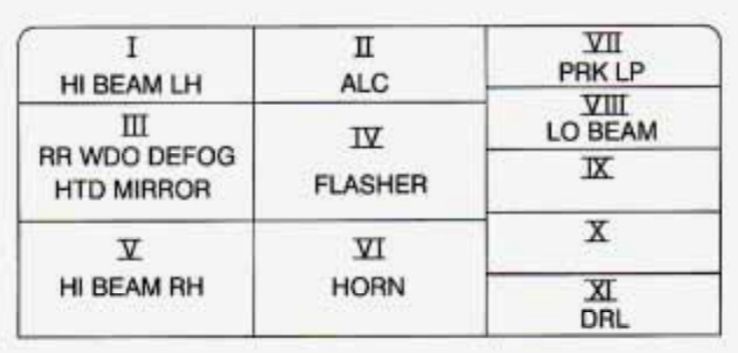

Cadillac Catera – fuse box diagram –instrument panel (passenger’s side)
Cadillac Catera – fuse box diagram –instrument panel (passenger’s side)
Fuse/Relay Usage
I High-Beam Headlamp – LH
II Automatic Level Control
III Heated Rear Window, Heated Power Mirrors
IV Hazard Warning Flashers
V High-Beam Headlamp – RH
VI Horn
VII Parking Lamps
VIII Low-Beam Headlamps
IX
X
XI Daytime Running Lamps



Engine Compartment Relay Center

The relay center is located next to the battery on the driver’s side of the engine. Lift the cover to access.

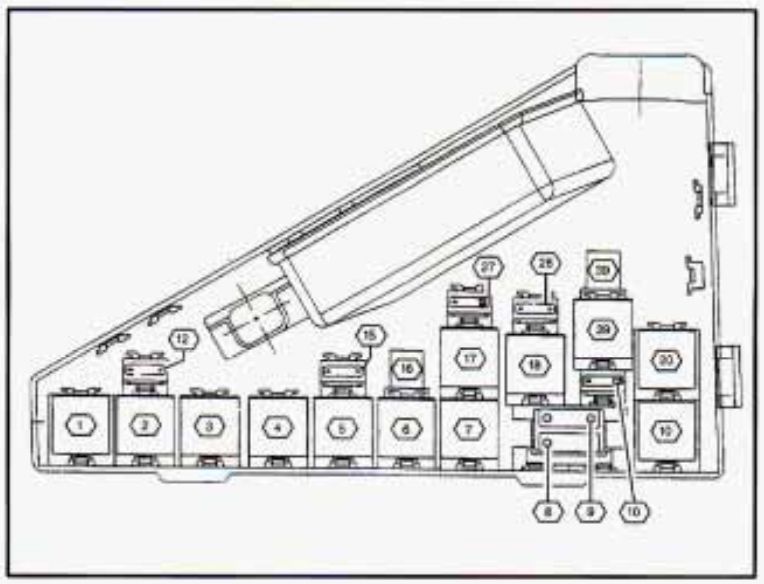

Cadillac Catera – fuse box diagram – engine compartment

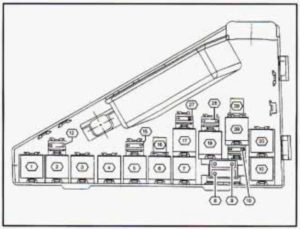

Cadillac Catera – fuse box diagram – engine compartment
Fuse Usage
1 Secondary Air Induct
2 A/C Blower-Radiator
3 Coolant Pump Follow-Up
4 Interval Windshield Washer and Wiper
5 A/C Compressor
6 A/C Blower-Radiator
7 A/C Blower-Radiator
8 A/C Blower-Radiator
9 Secondary Air Induct
10 Injection Valves
12 Blower-Radiator
15 A/C Blower-Radiator
16 Plug Connection
17 A/C Blower-Radiator
18 A/C Blower-Radiator
19 Relay
20 Fuel Pump
27 Oxygen Exhaust Sensor
28 Control Unit
29 Blower Box
39 Diagnostic Plug Connection



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
