Buick Century (1990) – wiring diagrams – HVAC controls

8 June 2017 admin Buick, Century 0

Buick Century (1990) – wiring diagrams – HVAC controls

Year of productions:  1990

HVAC controls

Version 1

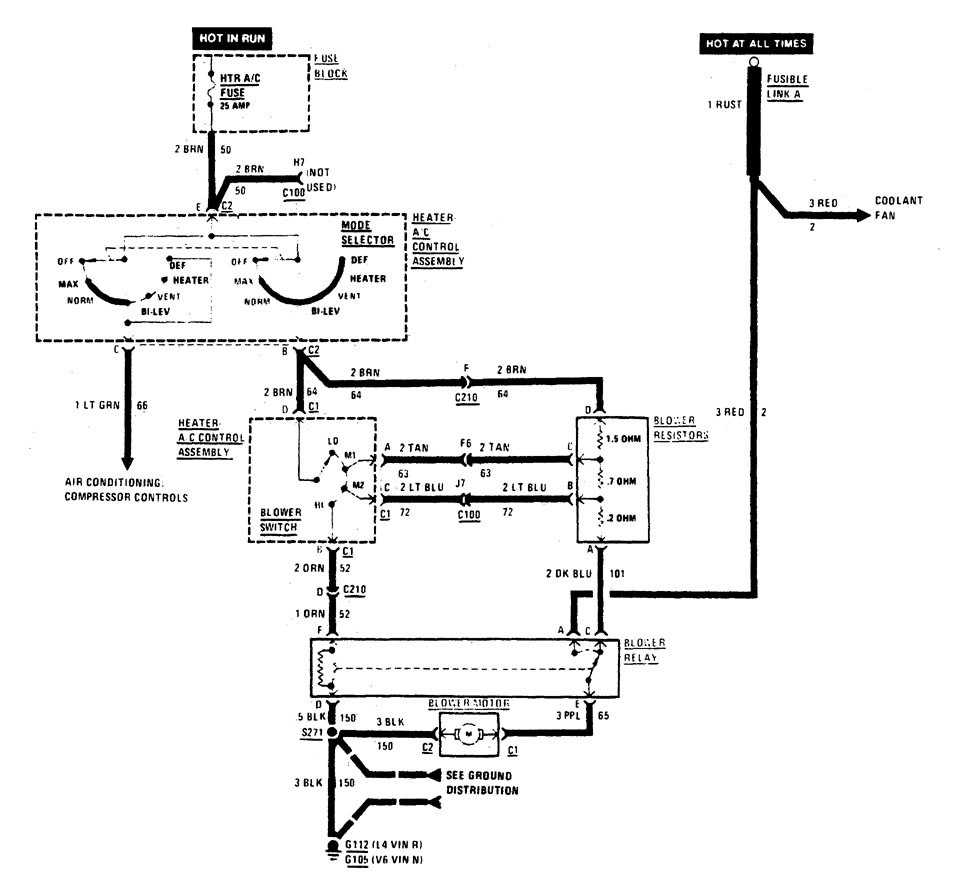

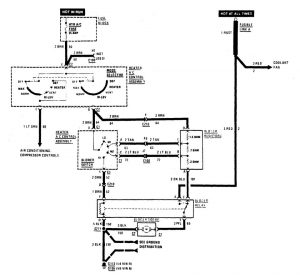

Buick Century – wiring diagram – HVAC controls

Version 2

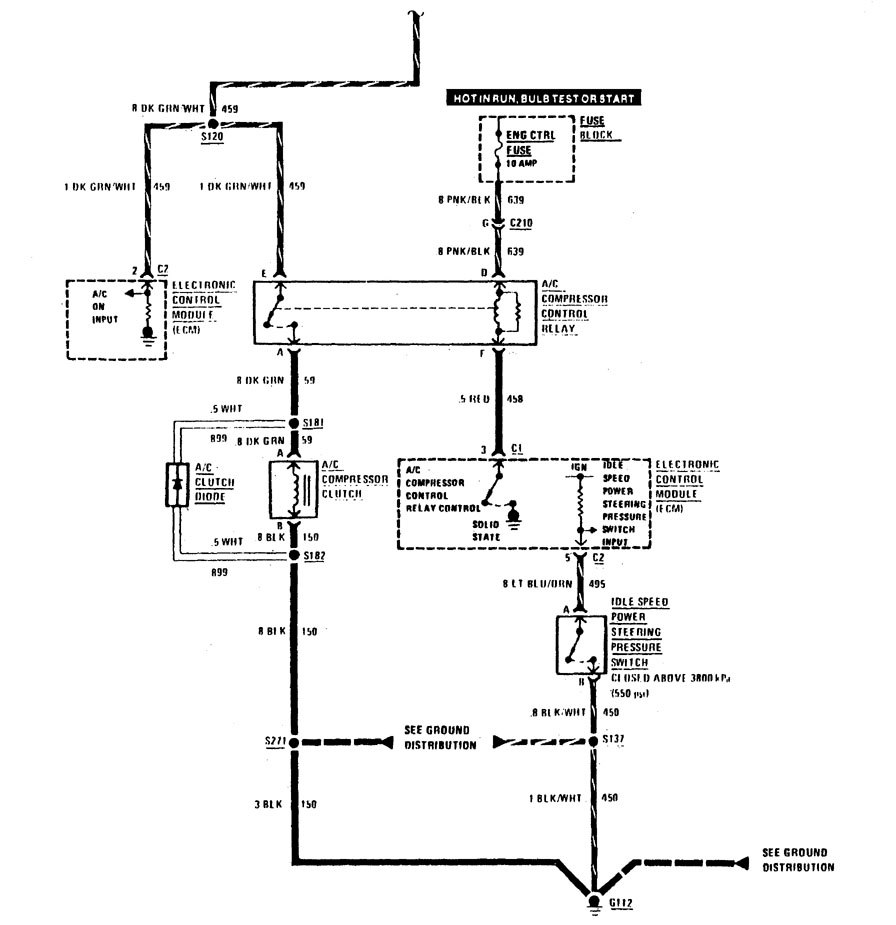

Buick Century – wiring diagram – HVAC controls (part 1)

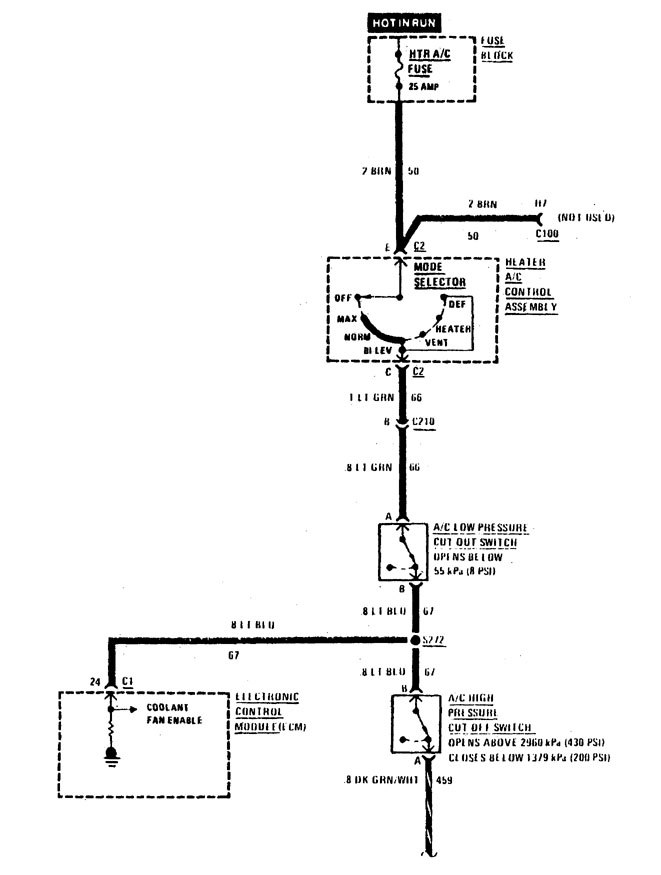

Buick Century – wiring diagram – HVAC controls (part 2)

Version 3

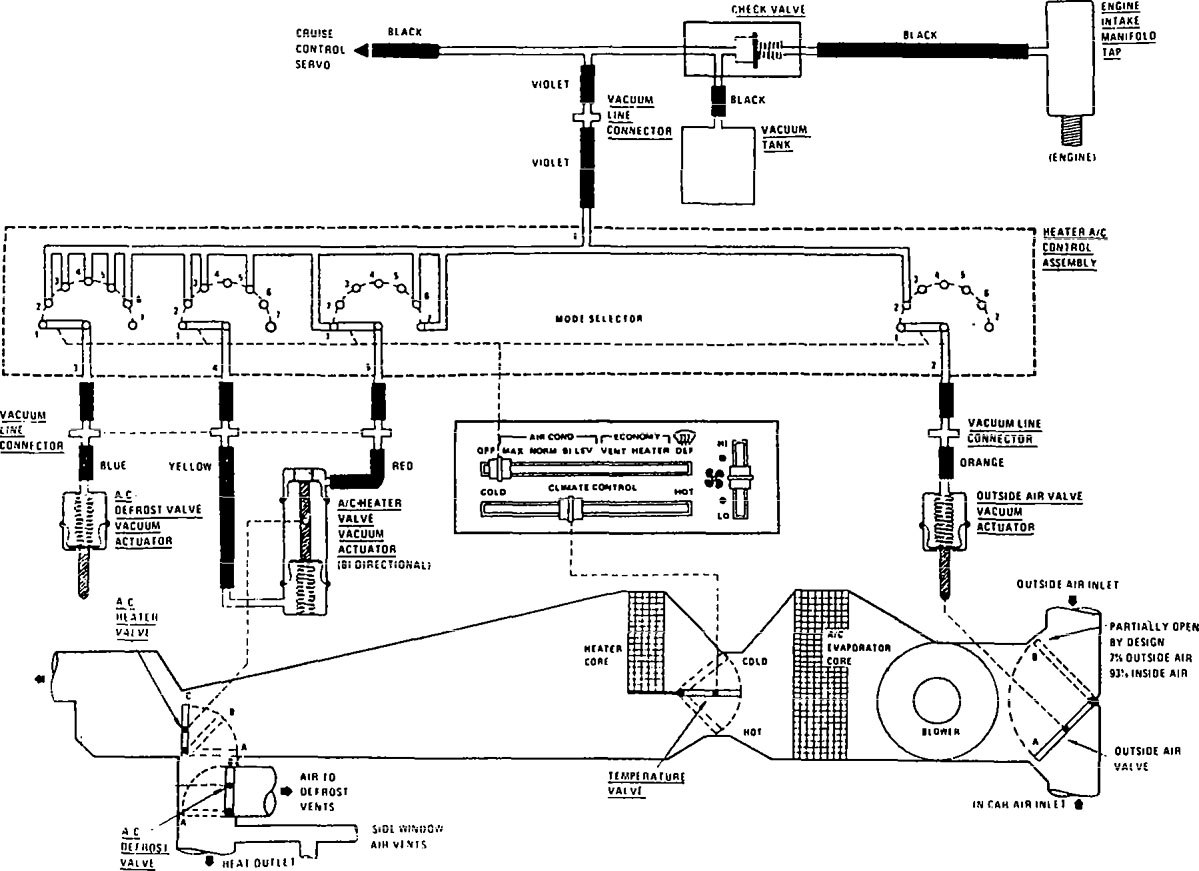

Buick Century – wiring diagram – HVAC controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
