Buick Century (1987) – wiring diagrams – ground distribution

23 May 2017 admin Buick, Century 0

Buick Century (1987) – wiring diagrams – ground distribution

Year of productions:  1987

Ground distribution

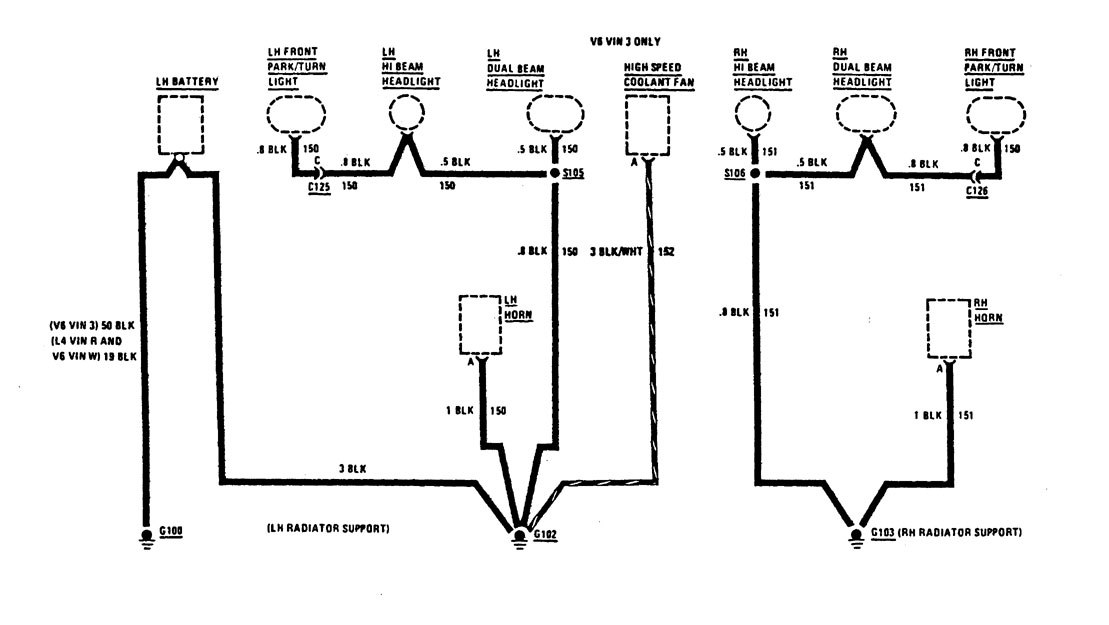

Version 1

Buick Century – wiring diagrams – ground distribution

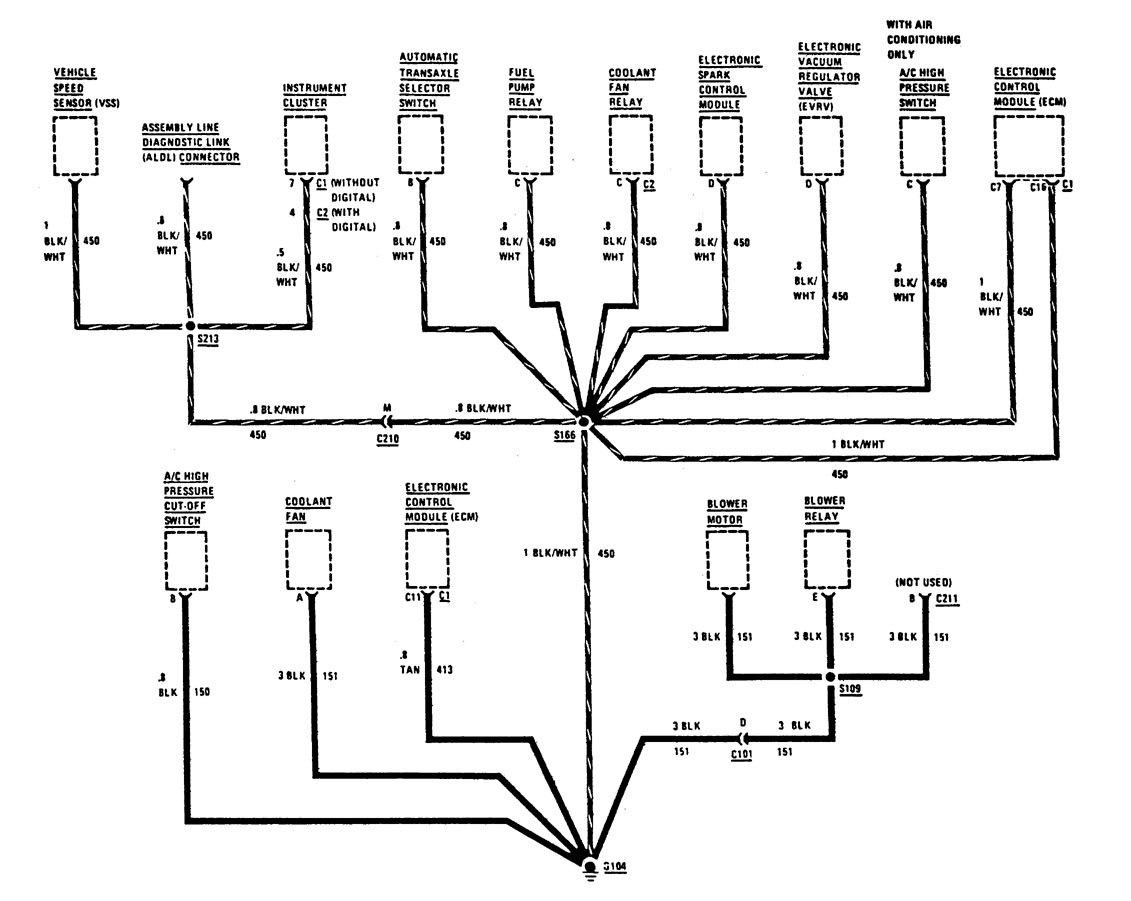

Version 2

Buick Century – wiring diagrams – ground distribution

Version 3

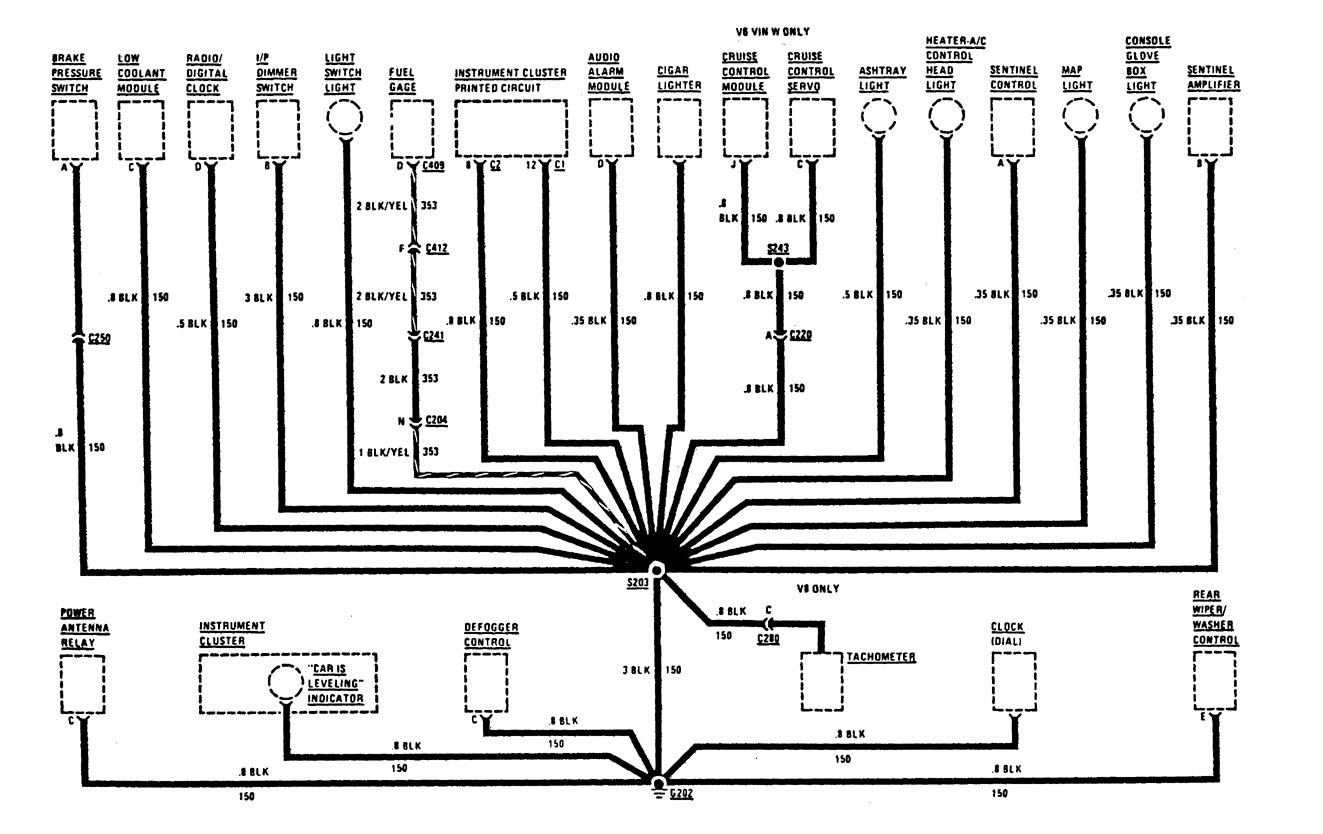

Buick Century – wiring diagrams – ground distribution (part 1)

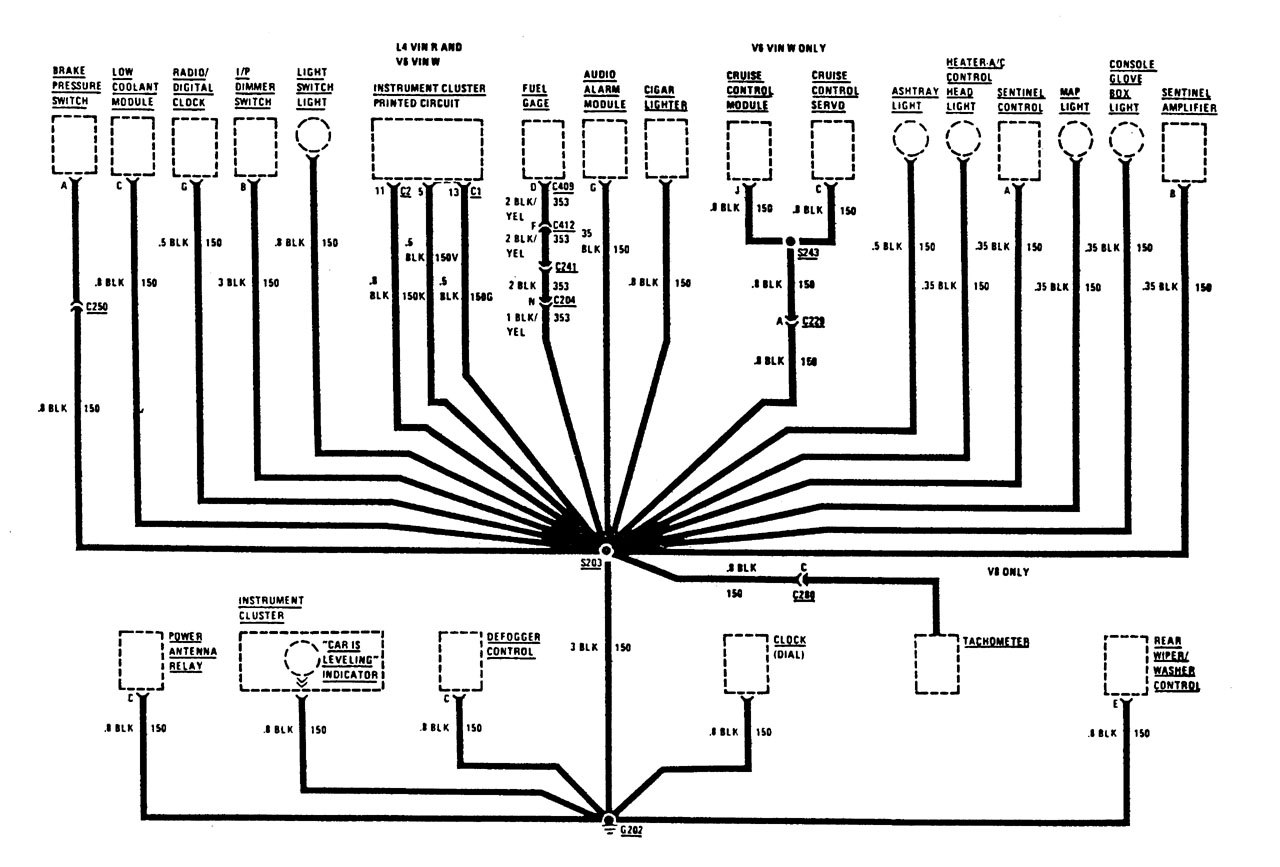

Buick Century – wiring diagrams – ground distribution (part 2)

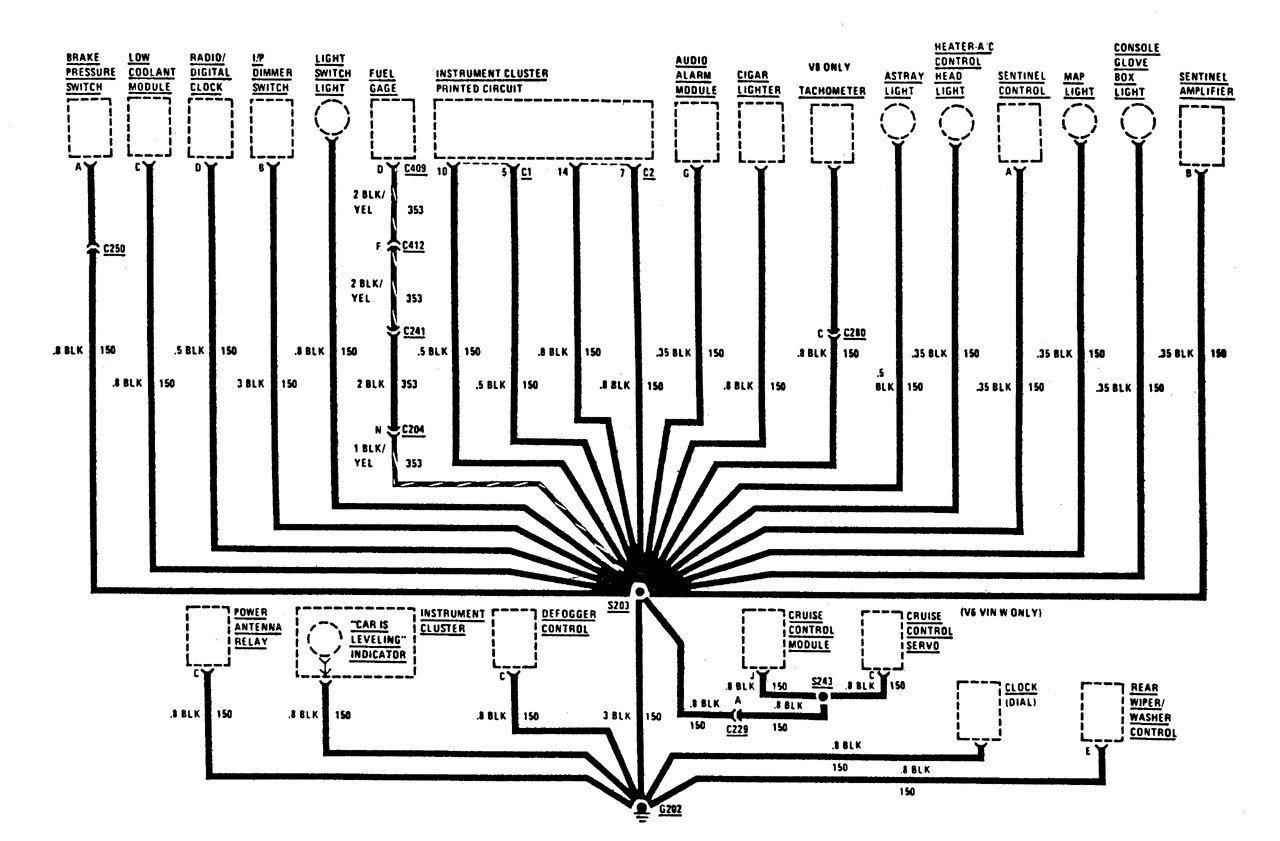

Version 4

Buick Century – wiring diagrams – ground distribution

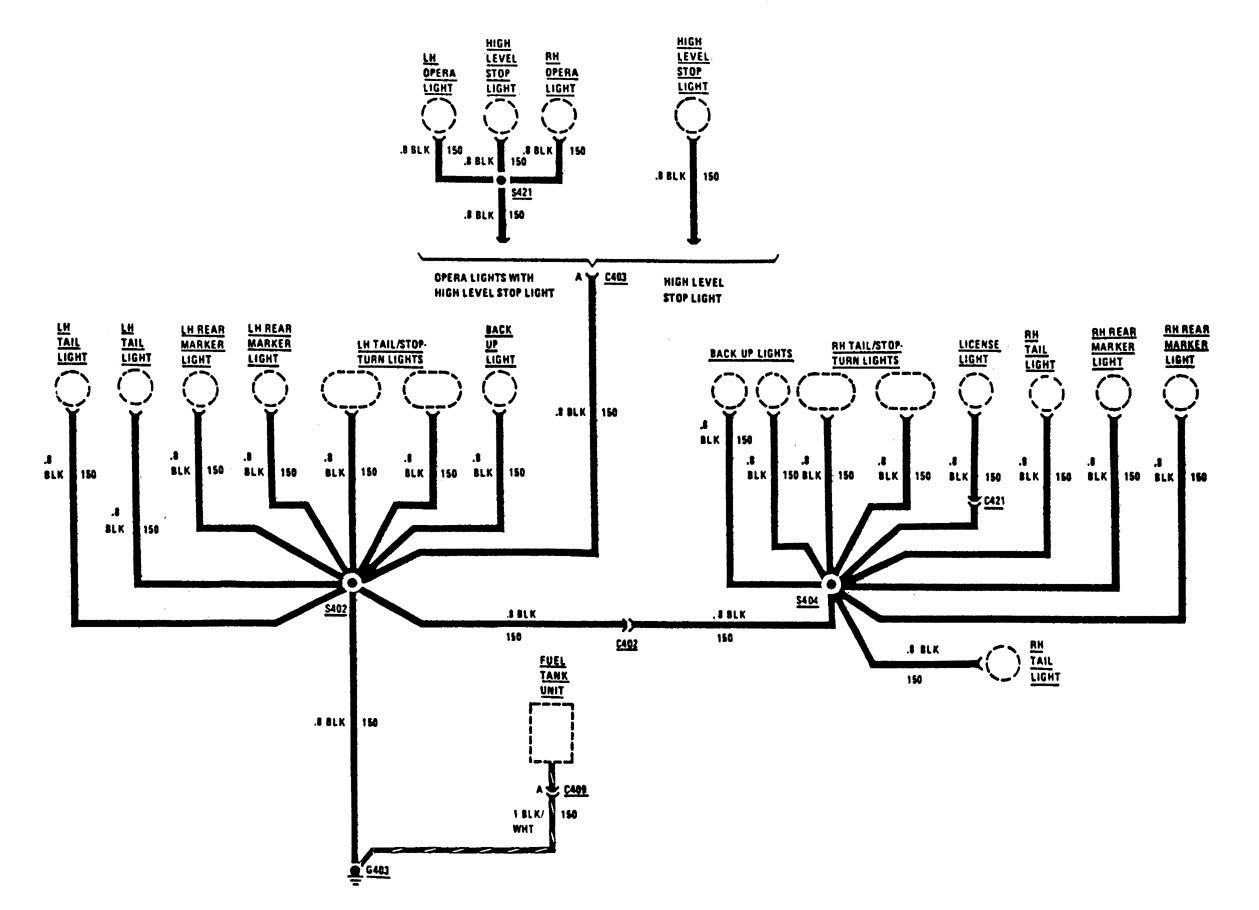

Version 5

Buick Century – wiring diagrams – ground distribution

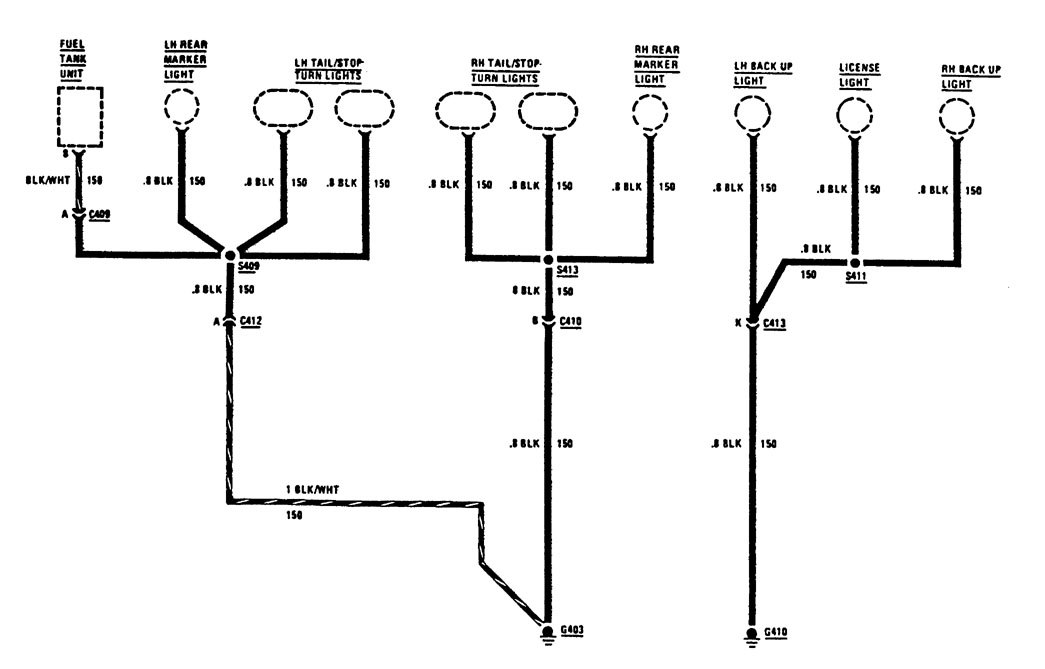

Version 6

Buick Century – wiring diagrams – ground distribution

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
