Buick Century (1986) – wiring diagrams – instrumentation

Year of productions:  1986

Instrumentation

Version 1

Buick Century – wiring diagram – instrumentation (part 1)

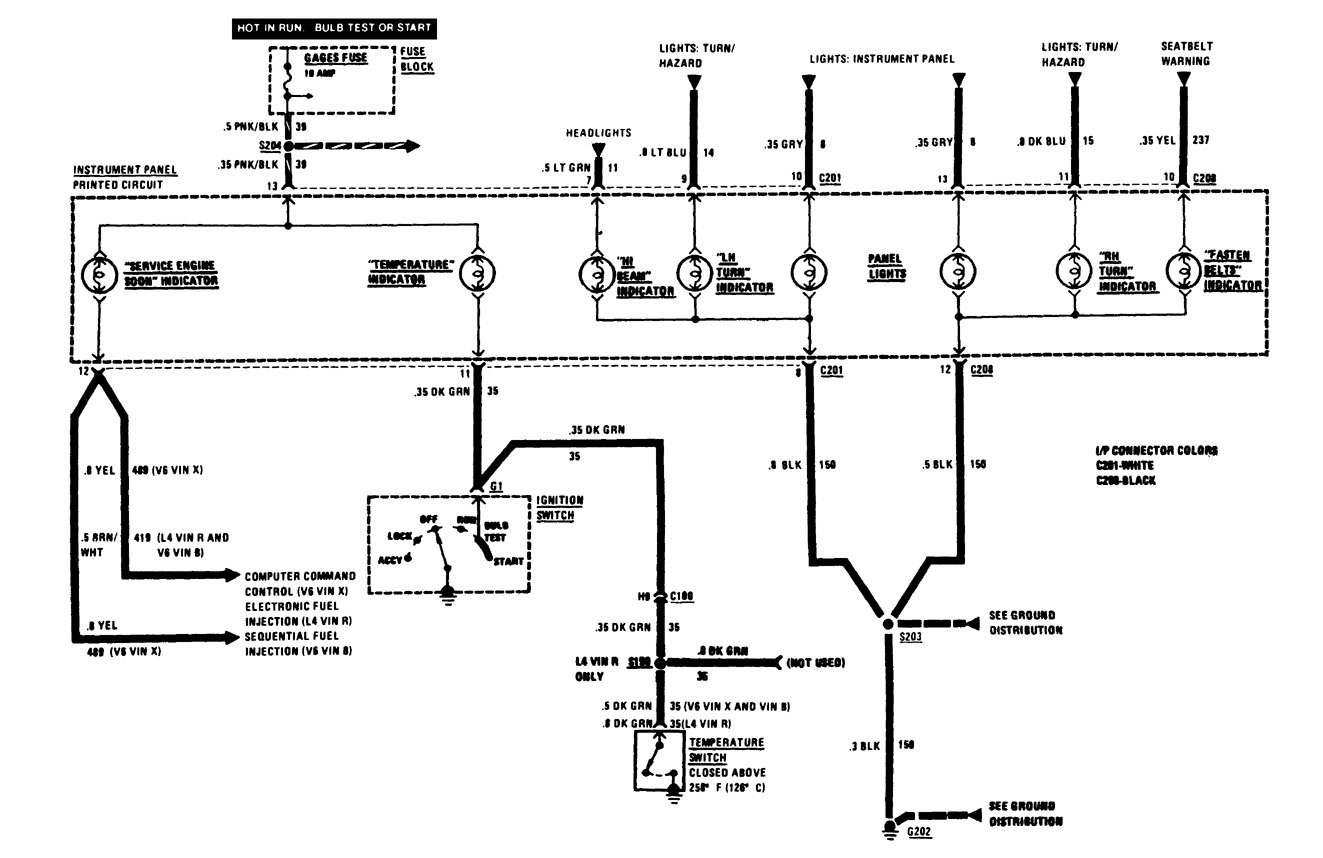

Buick Century – wiring diagram – instrumentation (part 2)

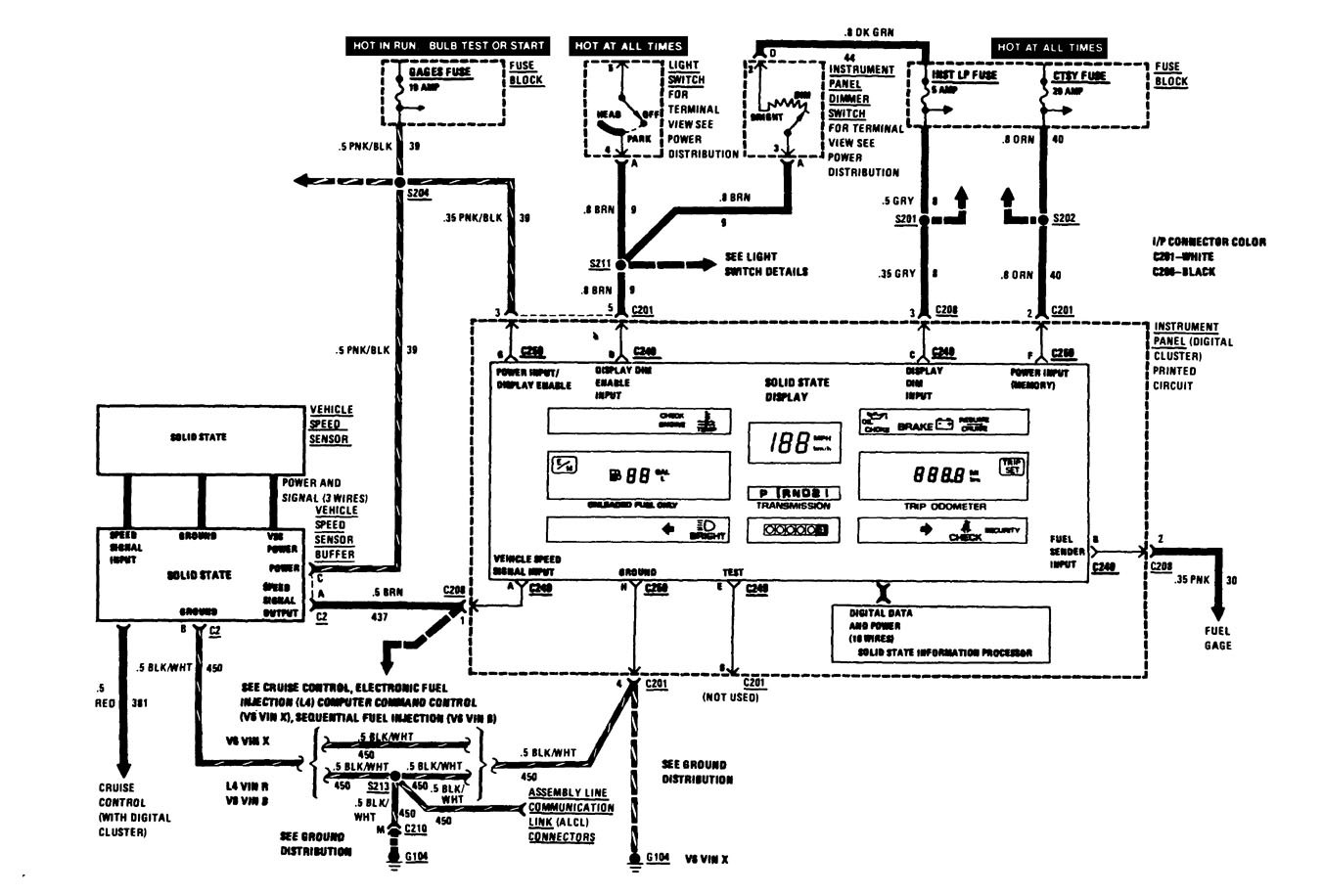

Buick Century – wiring diagram – instrumentation (part 3)

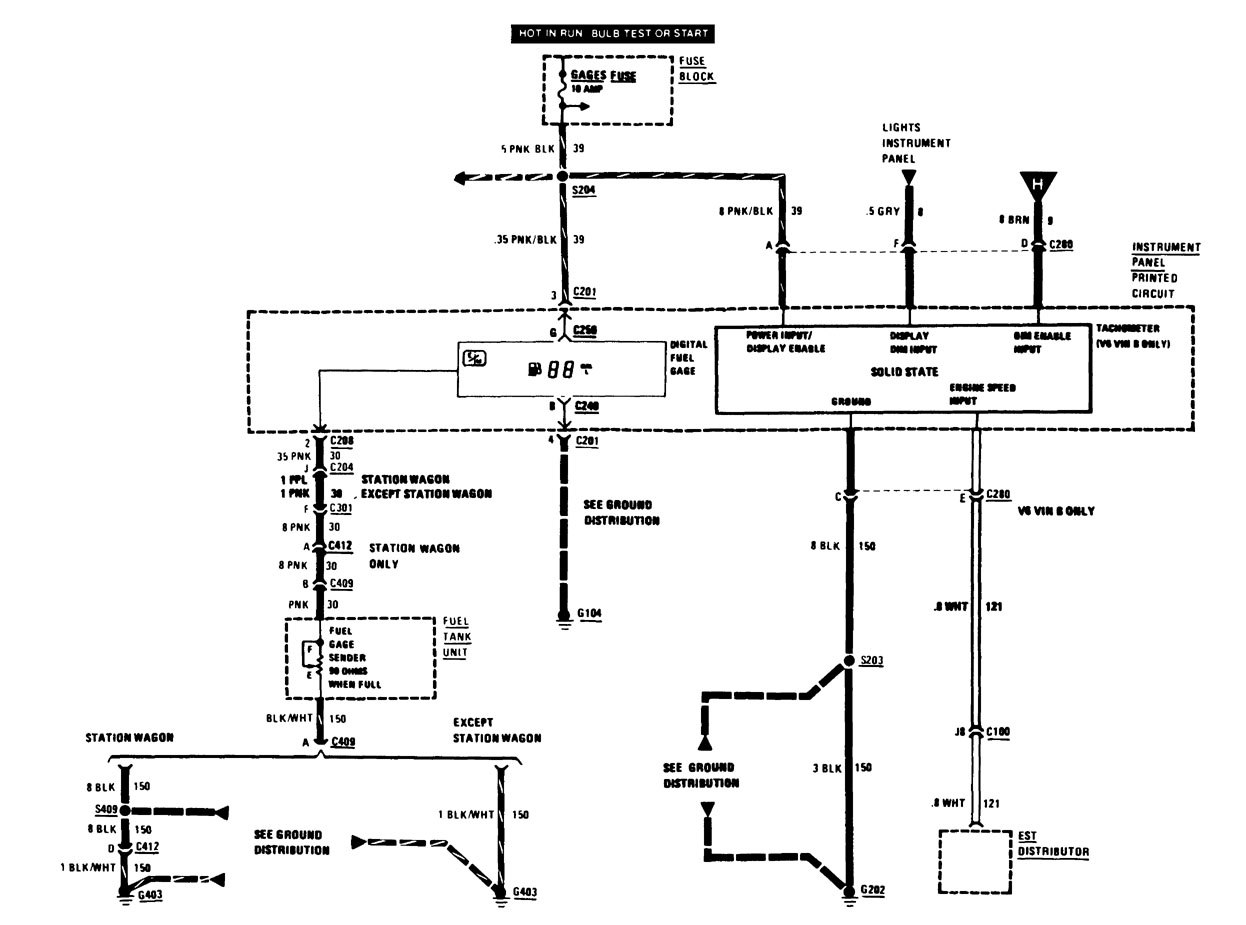

Buick Century – wiring diagram – instrumentation (part 4)



Version 2

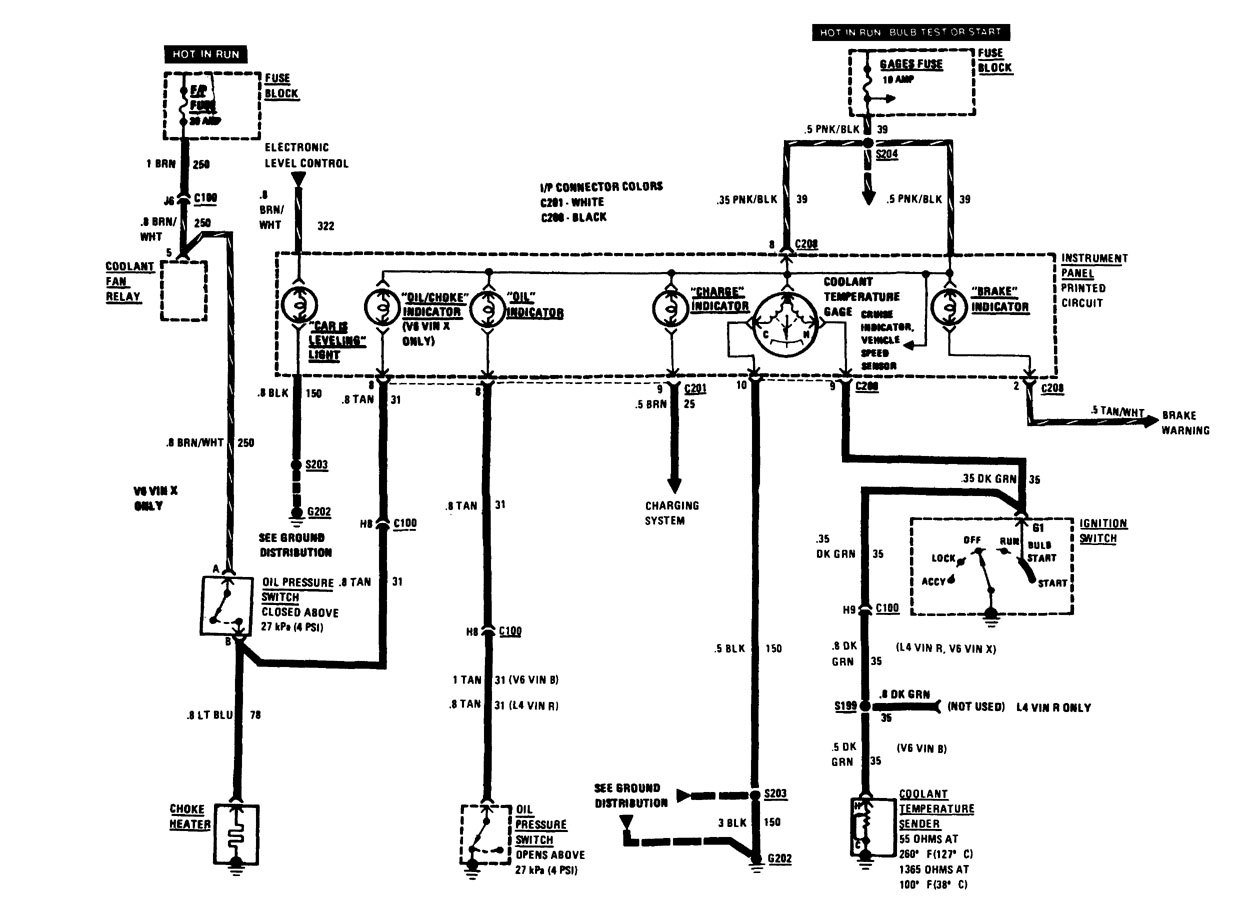

Buick Century – wiring diagram – instrumentation (part 1)
Buick Century – wiring diagram – instrumentation (part 2)

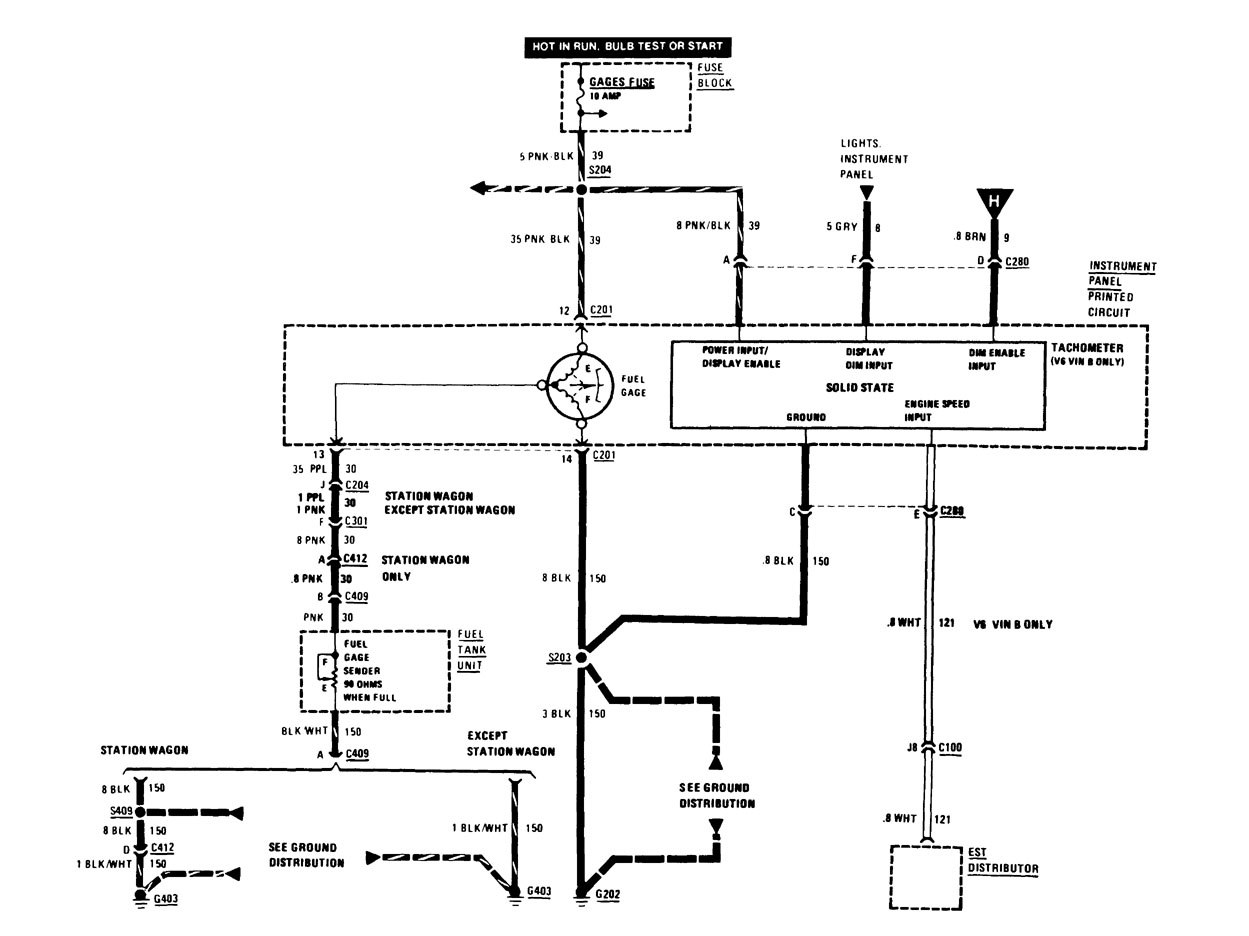

Buick Century – wiring diagram – instrumentation (part 3)

Version 3

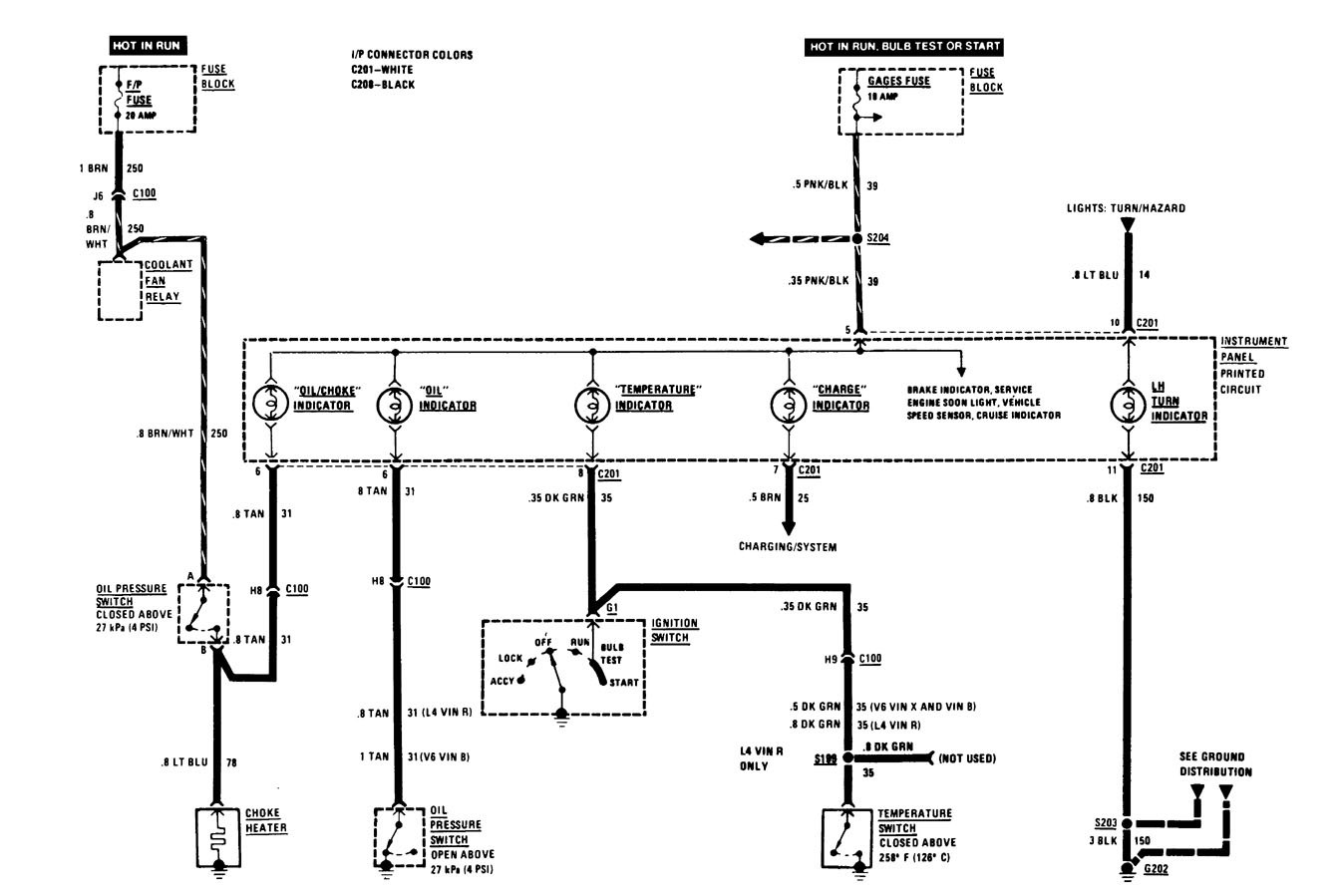

Buick Century – wiring diagram – instrumentation (part 1)

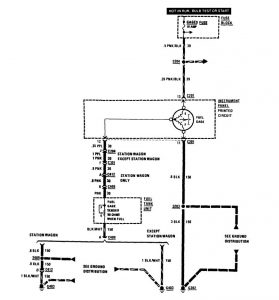

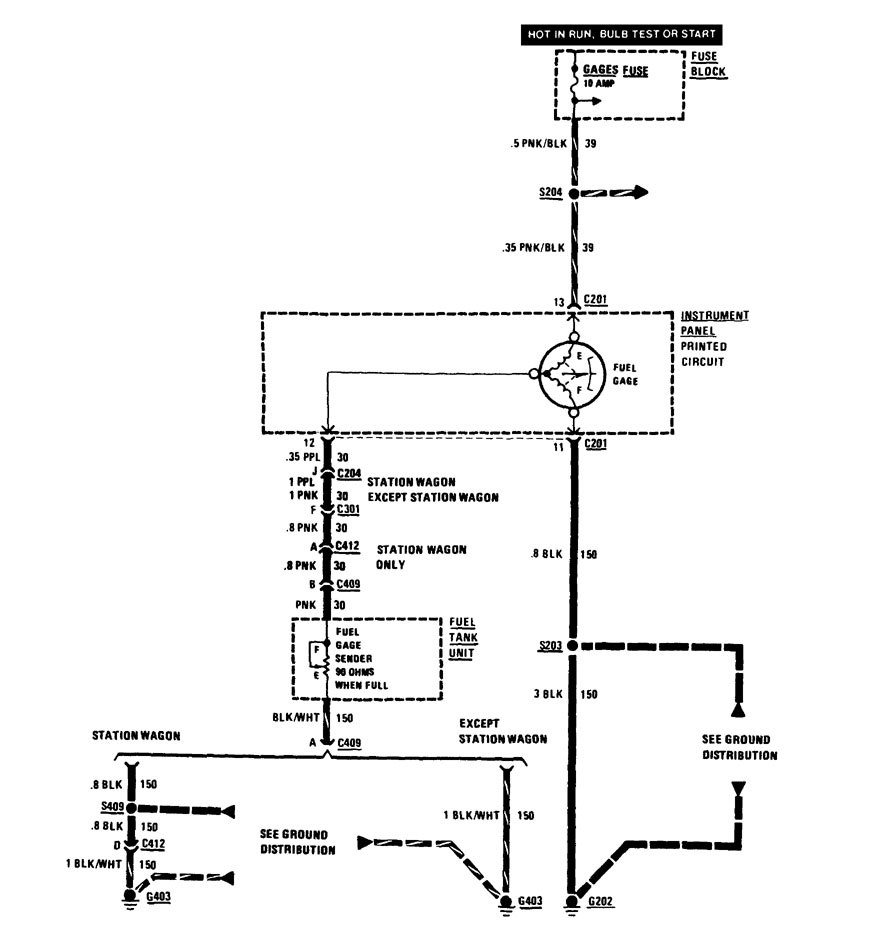

Buick Century – wiring diagram – instrumentation (part 2)

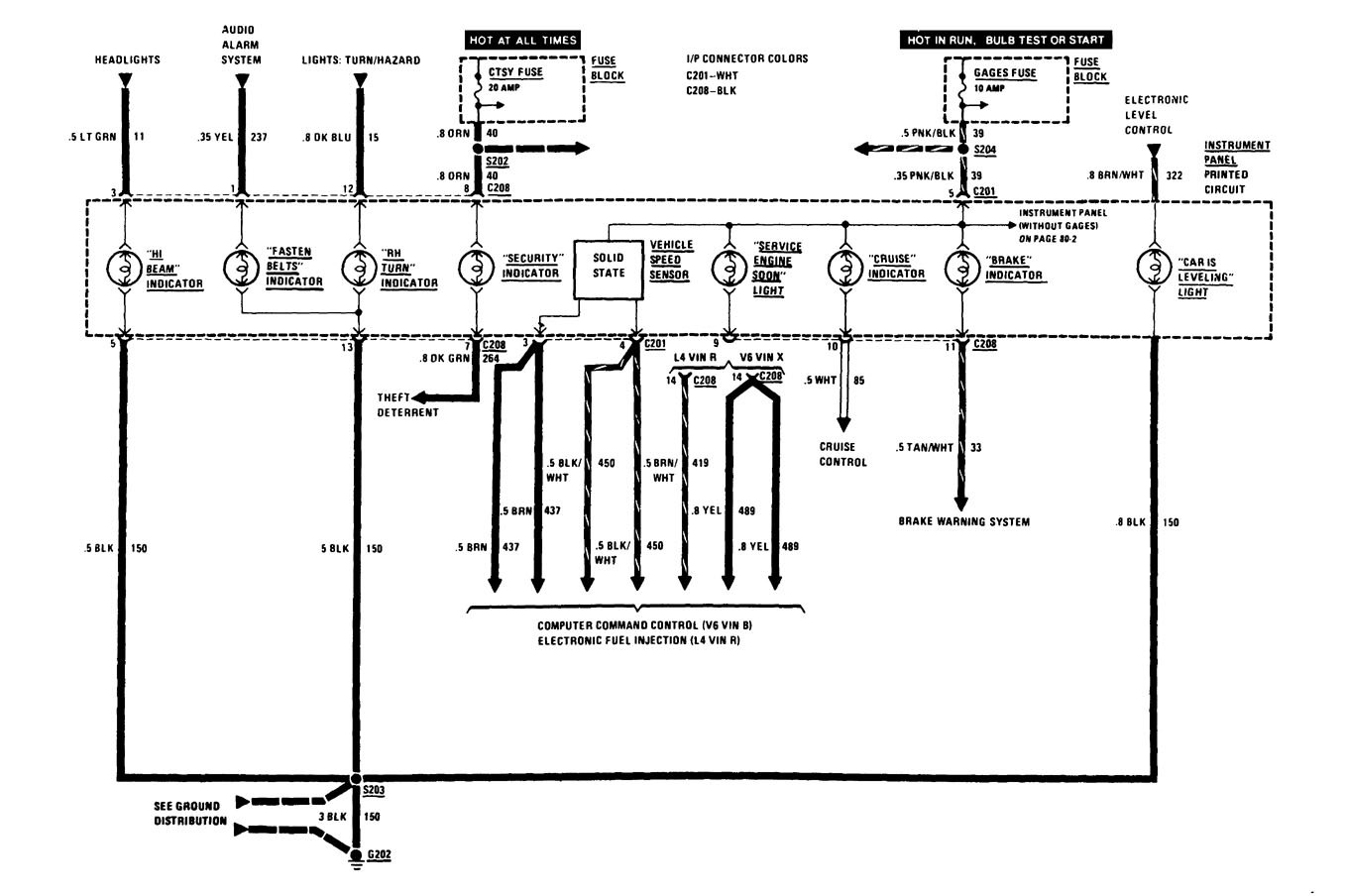

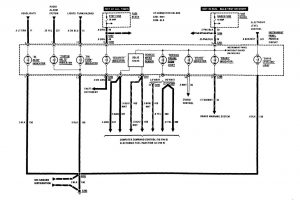

Buick Century – wiring diagram – instrumentation (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
