Bobcat 331E – fuse box diagram

Bobcat 331E – fuse box diagram

Year of production:

Fuse box

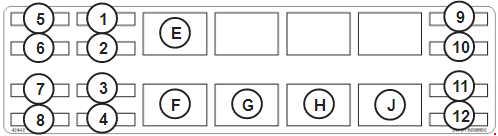

Bobcat 331 – wiring diagram – fuse box diagram
Number Ampers Protected circuit
1 5 Wiper
2 20 Switched Power
3 25 Alternator/Power Relay
4 25 Attach.  Control  Device
6 25 Air Cond., Heater Fan
7 5 Ignition
8 25 Fuel Solenoid
9 25 Controller
10 25 Attach.  Control  Device
11 20 Lights
12 15 Accessory Plug
E Switched Power
F Fuel Solenoid
G Lights
H Glow Plugs
J Starter

The excavator has a 12 volt, negative ground electrical system. The electrical system is protected by fuses located under the cover at the right side of the excavator (Item 1). The fuses will protect the electrical system when there is an electrical overload. The reason for the overload must be found before starting the engine again.


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
