BMW Z8 E52 – vehicle specification
Engine specification
| BMW Z8 | ||
| Displacemen | cu in (ccm) | 301.5 (4,941) |
| Number of cylinders | 8 | |
| Maximum output at engine speed | hp | 394 |
| rpm | 6,600 | |
| Maximum torque at engine speed | ft lbs (Nm) | 368 (500) |
| rpm | 3,800 | |
| Compression ratio | E | 11 |
| Stroke | in (mm) | 3.50 (89.0) |
| Bore | in (mm) | 3.70 (94.0) |
| Fuel injection system | Digital electronic engine-management system | |

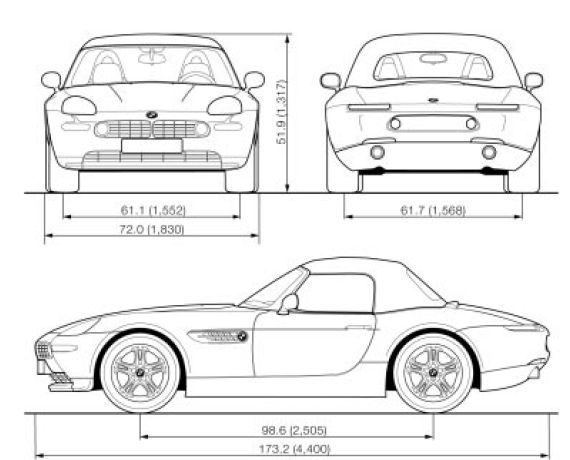

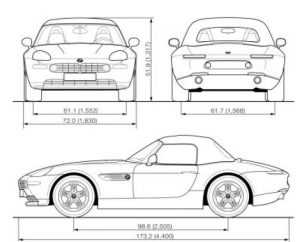

Dimensions
Weights
| BMW Z8 | ||
| Curb weight (with one person, ready for operation, full tank of fuel, without hardtop) | Ibs. (kg) | 3,725 (1,690) |
| Approved gross vehicle weight | Ibs. (kg) | 4,255 (1,930) |
| Approved front axle weights | Ibs. (kg) | 2,028 (920) |
| Approved rear axle weights | Ibs. (kg) | 2,359 (1,070) |
| Approved roof load capacity | Ibs. (kg) | — |
| Luggage compartment capacity | cu ft (litres) | 7.2 (203) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
