Audi TTS Coupe (2016 – 2017) – fuse box diagram

Audi TTS Coupe (2016 – 2017) – fuse box diagram

Year of production: 2016, 2017

Instrument panel

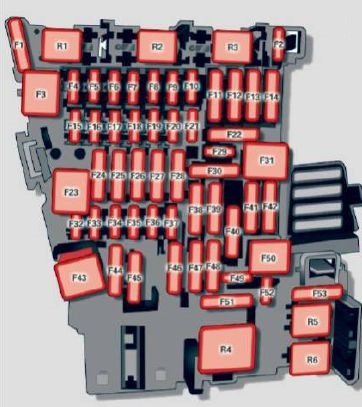

Audi TTS Coupe - wiring diagram - fuse box diagram - instrument panel
Audi TTS Coupe – wiring diagram – fuse box diagram – instrument panel
Number Equipment
F1 Power top control modu le (Roadster)
F2 Power top control modu le (Roadster)
F3 ESC control module
F4 Central computer processor (MIB-2)
F5 Gateway
F6 Anti-theft alarm system
F7 Climate control system, selector lever (automatic transmission), parking heater, rear window heater relay coil
F8 Diagnosis, electrical parking brake switch, light switch, rain/light sensor, interior lighting
F9 Steering column switch module
F10 Display
F11 Haldex clutch
F12 MMI area
F13 Adaptive dampers control module
F14 Climate control system blower
F15 Electronic steering column lock
F16 MMI components, safety belt microphone (Roadster)
F17 Instrument cluster
F18 Rearview camera
F19 Convenience key system control module
F20 Power lumbar support adjustment
F22 Front passenger’s side upper cabin heating (Roadster)
F23 Right exterior lighting, on-board computer (right)
F25 Driver’s side door (for example power windows)
F26 Seat heating
F28 AMI High media port
F29 On-board computer
F31 Left on-board computer
F32 Driver assistance systems
F33 Airbag
F34 Socket relay, interior sound, back-up light switch, temperature sensor, oil level sensor
F35 Diagnosis, headlight range control system, air quality sensor, automatic dimming rearview mirror
F36 Right cornering light/ right LED-headlight
F37 Left cornering light/ left LED-headlight
F38 Engine control module, ESC control module
F39 Front passenger’s side door (for example power windows)
F40 Cigarette lighter, sockets
F41 SCR relay and delivery unit
F42 Central locking area
F43 On-board computer
F45 Power adjustable driver’s side seat
F46 Driver’s side upper cabin heating (Roadster)
F49 Starter, clutch sensor
F50 ESC valves
F53 Rear window defogger

Engine compartment

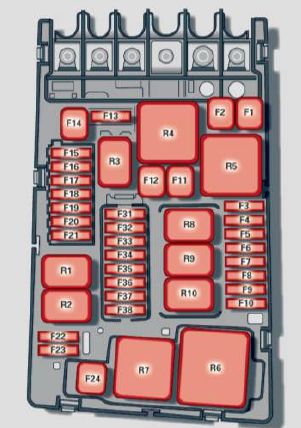

Audi TTS Coupe - wiring diagram - fuse box diagram - engine compartment
Audi TTS Coupe – wiring diagram – fuse box diagram – engine compartment
Number Equipment
F1 ESC control module
F2 ESC control module
F3 Engine control module
F4 Engine cooling, engine components, auxiliary heater coil relay (1+2), secondary air injection pump relay
F5 Engine components, tank system
F6 Brake light sensor
F7 Engine components
F8 Oxygen sensor
F9 Engine components, exhaust door, glow time control module
F10 Fuel injectors, fuel control module
F11 Auxiliary heater heating element 2
F12 Auxiliary heater heating element 3
F13 Automatic transmission cont rol module
F15 Horn
F16 Ignition coil
F17 ESC control module , engine control module
F18 Terminal 30 (reference voltage)
F19 Windshield wipers
F20 Horn
F22 Terminal SO diagnos is
F23 Starter
F24 Auxiliary heater heating element 1
F32 LED headlights

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
