Audi A4 Avant (2008) – fuse box diagram

Audi A4 Avant (2008) – fuse box diagram

Year of production: 2010

Instrument panel (driver’s side)

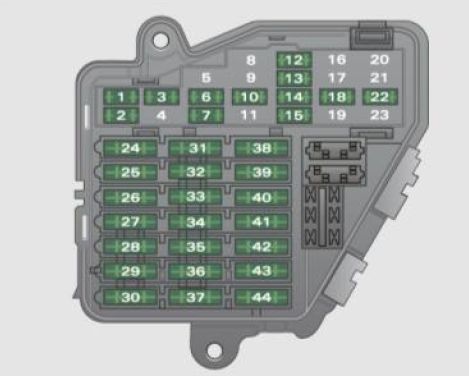

Audi A4 Avanti – fuse box diagram – instrument panel
Audi A4 Avanti – fuse box diagram – instrument panel
Number Electric equipment Ampere ratings [A]
1 Air conditioner 10
2 Footwell illumination 5
3 Heated washer jets 5
4 Radiator fan 5
5 Telephone, oil level sensor, multifunction switch, rear heated Seat, shift gate 10
6 Air conditioner (air quality sensor), air pressure sensor 5
7 Electronic Stabilization Program (ESP), brake light switch, clutch pedal switch, steering angle sensor 10
8 Telephone 5
9 Brake booster (vacuum pump) 15
10 Automatic headlight beam adjustment, automatic headlight range control, right 5
11 Airbag 5
12 Diagnosis socket 10
13 Steering column module 10
14 Brake lights 10
15 Instrument cluster, Navigation system 10
16 Garage door opener 5
17 Level, tire pressure control, park assist, light/rain sensor 10
18 Automatic headlight range control, left 5
19 Fog lights, rear fog light 15
20
21
22 Front doors 15
23 Rear doors 15
24 Central convenience electrical system 20
25 Heater blower 30
26 Rear window defogger 30
27 Socket for trailer towing (controller) 30
28 Fuel pump 20
29
30 Power sunroof 20
31 Automatic transmission, mirror dimming, diagnosis socket 15
32 Towing assembly 15
33 Cigarette lighter 20
34 Electrical socket 20
35 Luggage compartment socket 20
36 Windshield wiper system 30
37 Pump for windshie ld and headlight washer * system 30
38 Central elect ric, anti -theft alarm system, rear lid/ trunk release 15
39 Radio 20
40 Horn 25
41 Auxiliary heat ing 30
42 Electronic Stab ilization Program (ESP) 25
43 Engine timing 15
44 Seat heating 35



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
