AMC Hornet (1975) – fuse box diagram
Year of production: 1975

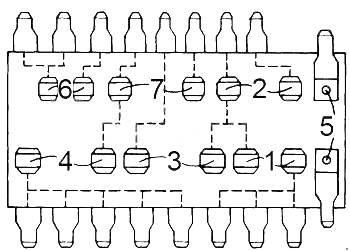

Fuse box diagram
| No. | A |
Protected Component |
| 1 | 9 | Dome light, cargo, courtesy, clock, glove box, and trunk light |
| 2 | 14 | Tail, park and instrument lights, light switch, windshield wiper, heater, cigar lighter, clock, license light, transmission, air conditioning thermostat, radio, tachometer, ash tray light, seat belt module and key buzzer |
| 3 | 20 | Stop light and hazard warning flasher |
| 4 | 20 | Turn signal, back-up lights and accessories |
| 5 | 2½ | Panel lights |
| 6 | 4 | Gauges |
| 7 | 20 | Fan |
Circuit Breaker:
|
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
