Alfa Romeo MiTo – bulbs specification

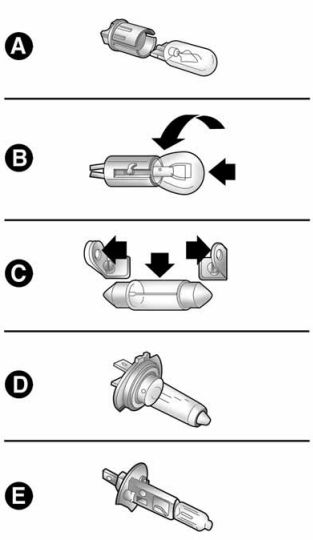

A – All glass bulbs: clipped into place. Pull to extract
B – Bayonet bulbs: to remove this type of bulb from its holder, press the bulb and turn it anticlockwise
C – Cylindrical bulbs: release from the contacts to extract
D – Halogen bulbs: release the fastening clip from the corresponding seat to remove the bulb
E – Halogen bulbs: release the fastening clip from the corresponding seat to remove the bulb.
| Bulb | Type | Power | Figure |
| Front side lights/Daylight lights | W21/5W | 5/21W | A |
| Rear side lights | LED | — | — |
| Dipped beams | H7 | 55W | D |
| Main beams | H7 | 55W | D |
| Dipped beams/Main beams (versions with Bi-xenon headlights) (where provided) | F | D1S | — |
| Front direction indicators | WY21W | 21W | B |
| Rear direction indicators | P21W | 21W | B |
| Side direction indicators | W5W | 5W | A |
| Brake light | LED | — | — |
| 3rd brake light | LED | — | — |
| Number plate light | W5W | 5W | A |
| Fog lights | H1 | 55W | E |
| Rear fog lights | P21W | 21W | B |
| Reversing light | P21W | 21W | B |
| Front courtesy light | C10W | 10W | C |
| Luggage compartment courtesy light | w5W | 5W | A |
| Glove compartment courtesy light | C5W | 5W | C |
| Door lights | W5W | 5W | A |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
